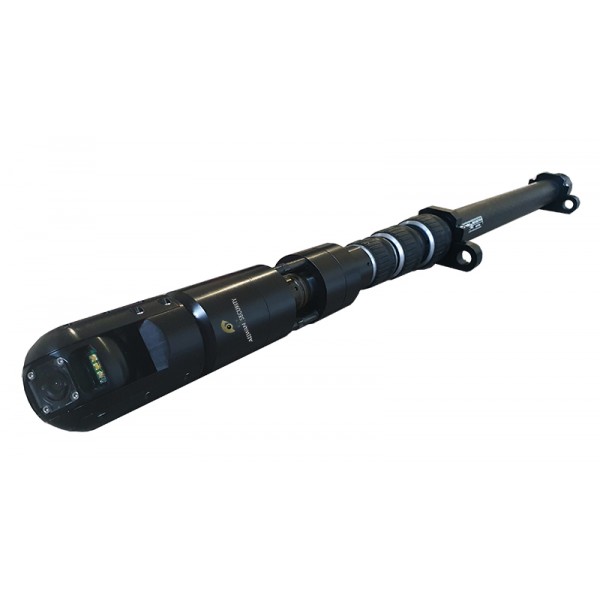

Camera Pan Tilt
360 ° horizontal motorization without stop
Vertical motorization -110 ° ~ + 110 °
White or 850 nm infrared lighting
Lighting distance 8 meters
Vision distance 20cm to infinity
OFDM video transmission
Battery life >4 hours
Reception on Smartphone or Android or iOS tablet
IP68 sealing 2 bar
Diameter 45 °
Rugged Wireless and cable receiver
Wireless OFDM encypterd AES
Keyboard Pan Tilt
7 inch touch LCD HD 1080p
Battery life > 4 hours
Length 78 cm folded 215 cm deployed
PELI transport case
HPX resin waterproof case
Ultra shock resistant
Vortex decompression valve
Visiopole 2000 / 4000 Perche télescopique
Length 78 cm folded 2.15 m deployed
Length 103 cm folded 470 cm deployed
Customisable for another length
Option: insulated telescopic pole 66KV Conform CEI 61235
Quick clamping version by clamp:
Visiopole_RTX Receiver Tablet with PTZ and light commands
Color sensor 2 Mégapixels TVI white Highlight Ø 50 mm IP68
Monochrome sensor 2 Mégapixels TVI ilmluminator IR940nm invisible Ø 50 mm IP68
Thermal sensor / thermographic FLIR 160 x 120 Ø 50 mm
Xgrip-Clamp quick fixing for smartphone
BQVISIO crutches 90° to get as close as possible to the windows and avoid reflections :
Cable 10~40 meter
Battery & transmitter :
Visiohand PTZ Joystick:
Lighting control and Pan Tilt rotation
Quick fixing and adjustment on telescopic pole with clamp
Handle PTZ control:
Visiohand 720p monitor control :
NANUK995V Transport case:
Peli case with waterproof HPX resin shell
Ultra shock resistant
Manufacturer ALLWAN SECURITY
Customisation is possible
