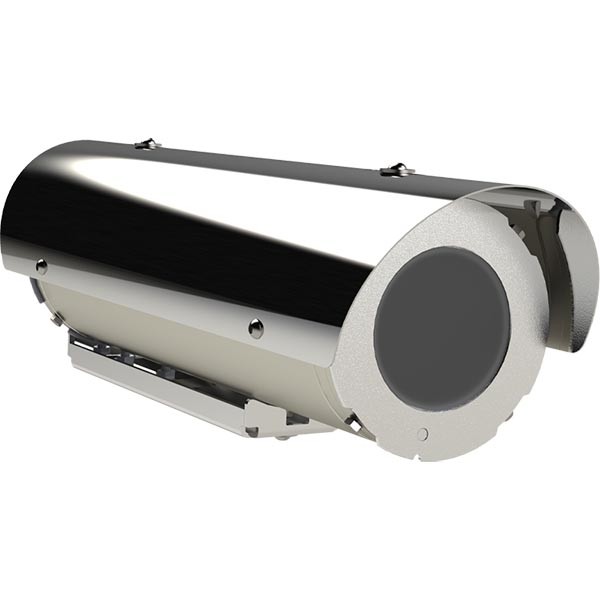

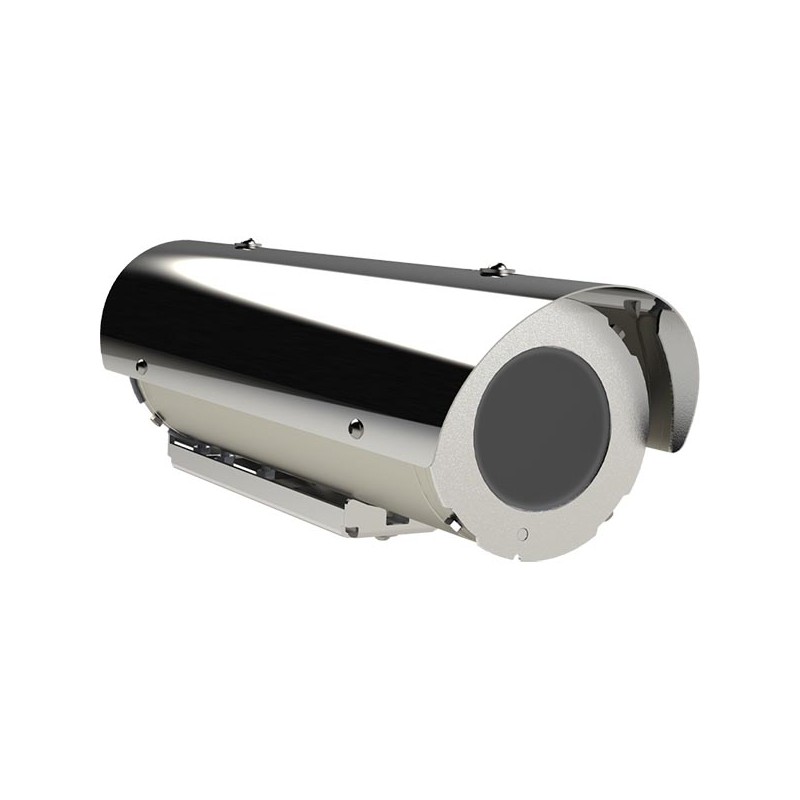

130SATH640 Marine stainless‑steel thermal IP camera
New product
The 130SATH640 is an all‑stainless‑steel thermal camera specifically developed for marine applications and harsh environments
Description
Technology and Application Fields
The 130SATH640 camera is equipped with the latest generation of VOx LWIR 17 µm thermal IP microbolometer.
With a 640×512 resolution, it includes a sunshield and built‑in heater to ensure perfect visibility with no condensation.
It supports multi‑stream H.264 / MJPEG, is OnVif‑compliant, and works with most NVRs and VMS on the market.
The 130TH640 is the ideal solution for monitoring:
- Offshore wind farms
- Ships
- Ports
- All types of harsh onshore and offshore environments
Key Features
100% AISI 316L stainless‑steel construction
LWIR thermal sensor 640×512, 9 Hz or 30 Hz
NDAA compliant
OnVif
Wide choice of lenses depending on the application
Germanium window
IP66 / IP67 waterproof rating
Options: internal fiber‑optic converter, IP‑over‑coax converter, and direct 120 VAC or 230 VAC power supply
| Camera type | Thermal fixed |
| Material | SST 316 |
| Resolution | 640x512 |
| Ingress Protection | IP65 |
| Ingress Protection | IP67 |
| Ingress Protection | IP66 |
| Cable length | Sold separately |
| Built-in illuminator | Without |
| Video Signal | IP OnVif |
| Power Supply | 24VDC |
| Power Supply | 24VAC |
| Power Supply | 230VAC |
| Power Supply | POE 48V 802.3 |
| Power Supply | 110VAC |
