UW-3200HD Stainless Steel Camera IP68 AHD/CVI/TVI/CVBS
New product
UW-3200HD: Professional Marine Camera IP68 with White LEDs
The UW-3200HD is a Full HD camera crafted from 316L stainless steel, offering excellent resistance to corrosion in marine environments or aggressive agents like cutting oils, hydrocarbons, and chlorine. Suitable for video surveillance on boats, industrial sites, machining processes, and outdoor applications. It features powerful, deactivatable white LED lighting with a maximum range of 10-15 meters.
Description
Stainless Steel Anti-Corrosion Mini Camera
The UW-3200HD from ALLWAN SECURITY is a reinforced small stainless steel camera designed to withstand impacts and corrosion caused by harsh chemicals or marine spray.
Equipped with powerful white LED lighting, it provides visibility in the dark up to 10 meters.
This camera is widely used in industry due to its reinforced stainless steel body and corrosion resistance.
Applications
Industry
Widely used in industry, it facilitates process control, production lines, and ensures smooth operations.
Machining
With IP68 waterproofing, it is ideal for monitoring CNC milling machines and preventing accidents, thanks to optional recording systems.
Nuclear
Its stainless steel body and waterproofing make it a preferred choice for nuclear subcontractors, appreciated for both its mechanical and imaging qualities.
Marine
Naturally, the stainless steel 316 body makes this camera an ideal security companion for outdoor surveillance or in engine rooms.
Technical specifications
- Excellent Full HD 1080p resolution
- White lighting up to 10-15 meters, 90° field of view
- Video signals AHD, CVI, TVI, and standard analog CVBS PAL
- Waterproof IP68
- 15 powerful white LED lights
- Extreme sensitivity of 0.001Lux
- Power supply: 9~12VDC
- Diameter: 39mm (head); 45mm (base, excluding mounting)
- High-quality machined stainless steel 316 body
- Cable output choices: standard, gland, connector
- Weight: 600g
| Camera type | Fixed |
| Video Signal | AHD |
| Video Signal | CVI |
| Video Signal | TVI |
| Video Signal | Analogue CVBS |
| Resolution | 1920x1080 Full-HD |
| Material | SST 316 |
| Ingress Protection | IP68 |
| Cable length | 20m |
| Built-in illuminator | White Leds |
| Power Supply | 12VDC |
17 other products in the same category
ALLWAN MARINE CAMERAS
GCVF20 / GCVF80 Fixed SST camera 2Mp / 8Mp
Marine IP Surveillance Camera for Ships at Sea Built with a very robust construction, these two cameras provide reliable, secure surveillance (NDAA) with clear images, thanks to the integrated front-facing heater, preventing internal fogging in cold or humid weather. The GCVF20 camera has a 2-megapixel resolution, while the GCVF80 features an...
ALLWAN MARINE CAMERAS
GCVF20FIRE 2Mp SST Camera | Flame Detection...
Industrial Network Marine Camera with Flame Detection Sensor Perfectly suited for marine environments and industries such as foundries, sensitive sites, the GCVF20FIRE camera is not only Full-HD and made of 316L stainless steel but also features advanced flame detection. Its integrated dual IR sensor can detect any flame over an 80° angle.
ALLWAN MARINE CAMERAS

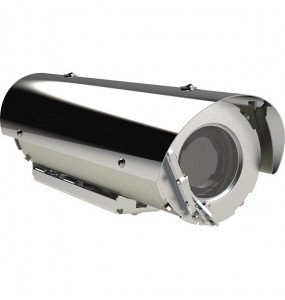

130SA4K Marine 4K Zoom Surveillance Camera
