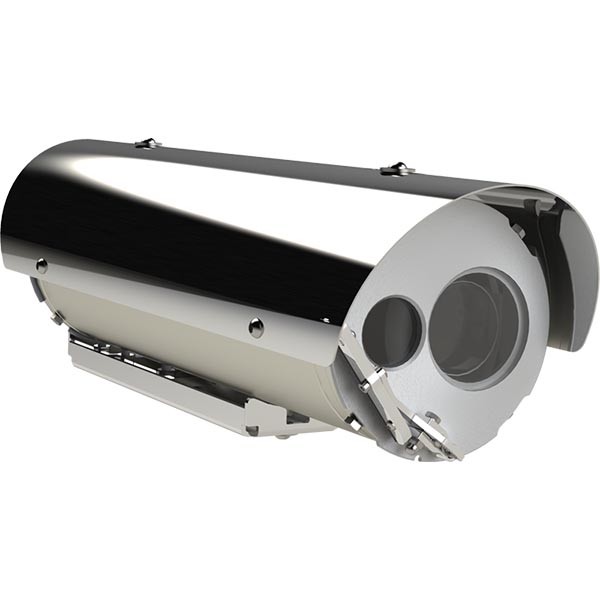

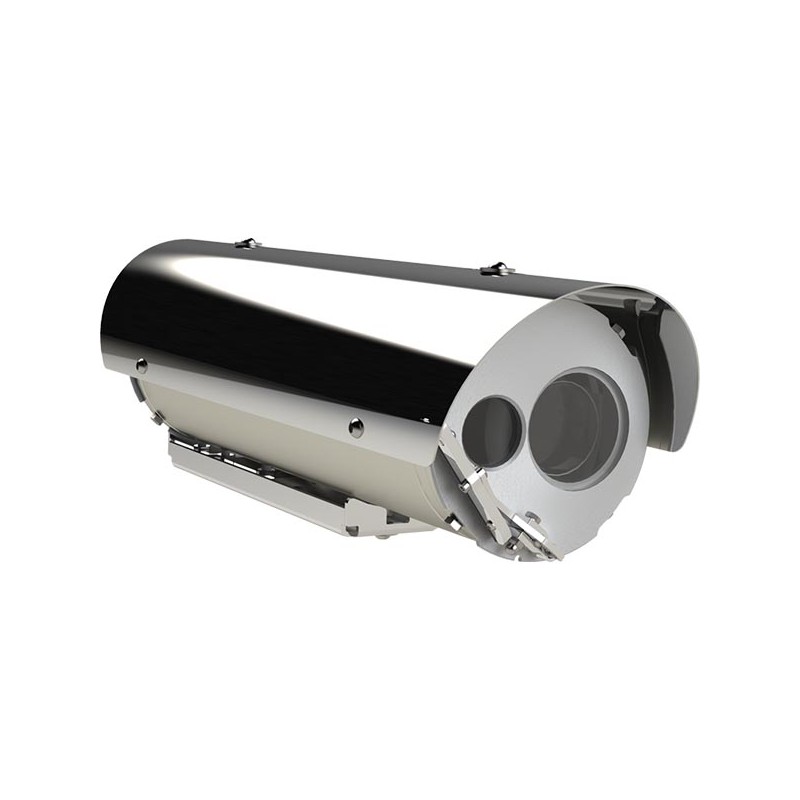

132SADUAL Marine Dual IP Day and Thermal Camera

Description

Technology and Fields of Application

The 132SADUAL camera is equipped with the latest generation of Day cameras, featuring a 5MP sensor and a 32x autofocus optical zoom, alongside an innovative IP VOx LWIR 17µm microbolometer thermal sensor. With a 640x512 resolution, it includes an integrated sunshield and heater for perfect vision without condensation. It supports multi-stream H264 / MJPEG and is ONVIF compliant, ensuring compatibility with most NVRs and VMS on the market.

The 130SATH640 is the ideal solution for monitoring:

• Offshore wind farms

• Vessels/Ships

• Ports and harbors

• All types of harsh land and offshore environments

Key Features

• 100% AISI 316L Stainless Steel construction

• LWIR 640x512 thermal sensor (9Hz or 30Hz)

• 5MP Day sensor equipped with a powerful 32x optical zoom

• ONVIF compliant

• Wide selection of lenses depending on the application: from 90° wide-angle to 16° narrow-angle thermal FOV

• IP66 / IP67 waterproof rating

• Options: Wiper, internal fiber optic converter, IP-over-coaxial converter, and direct 120VAC or 230VAC power supply

• Wide operating temperature range: -50°C to +60°C (supports peaks up to +75°C)
