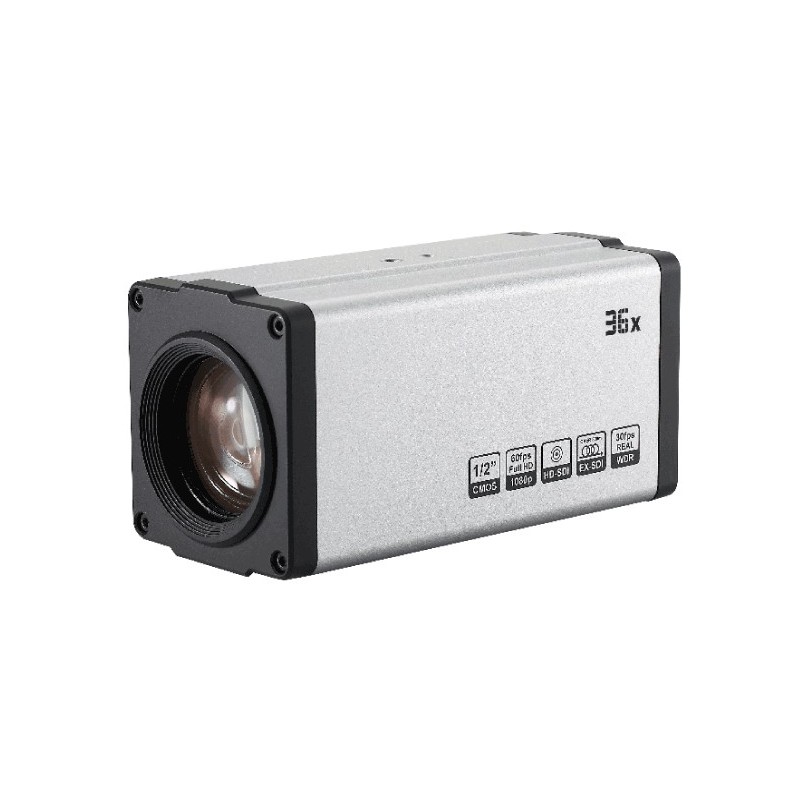

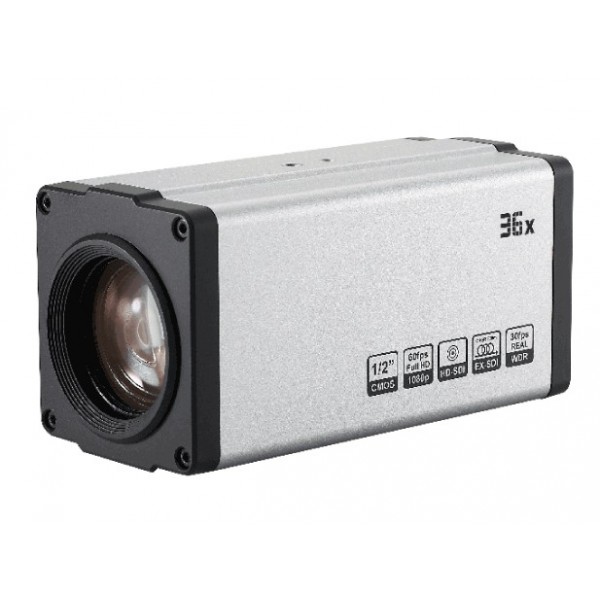

MB-S369 / S368 Camera 2MP x36 AF HD-SDI

New product

Quotation

Sony CMOS Sensor 1/2 "Image Sensor Camera HD-SDI, EX-SDI, TVI, CVBS
Optical Zoom 36x Digital image stabilization. Privacy mask function
High light compensation. Motion detection.

More details

Characteristics
OSD menu
Day & night auto / day / night / ext-int
WDR / BLC OFF / WDR / BLC / HLC
ACE OFF / low / medium / high
DNR auto / off / low / medium / high
Fog off / on (auto / manual)
Image stabilization off / on
Motion detection off / on (3 positions)
Privacy mask disabled / enabled (24 positions)
Digital Shutter slow OFF / x2 / x4 / x8 / X16 / x32 OFF / x2 / X4
Gain control 0 ~ 10 steps off / on
Auto White Balance / One Push / Manual / Indoor / Outdoor
Shutter speed 1/30 (25) ~ 1/60000 sec 1/30 (25) ~ 1/30000 sec
E. Zoom OFF / x2 ~ x32
Image Reversal Off / H / V / H & V

Camera

Sony CMOS Sensor 1/2 "Image Sensor
Total pixels 1952 (H) x 1113 (V) = 2.17 M pixels 1952 (H) x 1241 (V) = 5, 5m pixels
Active pixels 1937 (H) x 1097 (V) = 2.12 M pixels 1937 (H) x 1097 (V) = 2.12 M pixels
1080p video format @ 60 / 50fps, 1080i @ 60 / 50fps, 1080p @ 60 / 50fps, 1080p @ 30 / 25fps,
1080p @ 30 / 25fps, 720p @ 60 / 50fps, 720p @ 60 / 50fps, 720p @ 30 / 25fps
720p @ 30 / 25fps
Minimum lighting - Color 0.01 Lux / DSS 0.001 lux 0.15 lux / DSS 0.0375 Lux
BW 0.002 Lux / DSS 0.0002 lux 0.01 Lux / DSS 0.002 Lux
Ratio S / N over 50dB (AGC disabled)
HD-SDI, EX-SDI, TVI, CVBS video output

Lens

X36 lens day / night zoom
Optical x36 zoom ratio, digital zoom x32
Focal length f = 6.0 mm ~ 216.0 mm
Opening Ratio F 1.5 (Wide) ~ F 4.8 (Tele)
Angle of view (D, H, V)
LARGE 63.31 ° 56.5 ° 33.63 °
TELE 2,44 ° 2,12 ° 1,19 °

General

DC12V power source ± 10%
Power consumption max 500mA
Operating Temperature-10 ° C ~ + 50 ° C / 0% ~ 90% RH
Dimensions 72.6 (W) x 80 (H) x 162.5 (D) mm
Weight 0.82 kg
