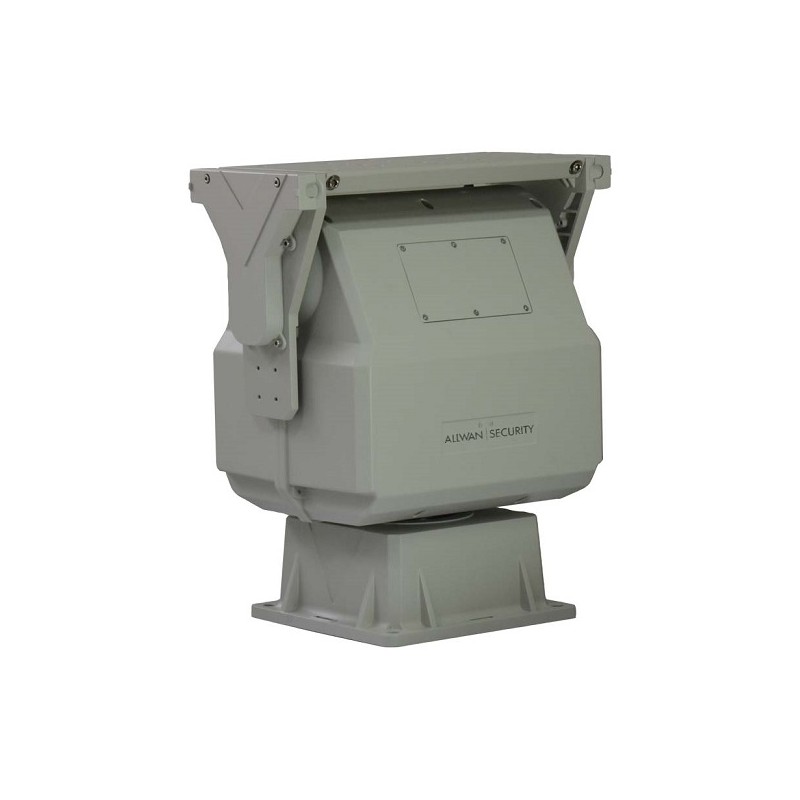

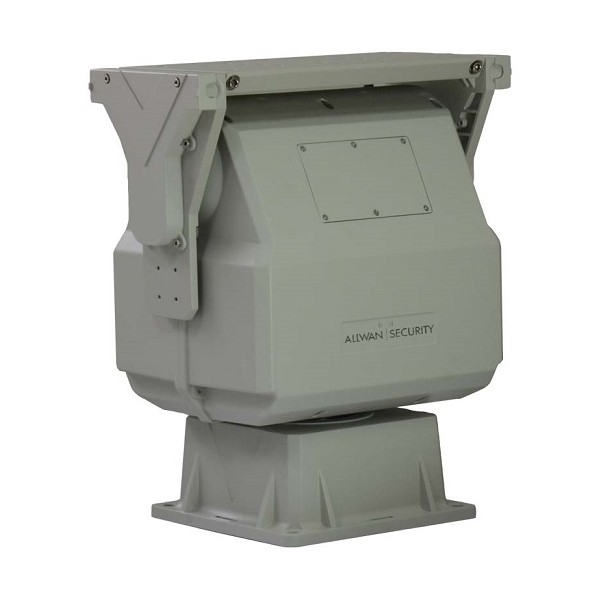

AL650PTURX - Heavy load 50Kg motorized pan tilt

Pan-Tilt Turret with RS485 Controllable Motors

Designed for heavy equipment with a payload of up to 50 kg or 80 kg, this turret is smooth, progressive, and precise.

Its built-in slip ring allows continuous 360° horizontal rotation.

Vertical tilt offers a range of ±45° relative to the horizontal plane.

Rated IP66, it is built for indoor or outdoor use and suited for industrial applications.

This pan-tilt motor provides multiple positioning options such as preset management, scanning, touring, and more.

To meet most environmental scenarios, our turret operates from –35 °C to +65 °C.

Technical Specifications

Models

• AL-650PTURX : 50 kg payload

• AL650PTURX-C : 80 kg payload

Technical Details

• Use: Indoor / outdoor, IP66 / NEMA 4X
• Construction material: Aluminum alloy
• Finish: Beige polyester powder coating
• Power supply: 48 V DC
• Maximum power consumption: 200 W
• Horizontal rotation speed: 0.01° to 60°/s (AL650PTURX) and 0.01° to 15°/s (AL650PTURX-C)
• Vertical rotation speed: 0.01° to 30°/s (AL650PTURX) and 0.01° to 7°/s (AL650PTURX-C)
• Horizontal rotation range: Continuous 360°
• Vertical rotation range: ±45° (90° total)
• Positioning accuracy: ±0.1°
• Operating temperature: –35 °C to +65 °C
• Presets: Up to 200
• Position feedback: Yes, via Pelco QUERY commands
• Communication protocol: Pelco-D, Pelco-P
• Communication speed: 2400 / 4800 / 9600 / 19200 bps
• Dimensions: 342 × 403 × 224 mm
• Weight: 25 kg

More details can be found in the downloadable datasheet.
