FumexProHD - Compact and portable Chimney inspection video tool

Description

Robustness. Precision. Mobility.
Discover the FumexProHD, the professional inspection camera developed by Allwan Security, specially designed for the visual analysis of chimneys, ventilation ducts, and hard-to-access pipelines. Compact, high-performance, and fully autonomous, it is the ideal tool for chimney sweeps, HVAC technicians, property inspectors, and industrial maintenance professionals.

Equipped with a 45mm stainless steel HD camera head, powerful LED lighting, and an 8-inch screen with an integrated recorder, the FumexProHD provides ultra-precise visualization, even in the darkest and most confined environments. Its flexible cable and reinforced carrying case make it a mobile solution, ready to use on all your job sites.

Advantages

• HD Quality: High-definition color sensor for detailed inspections

• IP68 Waterproof: Ideal for dusty or humid environments

• 6-7 hours of battery life: Long-lasting lithium battery for a full day of operation

• Built-in Recording: Video, photo, and audio storage directly on an SD card

• Total Mobility: Robust carrying case, manual reel, all-in-one design

The FumexProHD is more than just a camera; it's a reliable partner for all your technical diagnostics.

Kit Contents

• FumexProHD Camera Ø45 mm

• 8-inch HD Monitor with integrated recording

• 20m Flexible Cable

• Manual Reel with built-in battery-powered screen

• Rechargeable 12V 7000mAh Battery with charger

Technical specifications

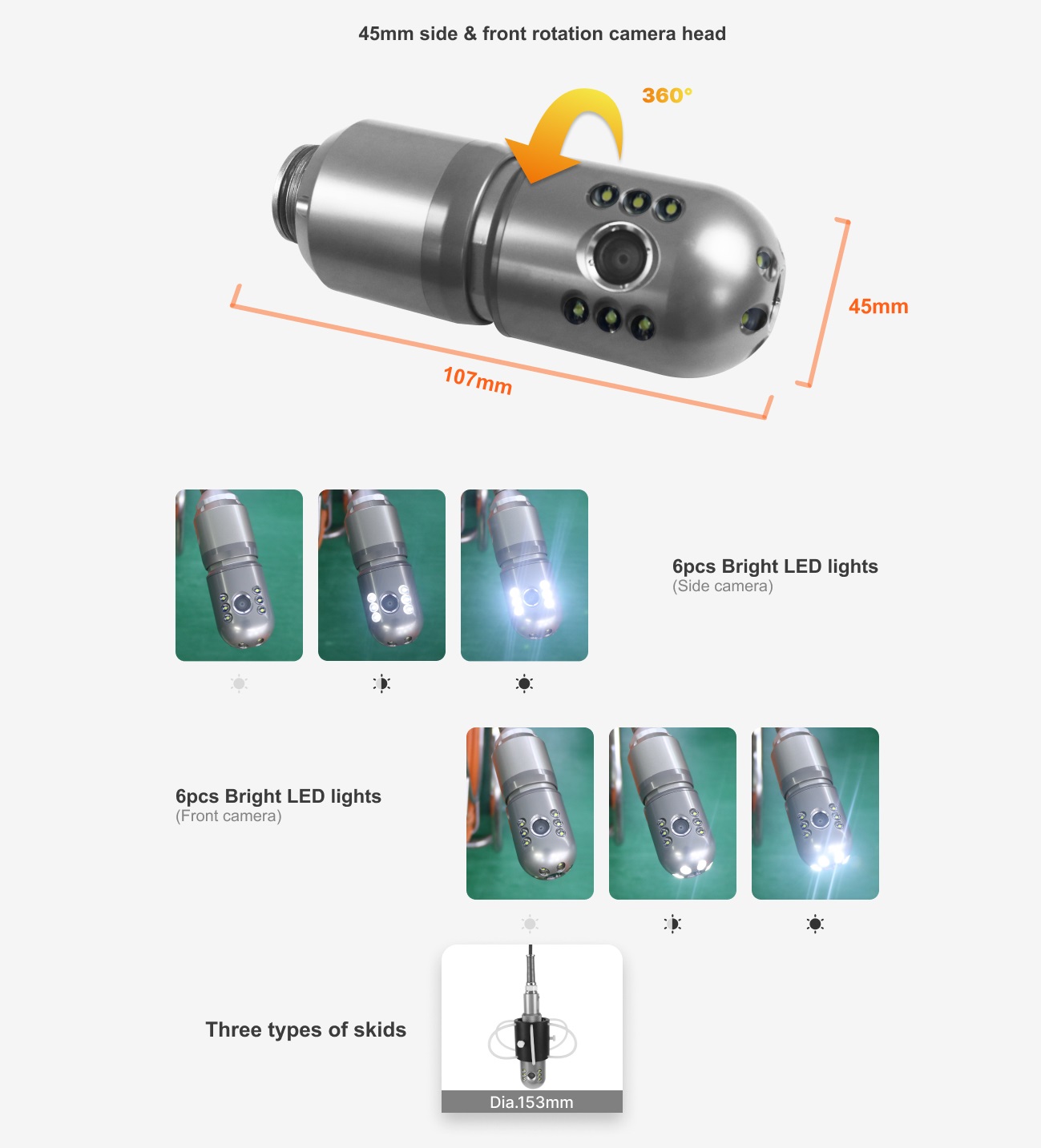

Rotating Dual-Angle Camera

The camera head, just 45mm in diameter, features two optics to control both the axis and sides of the duct for better defect detection.

The 360° horizontal motorized rotation allows you to inspect the entire perimeter of the chimney tube.

Dimensions	45 mm x 107 mm
Resolution	Sensor 1/3" CMOS, 1.3 MP
Waterproof	IP68 (can work underwater)
Filed of view	120°
Lightning	6 adjustable LEDs (down and side view)
Connector	Detachable connection for cable reel
Material	Sapphire glass window and stainless steel housing

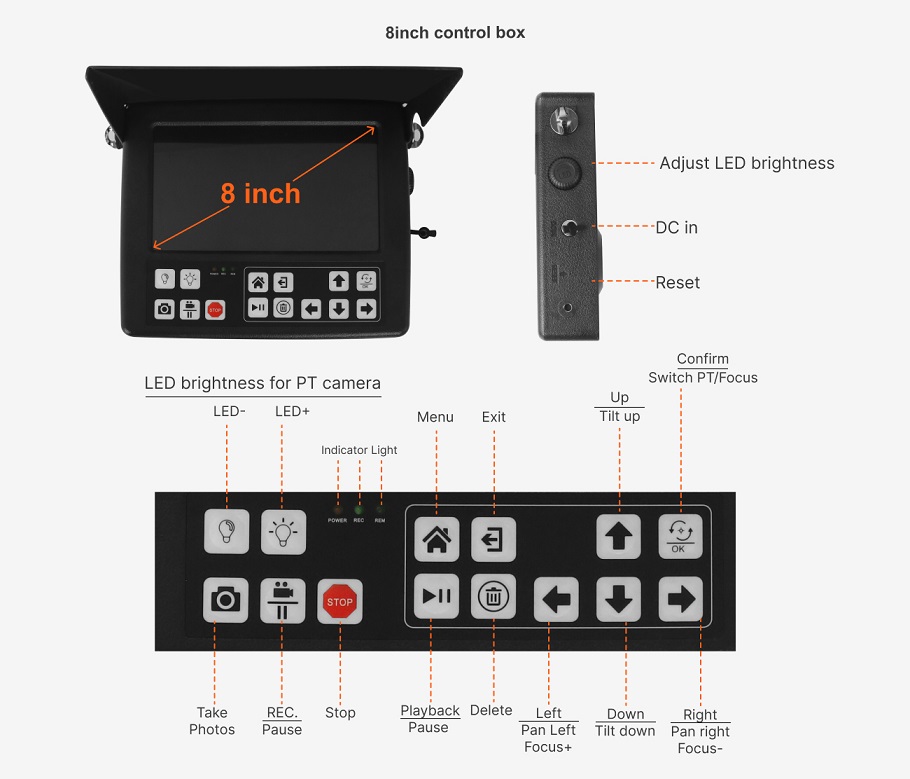

Screen and Video Control

Designed for ease of use and easy transport, the 8" screen offers excellent brightness, and its sunshade ensures clear video viewing even outdoors.

The intuitive buttons provide quick and easy operation.

Display size	LCD IPS HD 8" 1280x720
Waterproof	Only the buttons
Functions	Recording of video, audio and pictures
Meter counter	Yes with OSD display
Battery	Li-ion 7000 mA
Battery level indicator	YES

Integrated Manual Reel

The integrated reel is a cased manual cable winder, designed to guide the cable smoothly during inspection and retraction, without having to worry about proper alignment. The cross-shaped black handle allows for easy unwinding and rewinding of the cable, even while wearing gloves.

The side bracket stores and protects the camera head, making it possible to carry the entire system with one hand—ideal for climbing onto residential or industrial building roofs with ease.
