Pipe Inspection Camera : Motorized head - TubexProHD

Description

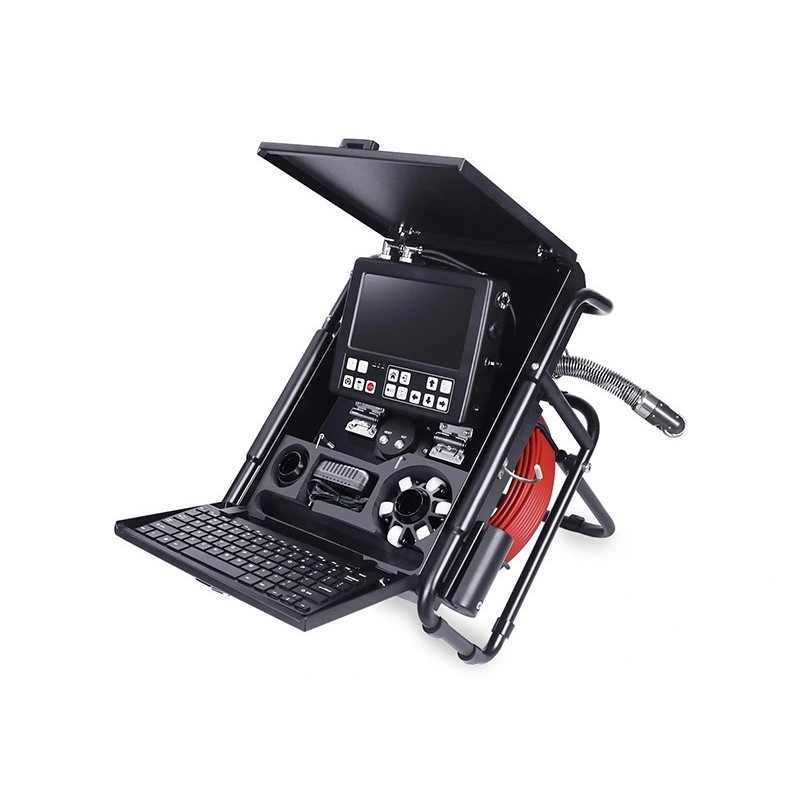

TubexProHD Rotating Inspection Camera – Versatile, Precise, and Rugged for Professional Use

The TubexProHD is an ultra-compact, high-performance pipe inspection camera specifically designed for demanding environments. Its rotating head, just 33 mm in diameter, easily fits into narrow ducts while providing a panoramic view with 360° pan and 180° tilt capabilities.

Tailored for professional use, this camera is perfect for inspecting wastewater systems, underground networks, and technical ducts. Its manual focus system ensures optimal sharpness at various depths and distances.

Applications

• Inspection of wastewater pipes, stormwater drains, or technical networks

• Detection of leaks, clogs, corrosion, collapses, or structural damage

• Locating the position and depth of buried pipelines

• Condition assessment of internal coatings

• Preparation for network maintenance or rehabilitation

Advantages of the TubexProHD

• All-in-one design: easy to transport and operate

• Exceptional HD image quality for precise diagnostics

• Ultra-compact rotating head: fits into narrow diameters

• Live text input for customized professional reports

• Rugged build for harsh on-site conditions

Technical Highlights of the TubexProHD

Extended Inspection Range

The TubexProHD can inspect pipes from Ø40 mm up to approximately Ø200 mm, depending on the network type. Its compact rotating head and wide field of view ensure accurate inspections even in tight conduits.

Bend Navigation

Thanks to its flexible design, the TubexProHD can navigate 90° bends in pipes as small as Ø80 mm. It is ideal for complex residential systems, winding drainage lines, and crowded utility conduits.

Built-in 512Hz Locator Sonde

The camera head includes an integrated 512Hz transmitter, compatible with most surface locators, allowing users to pinpoint the camera’s underground position—essential for targeted interventions.

IP68 Waterproof to 2 Bar

Designed for extreme environments, the TubexProHD camera head is IP68-rated and waterproof up to 2 bar (20 meters deep). It withstands extended submersion in wet or flooded conditions.

40-Meter Reinforced Push Cable

Equipped with a 7 mm fiberglass push rod and 40 meters of cable, the system is mounted on a durable, compact reel. The integrated digital meter counter displays distance directly on the control screen.

Video Recording and Integrated Comments

The TubexProHD records full HD 1080p videos, captures still images, and allows real-time voice and text annotations. This enables the creation of directly usable inspection reports—no post-processing required.

Precision Manual Focus

The camera is equipped with a manual focus adjustment to deliver sharp images based on the object’s distance. This ensures optimal visibility of cracks, intrusions, or foreign objects.

Technical Specifications

Ø33 mm Rotating Camera Head

• 1/3" CMOS sensor, 4MP, Full HD AHD quality

• IP68 waterproofing for safe submersion

• Manual focus lens

• Viewing angle: 120°

• Pan: 360°, Tilt: 180°

• Adjustable high-intensity LEDs

• Rugged design: sapphire glass + stainless steel

DVR Control Unit with Integrated Screen

• 8" IPS HD screen (1280 x 720)

• Video, photo, and audio recording

• USB wireless keyboard for real-time text input

• Integrated digital meter counter (<1% error margin)

• Built-in 7000mAh Li-ion battery for extended use

• Waterproof control panel

Reinforced Push Cable on Reel

• 7 mm fiberglass cable

• Length 40m

• Distance counter displayed on screen

• Detachable aviation-style connector
