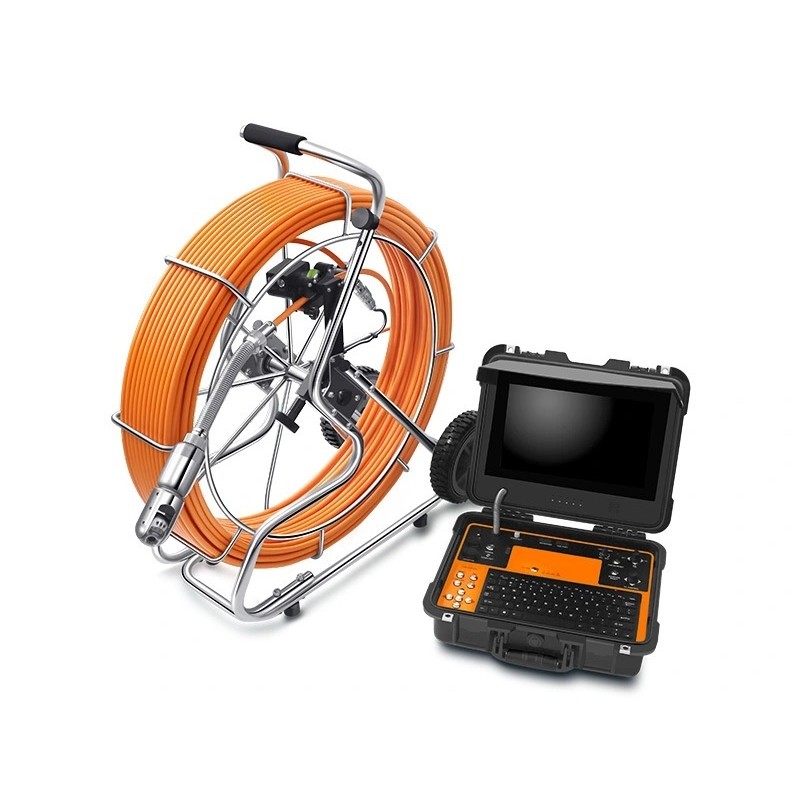

TubexProMax – Steerable Pipe Inspection Camera with 60m or 120m Cable

Description

TubexProMax Rotating Inspection Camera – Professional Performance for Demanding Pipe Networks

The TubexProMax is a comprehensive inspection camera system designed for demanding professionals. Equipped with a high-definition rotating head mounted on a reinforced semi-rigid push rod, it offers a robust, precise, and intuitive solution for inspecting pipes from Ø60 mm to Ø800 mm, with 90° bend navigation starting from just 120 mm in diameter.

Thanks to its motorized pan/tilt head and high-intensity LED lighting, the TubexProMax ensures optimal visibility even in dark, dirty, or submerged environments.

Recommended Applications

• Inspection of sewer, stormwater, or industrial networks

• Detection of structural defects: cracks, blockages, infiltrations

• Precise location of underground pipes (with integrated 512 Hz sonde)

• Pre-rehabilitation or maintenance inspection

• Professional inspection reporting

Key Advantages of the TubexProMax

• 360° / 180° rotating inspection for a complete view inside the pipe

• Full HD AHD image quality with high-resolution CMOS sensor

• Durable stainless-steel construction with sapphire glass lens

• Integrated 512 Hz sonde for accurate head location

• Video, audio, photo recording, and real-time text overlay

• Available lengths: 60 m or 120 m – suitable for long-range inspections

• Pipe inspection from Ø60 mm to 800 mm

• 90° bend navigation from Ø120 mm

TubexProMax Hardware Highlights

Long-Distance Inspection

The TubexProMax efficiently inspects pipes from Ø60 mm to Ø800 mm, thanks to its compact motorized head and wide 120° field of view. It is suitable for both small collectors and large-diameter networks.

Bend Navigation

With its optimized design and flexible reinforced push rod, the TubexProMax can navigate 90° bends in pipes as small as Ø120 mm, making it ideal for inspections in complex or winding networks.

Integrated 512 Hz Location Sonde

The rotating head features a built-in 512 Hz sonde, compatible with most surface locators. It provides precise positioning of the camera head in the network—an essential benefit for trenchless diagnostics.

IP68 Waterproofing up to 10 Bar

Engineered for extreme environments, the TubexProMax head is IP68-rated and pressure-resistant up to 10 bar, allowing safe immersion to depths of up to 100 meters. Perfect for flooded or water-saturated systems.

Reinforced Video Push Rod – 60 or 120 m

The system features a reinforced fiberglass rod (9 mm for 60 m / 11 mm for 120 m), mounted on a sturdy reel with integrated metric counter for smooth and accurate feed.

Complete Recording & Live Annotation

TubexProMax allows full 1080p video recording, HD photo capture, and live audio/text commentary. This enables instant generation of professional reports with no need for post-processing.

Optimized Focus

Focus can be adjusted manually, ensuring image sharpness at any viewing distance. This makes it easier to identify defects such as cracks, infiltrations, deformations, or blockages.

Technical Specifications

Rotating Camera Head (Ø50 mm)

• Motorized 360° pan and 180° tilt

• 1/3" CMOS sensor, 1080p AHD resolution

• IP68 waterproof up to 10 bar

• Viewing angle: 120°

• Lighting: 6 ultra-bright white LEDs, adjustable intensity

• Materials: stainless steel + sapphire glass, reinforced for shock and scratch resistance

• Integrated 512 Hz location sonde

DVR Control Unit

• 13-inch HD color display, real-time viewing

• Video, photo, and audio recording, direct text overlay on video

• Intuitive interface with wireless USB keyboard

• Integrated digital metric counter

• Rechargeable 8800mAh Li-ion battery (extended runtime)

• USB port and SD card slot for quick file export

Reel and Video Cable

• Reinforced fiberglass push rod: 9 mm (60 m) or 11 mm (120 m)

• Available lengths: 60 m or 120 m

• Mounted on rugged reel with detachable connector

• Integrated metric counter, displayed on control unit and video overlay

• Non-slip structure suitable for construction sites
