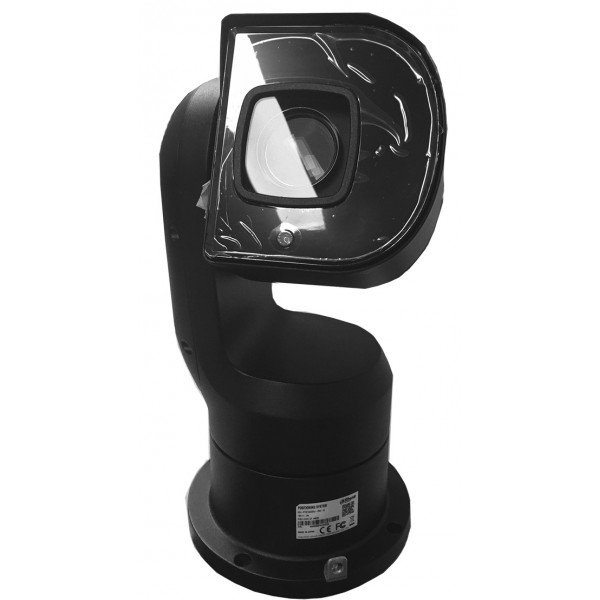

DH-PTZ1A225U - PTZ Network Camera Starlight IR 2MP Zoom 25x

New product


Starlight IR PTZ Network Camera. STARVIS ™ CMOS 1 / 2.8 inch. Powerful 25x optical zoom. Starlight Max Technology. 50 / 60fps @ 1080p. Automatic tracking and IVS
Supports PoE +. IR distance up to 150 meters. IP67 waterproof case, IK10

More details

Featuring powerful optical zoom and accurate pan / tilt / zoom performance, this camera provides an all-in-one solution for long distance video surveillance captures in outdoor applications. Together with infrared, starlight lighting technology, this camera is the ideal solution for dark and low light applications. The series combines a day / night, mechanical IR cutoff filter for optimum image quality in variable lighting
during the day and True WDR for applications with direct access (sunlight or glare).

Starlight Technology
For difficult low-light applications, this technology offers unparalleled light sensitivity, capturing low-light color detail down to 0.005 lux. The camera uses a set of optical characteristics to balance the light throughout the scene, giving clear images in dark environments.

Wide dynamic range
Thanks to the wide dynamic range (WDR), a camera produces vivid images, even in the most intense contrasts.
For applications with bright, low light conditions True WDR (120 dB) optimizes both the brightness and dark areas of a scene to provide a responsive video.

This function controls the pan / tilt / zoom actions of the camera to automatically follow the moving target and keep it in view. The tracking action can be triggered manually or automatically. Once the program is set, the camera can zoom in and track the target automatically.

Smart H.265 +
Smart H.265 + is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, a dynamic GOP, a dynamic ROI, flexible multi-image reference structure and intelligent noise reduction for broadcast high quality videos without overloading the network. H.265 + technology reduces throughput and storage requirements by up to 70% over standard H.265 video compression.

PFA technology
PFA technology has innovatively introduced new judgment methods that ensure the accuracy and predictability of the subject's direction (distance adjustment). The result is a set of advanced focus algorithms. PFA provides clarity of the image throughout the zoom process.

Protection class
This camera complies with the ONVIF standard and operates in extreme temperature environments for use at temperatures from -40 ° C to 70 ° C (-40 ° F to + 158 ° F) with 95% humidity. The camera complies with vandal resistance IK10 impact index. Subject to rigorous immersion tests in dust and water to achieve IP67 protection for demanding outdoor applications. The camera supports an 8KV lightning index for effective and optimal protection.

STARVIS ™ 1 / 2.8 "CMOS Image Sensor
Effective pixels 1920 (H) x 1080 (V), 2 Megapixels
Minimum lighting color: 0.005Lux@F1.6; B / W: 0.0005Lux @ F1.6; 0Lux@F1.6 (IR enabled)
IR distance: up to 150 m (4 leds) Auto / Manual
Focal length: 4.8mm ~ 120mm Max. F1.6 ~ F4.4 aperture
Angle of view: H: 62.8 ° ~ 2.6 °
Optical Zoom: 25x Auto / Manual Focus
Focus distance: near 100mm ~ 1500mm
Pan / Tilt Range: Pan: 0 ° ~ 360 ° Endless; Tilt: -90 ° ~ 90 °, Effective Angle: -51 ° ~ 90 °, Auto Turning 180
PTZ mode: 5 patterns, 8 turns, auto pan, auto scan, 8 turns, auto pan, auto scan
Event Trigger: Motion Detection, Video Alteration, Scene Change, Network Disconnect, Conflict IP Address, Illegal Access, Storage Anomaly
Automatic tracking support
IVS: Tripwire, Intrusion, Abandoned / Missing
Advanced Intelligent Features: Face Detection, Thermal Card
Video Compression: H.265 + / H.265 / H.264 + / H.264
Resolution: 1080P (1920 × 1080) / 1.3M (1280 × 960) / 720P (1280 × 720) / D1 (704 × 576/704 × 480) / CIF (352 × 288/352 × 240)
Auto Day / Night (ICR) / Color / B / W
Gain Control Auto / Manual
Noise Reduction: Ultra DNR (2D / 3D)
Network: RJ-45 Ethernet (10Base-T / 100Base-TX)
Protocol: IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Hello , 802.1x
Interoperability: ONVIF Profile S & G, API
Power supply: DC12V / 4A, PoE + (802.3at)
Power consumption: 22W (IR on)
Terms of use: -40 ° C ~ 70 ° C / less than 95% RH
Degree of protection: IP67; IK10 Vandal Resistance
Case: Metal
Dimensions: 291.5 x 161 x 153.4 (mm)
Net Weight 3.6kg
