VisioHEAD-DN Mini pan tilt camera head
New product

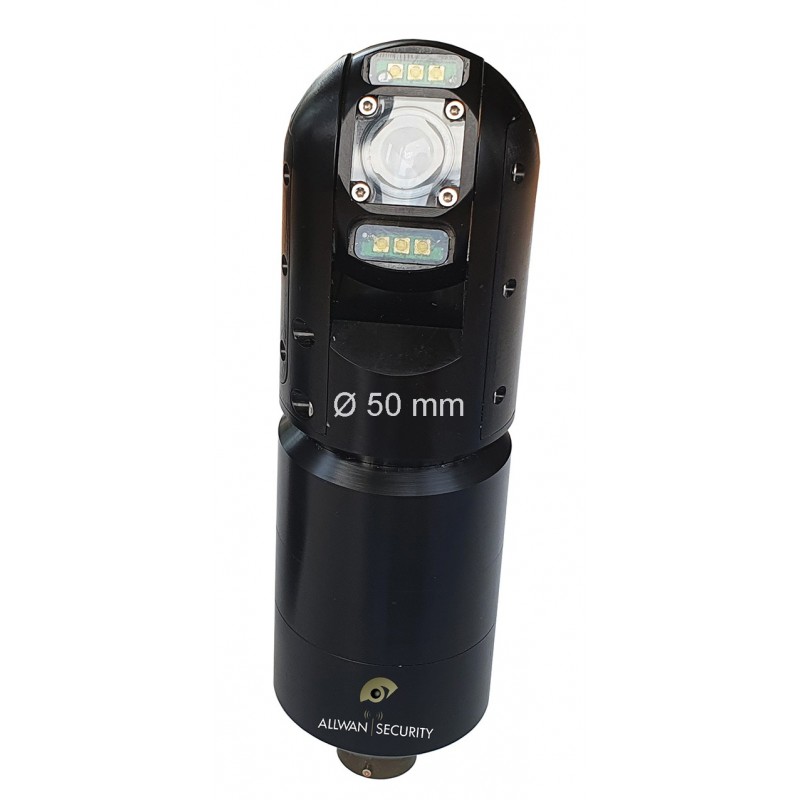

Mini Pan/Tilt Rotating Camera, 50mm Diameter
Ideal for inspection applications in industry and nuclear environments.
Controlled via RS485 Pelco-D, with white LED lighting.
Video signal: AHD 1080p or analog PAL.
Description
Mini rotating video camera head for horizontal and vertical movement, made in France by ALLWAN SECURITY.
This motorized inspection mini-camera is waterproof (IP67/IP68) and features integrated white LED lighting.
With a diameter of only 50mm, it is ideal for inspections in confined industrial environments or the nuclear sector.
It is controlled via RS485 using the Pelco-D protocol.
The lighting intensity is adjustable through Preset commands.
By default, the VisioHead-DN is made of black anodized aluminum and Delrin. It can be supplied in 316L stainless steel upon request.
Powerful white lighting, adjustable 4 levels.
Technical Specifications
- Lens: 2.8mm wide-angle, sharp image from 15cm to infinity – Special focus adjustment possible in our workshop, contact us for details
- Video signal: AHD 1080P @ 25 frames per second, or optional analog PAL
- Rotation: 360° horizontal rotation (endless), vertical -45° to +135°
- Construction: Black anodized aluminum, 316L stainless steel available upon request
- Waterproof rating: IP67/IP68
- Operating temperature: -10°C to 50°C
- Dimensions: ø 50mm x 170mm
- Power supply: 12VDC
- Connector: Amphenol IP67 – Cable gland or other connector options available depending on feasibility
- Weight: 520g
