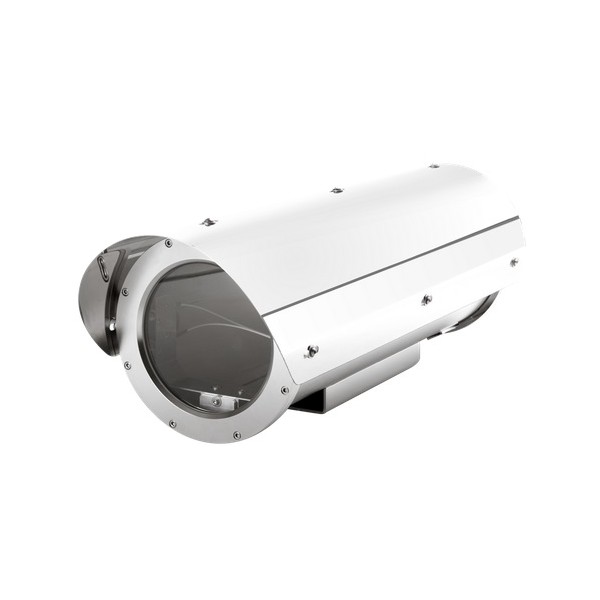

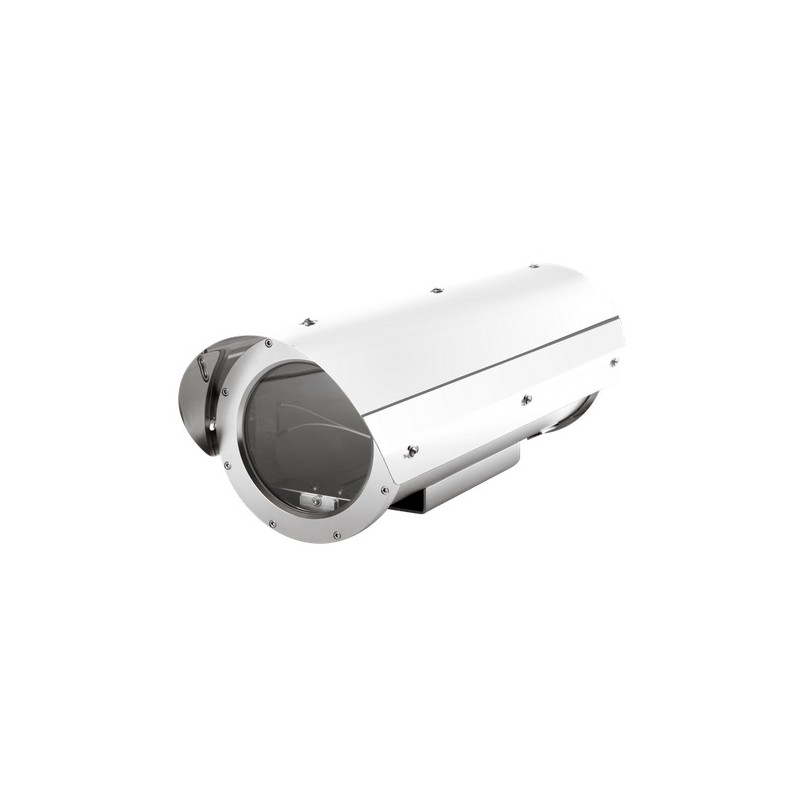

254SA - Large-size housing in 316L stainless steel

Description

This range is defined by en Extralarge oversized camera housing manufactured in Stainless Steel 316L.

Suitable for big cameras, large optics / zoom cameras that need to be protected in industry, marine and corrosive areas, this housing is perfectly adapted to resist to corrosive agents and is waterproof IP66/IP67.

The rugged camera brackets reduce the vibrations to keep a stable image even with big zoom lenses.

External diameter is 254mm and length 700mm, and the optional wiper keeps your window clean.

This camera housing is the only one that has enough place to install large optics like Fuji D60/C22 and others.

The 254SAIR offers a large Germanium window diameter of 115mm for thermal cameras.

Applications

• For large optics, large cameras
• Maritime / offshore
• Industry
• Chemicals
• Boats / Vessels
• Coast surveillance

Technical specifications

• 254SA series : Extra-large over-sized SST camera housing
• Construction : Made of Stainless Steel 316L Electro-polished
• Ingress protection : IP66/67
• Wiper optional (with possibility to add pump and tank for cleaning liquid)
• Operating temperature : -40 to +60°C
• Window : 200mm for visible cameras / 115mm for thermal
• Cable inputs : 4 x M20x1.5 (cable glands nickel plated included for cable 5-10mm, SST 316L as optional)
• Weight : 28Kg max
• Power supply : 24VAC/VDC, 230VAC
• Power consumption : MAX 30W
• EMC : EN 50130-4; EN/IEC 61000-6-2; EN/IEC 61000-6-4
• LVD : EN 60950-1; EN 60950-22
• RoHS : 2011/65/EU + 2015/863/EU (RoHS 3)
• WEEE : 2012/19/EU
• Usable area : 175x174x545mm - Max usable diameter 211mm without wiper, 191mm with wiper
