Heat Resistant Camera for High-Temperature
New product
High-Temperature Video Surveillance
Ensure the optimal thermal performance of your facilities to guarantee continuous operation.
Prevent long and costly production line shutdowns.
ALLWAN extreme heat-resistant cameras provide live monitoring for kilns, furnaces, and foundries.
Keep an eye on your operations 24/7: immediate action in the event of a defect.
The Cooled Camera for Every Situation
Specially designed for extreme thermal environments up to 400°C ambient, achieve high-performance and durable vision for monitoring your industrial processes.
Choose between a complete turnkey camera system or the cooled housing alone to accommodate your own camera equipment.
Manufactured in high-resistance 316L stainless steel and available with various technical windows, including Germanium for thermal and radiometric cameras.
Monitor and Prevent Incidents
Verify the heating process of steel, aluminum, cement, or plastics in real-time to increase efficiency. Any component defect, incident, or accident is immediately detected.
Foundries & Metallurgy
Monitoring sensitive molten metal pouring zones. The 316L stainless steel housing resists splashes and intense radiant heat.
Kiln & Oven Control
In the food processing or ceramics industries, it allows for precise cooking process control and immediate anomaly detection.
Steel Mills
Real-time inspection of metal forming. The integrated air barrier clears scale and metallic dust from the viewing window.
When to use a cooled camera?
Most standard cameras are limited to +50°C. Beyond this, thermal stress is irreversible. It is therefore imperative to:
- Regulate temperature: Double-walled 316L Stainless Steel for water/air circulation up to 400°C.
- Continuous monitoring: Avoid manufacturing defects and safety risks associated with video interruptions.
- Maintain clarity: Air barrier protection against dust, grease, and smoke on the viewing window.
Technical Specifications
| Specification | Technical Details |
|---|---|
| Product | High-temperature camera or empty housing |

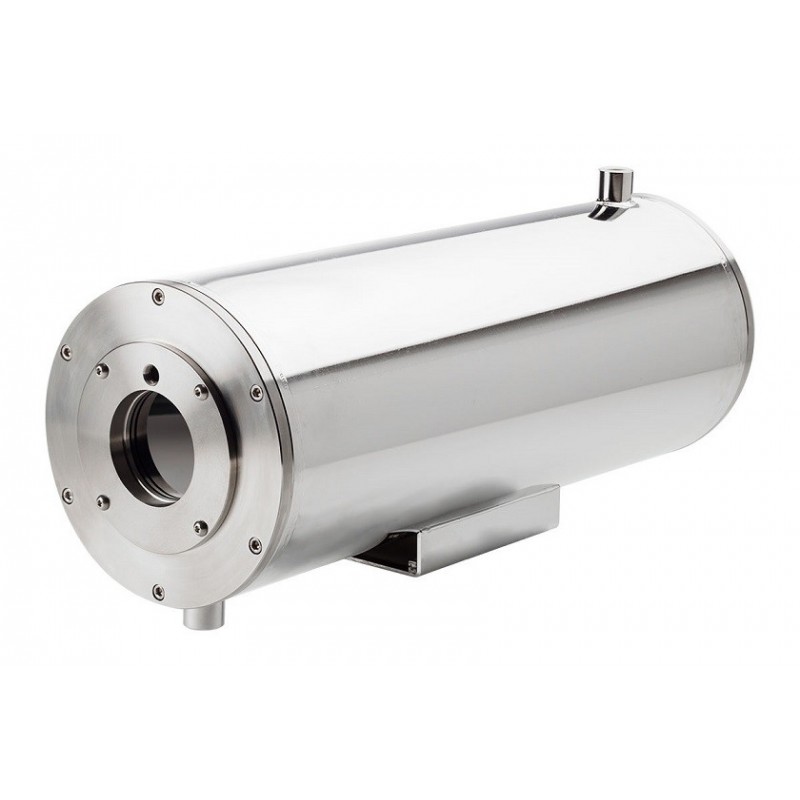

| Reference | 129RL |
| Material | 316L Stainless Steel, high corrosion resistance |
| Maximum Temperature | 400°C Ambient |
| Cooling | Tempered water at 20°C recommended (4 bars max) |
| Window Protection | Cooling air barrier with anti-dust function. Optional filter group for air degreasing. |
| Available Windows | Borosilicate: Standard cameras - 400°C max AR/DLC Coated Germanium: Thermal, radiometric cameras - 80°C max AR/AR Coated Zinc Selenide (ZnSe): Standard and thermal - 300°C max (peaks at 400°C) |
| Options | Camera supply and mounting with centering. Anti-IR, Anti-UV, or Anti-UV/IR filters. |
| Accessories | Wall mount / Pole adapter. Air degreasing filter group (for front-face air barrier). |
