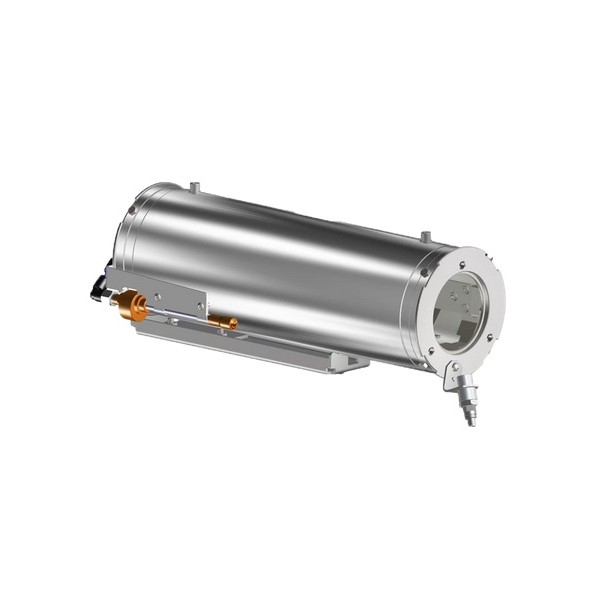

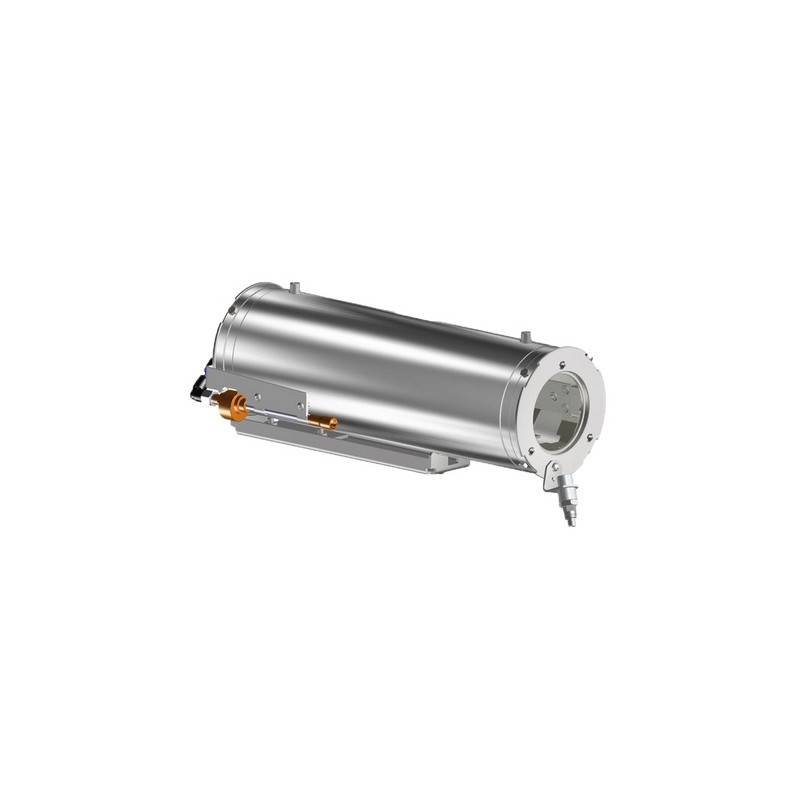

130RA – Air-Cooled Stainless Steel Housing – Vortex

Condition: New product

Air-cooled camera housing using Vortex tube

Perfect when no water supply is available nearby

Vortex effect allows operation in ambient temperatures up to 100°C

Corrosion-resistant housing made of 316 stainless steel

More details

More info
Download

Description

The 130RA is an innovative camera protection system featuring a smart air inlet that, thanks to its Vortex tube, allows effortless installation of a camera in environments with ambient temperatures up to 100°C.

The structure is made of AISI 316L stainless steel, making it suitable for harsh and industrial environments.

To meet a variety of needs, the 130RA is available with a borosilicate glass window for visible spectrum cameras, and a germanium window for thermal imaging cameras.

At the front, an air nozzle enables window cleaning with a pressurized jet, or creates an anti-deposit air barrier in the case of continuous airflow.

Technical Specifications

130RA: Innovative Vortex tube cooling technology
Operating temperature: Up to 100°C ambient
Construction: Corrosion-resistant, electropolished 316L stainless steel
Ingress protection: IP66/67
Compatible cameras: Coaxial and IP cameras
Models available: For standard and thermal cameras
Cable entries: 2 x M20x1.5 (nickel-plated brass glands included, stainless steel optional)
Window cleaning: Front-facing air jet nozzle
Weight: 5 kg
RoHS: 2011/65/EU + 2015/863/EU (RoHS 3)
WEEE: 2012/19/EU

ALLWAN MARINE CAMERAS

130SA - 316L stainless steel casing

Marine/Saline Stainless Steel Camera Housing, Industrial, AISI 316L Robust anti-corrosion construction for extreme environments. Compatible with all types of cameras. Available with a germanium window for thermal cameras. IP66 and IP67 waterproof rating according to EN60529.

Quick view

ALLWAN SECURITY

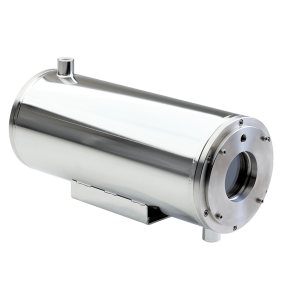

129RL - water cooled camera housing...
