Tunnel camera enclosure in stainless steel

Description

Optimal protection for your cameras in extreme environments

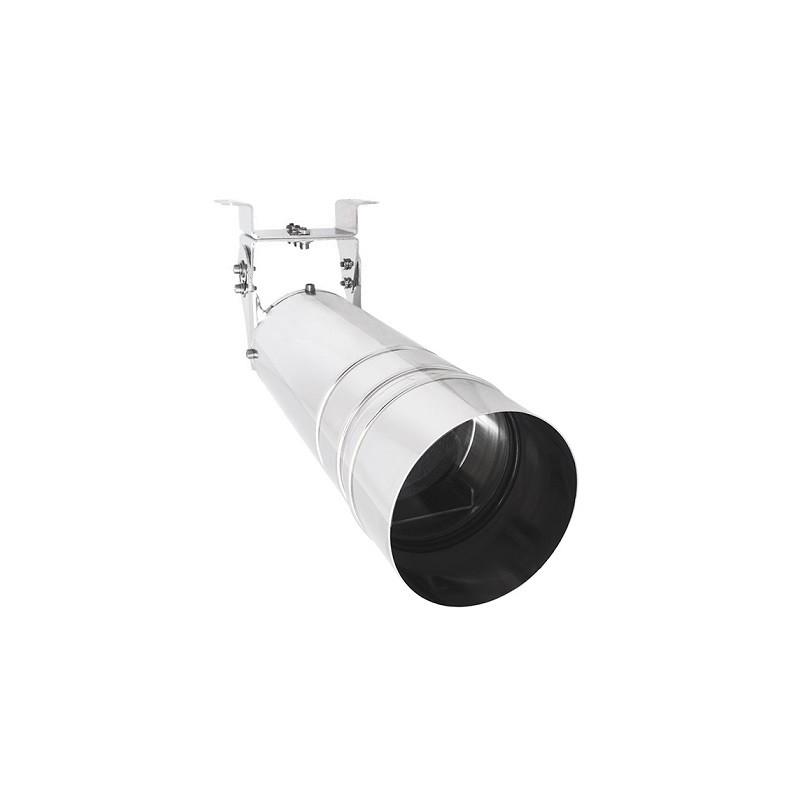

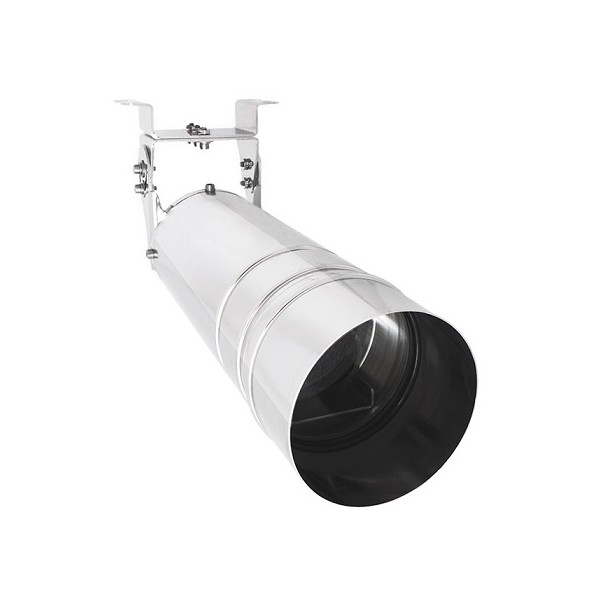

The 128TUN from ALLWAN SECURITY is a high-end protective camera housing specifically developed for tunnel applications. Made of electropolished AISI 316L stainless steel, it offers excellent resistance to harsh atmospheres such as hydrocarbon pollutants, salt mist, and corrosive chemical agents.

Efficiency-driven design

• Elongated structure with front tube: protects the window from light reflections and particle buildup.

• Dual-coated window: minimizes dust accumulation for consistently clear visibility.

• Integrated thermostatically controlled heater: prevents fogging and ensures a clear image at all times.

Simplified installation & maintenance

Thanks to its quick-access opening system, the 128TUN allows camera installation in just a few minutes:

• Remove four screws from the rear

• Slide the front tube forward

• Direct access to the internal rail for camera mounting

A true time- and safety-saving solution, both during installation and maintenance.

Technical specifications

• Specifically designed for tunnel installations
• Constructed from AISI 316L stainless steel
• Elongated front tube for enhanced protection
• Dirt-resistant window with special coating
• 3-axis wall/ceiling mounting bracket
• Weatherproof to IP66/IP67 standards
• Suitable for highly corrosive environments
