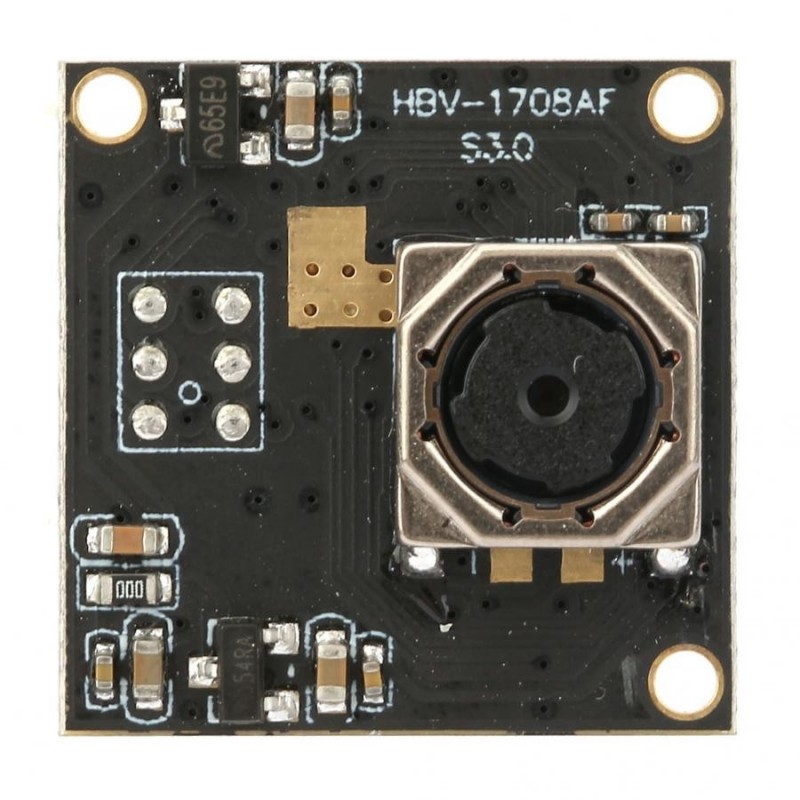

UVC1708F Mini camera UVC Autofocus Pinhole 4MP

This is one of the smallest USB camera modules with its size 19mmx19mm, it's a 5 megapixel autofocus with a high quality CMOS Omnivision OV5640 image sensor. Because of its very small size, it can be used for many applications such as robotics, drones, IoT, medical equipment, electronic toys, scanners, embedded systems, etc ...

Characteristics
Model: UVC1708F Mini camera
Omnivision OV5640 CMOS Image Sensor
Resolution: 5 Megapixels
Compression format: YUYV / MJPEG
Resolution and frame rate: 2592x1944-15fps; 1920x1080-30fps; 1280x960 at 30fps; 1280x720p 30fps;
Auto focus
Distance from the object: 10cm-infinity
Low crosstalk, low noise
Ratio S / N: 36dB
Dynamic Range: 68dB
Sensitivity: 600 mV / lux-sec
Interface Type: USB 2.0 High Speed
Adjustable parameter: Brightness / Contrast / Color Saturation / Tint / Definition / Gamma Balance / White / Exposure
Field of vision: 60 ° C
Audio frequency: optional
Power supply: USB Bus Power
Power Consumption: DC 5V, 150mA
Storage temperature: -20 ° C to 70 ° C
Operating temperature: 0 to 60 ° C
Supports Linux, Android and Windows
UVC compatible, Plug & Play
Dimensions for embedded application: 19 x 19 x 6.5mm
Weight: 16g
