ZB1902 Mini bullet IP67 1080p camera

New product

Quotation

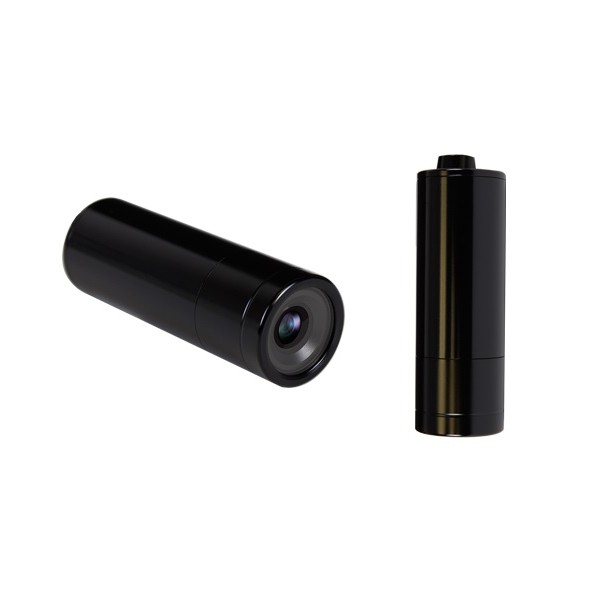

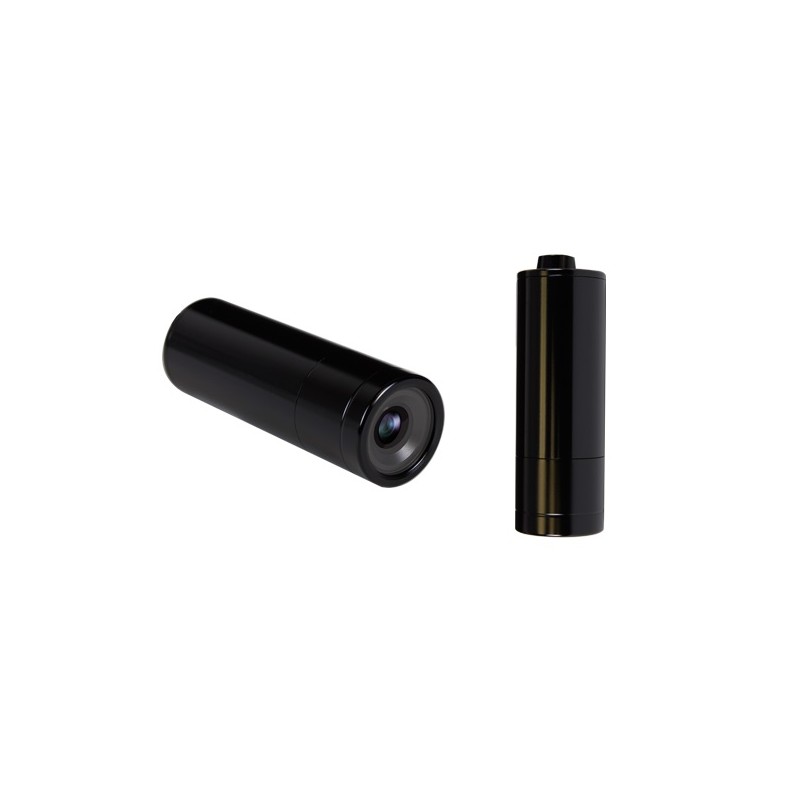

The KTC-MB1902xWX camera is a highly compact cylindrical camera, waterproof with an IP67 rating.

Its cable features a mini joystick for adjusting various image settings via the built-in OSD menu.

The video signal is selectable among CVI, AHD, TVI, or composite video PAN/NTSC (CVBS).

More details

The KTC-MB1902xWX is a robust and compact camera.

With its small diameter of 19mm and length of 54.8mm, it can be placed anywhere, integrated into a robot, a machine tool, and many other industrial applications.

Text can be added to the image on 1 line, for example, 'MACHINE CAMERA 54F'.

Technical specifications:

  • 1/2.8" SONY STARVIS CMOS 2.13Mp sensor
  • Video signal 1920x1080 (configurable from 720P25 to 1080P30)
  • Choice of video signal 4 in 1: AHD, CVI, TVI, CVBS PAL
  • 3.6mm lens (M12x0.5) offering a horizontal angle of 93.7°
  • Various image adjustments are available (WDR, anti-fog, 3D DNR, AGC, GAMMA, DSS, Image rotation, etc.)
  • 19mm diameter
  • Supplied with adjustable mounting bracket
  • Also available in non-waterproof version Standard 3.6mm lens = length 45mm or pinhole lens = length 37mm



More information on the datasheet available for download.

Quick view

ALLWAN SECURITY

Portable, standalone, and IP65 waterproof monitor for controlling and recording our industrial and underwater cameras Compatible with AHD, CVI, TVI, and analog CVBS PAL/NTSC.

More
Quick view

ALLWAN SECURITY

Portable, battery-powered non-destructive control screen for video monitoring and recording Compatible with our ALLWAN SECURITY cameras, as well as AHD, CVI, TVI, and analog CVBS PAL/NTSC

More

Datasheet KTC-MB1902xWX

Download (250.94k)
