Compact box camera C/CS 1080p AHD/CVI/TVI/CVBS

New product

Quotation

Compact multi-purpose box camera with C/CS mount, featuring image adjustments, backlight compensation, anti-fog, and rendering enhancements.

A wide range of lenses is available upon request to suit specific needs.

More details

Description

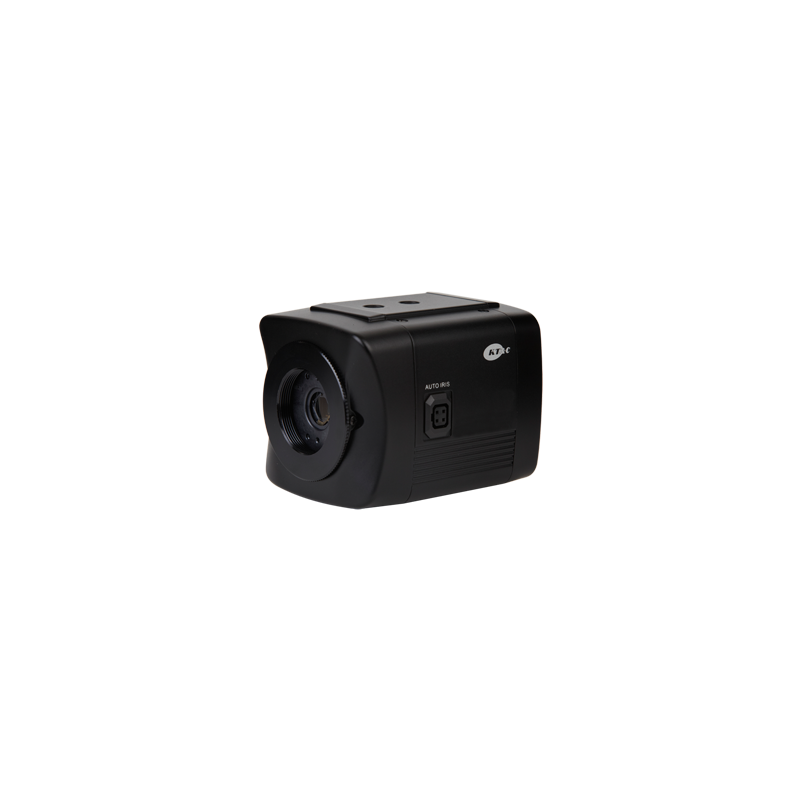

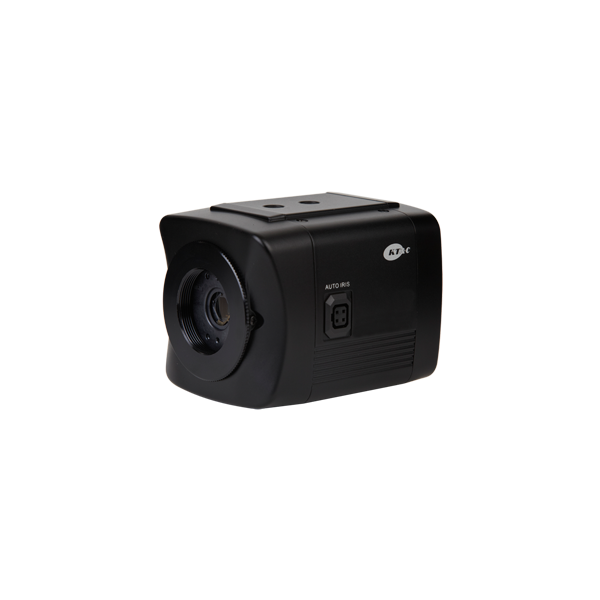

Box camera KTC-MBN6422x

The KTC-MBN6422x camera, paired with a range of optional lenses, provides a solution perfectly tailored to the target and environmental conditions (lighting, contrast, backlighting, depth of field).

Featuring not only a Full-HD video output configurable in HD-TVI, HD-CVI, or AHD, but also the ability to adjust the video signal to analog CVBS PAL, making it compatible with certain outdated equipment, while still allowing for future evolution towards a high-resolution installation.

This versatile camera is compact, measuring only 70.5mm in length, making it suitable for placement in areas with limited space.

Technical specifications

  • 1/2.8" Progressive Scan CMOS
  • 1080p (1920x1080)@30(25)fps
  • 4-in-1 video signal (AVI, TVI, CVI, CVBS)
  • C/CS Mount
  • True Day/Night with IRC filter
  • WDR, 3D DNR, Defog
  • UTC function supports OSD Control

Datasheet KTC-MBN6422x

Download (309.85k)
