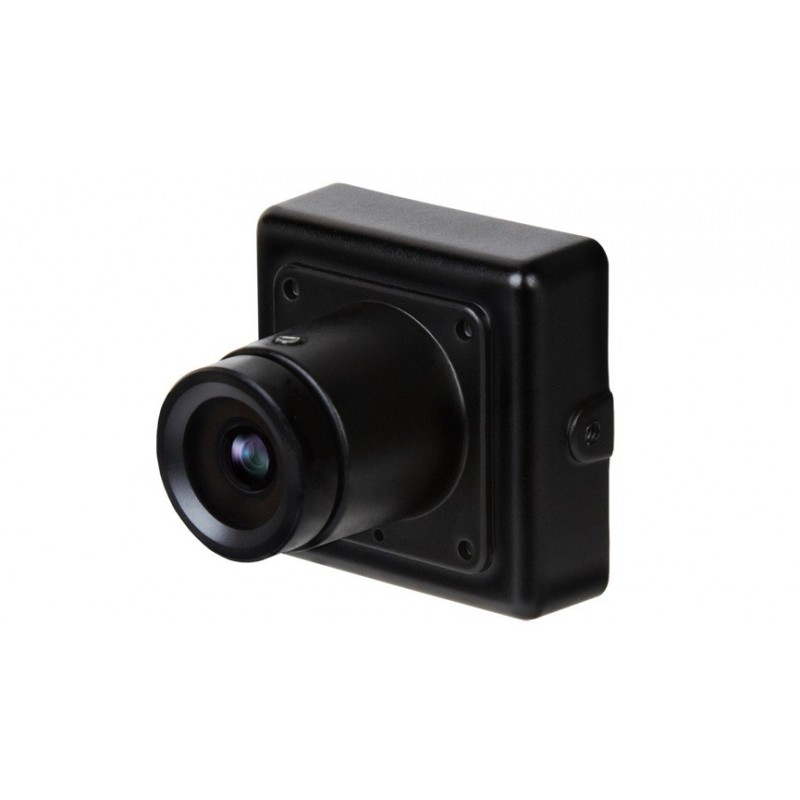

MS2502B TVI Mini Camera / AHD / CVI / CVBS 2.1Mp

New product

Quotation

Square Full HD 1080p multifunctional mini camera, video output HD-TVI / HD-CVI / AHD and analog CVBS.

Optional pinhole lens, ideal for discreet surveillance, elevators, ATMs (Automated Teller Machines), banks, control terminals, etc.

More details

Description

KTC-MS2502xB: Mini camera TVI/AHD/CVI/CVBS (analog) 2.1Mp 1080p, equipped with a 2.1Mp SONY STARVIS image sensor.

Not only its resolution, but also its compatibility with all coax video signals simplifies the installations, integrations, and operation of this ultra-versatile camera. Ideal for integrators and manufacturers, suitable for vehicles, industrial machines, or covert use, it delivers smooth, clear imagery with very high detail levels, without any video processing delays.

Technical specifications

  • 1/2.8" Progressive Scan CMOS
  • 1080p(1920x1080)@30(25)fps
  • 4-in-1 video signal (AHD, TVI, CVI, CVBS)
  • Fixed lens: 3.6mm board or 4.3mm pinhole
  • Day/Night functionality
  • WDR, 3D DNR, anti-fog processing function
  • Joystick for adjustments via on-screen OSD menu - UTC compatible

Full details available in the downloadable datasheet.

Camera typeFixed
Video SignalAHD
Video SignalCVI
Video SignalTVI
Video SignalAnalogue CVBS
Resolution1920x1080 Full-HD
MaterialAluminum
Ingress ProtectionIP44
Cable length0.5m
Built-in illuminatorWithout
Power Supply12VDC

Datasheet KTC-MS2502xB

Download (294.67k)
