ProEnergyBox 4060P - Complete off-grid energy solution for all weather conditions

New product

Quotation

ProEnergyBox 4060P. Complete energy solution outside the network. Installation space for 2 batteries and 2 M28 fuel cartridges. Solar charge controller
Temperature -40 ° F to + 122 ° F / -40 ° C to +50 ° C. IP 43D protection case.

More details

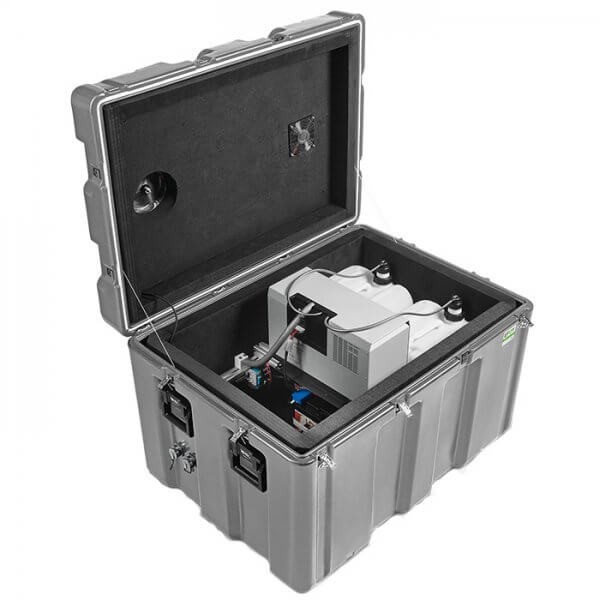

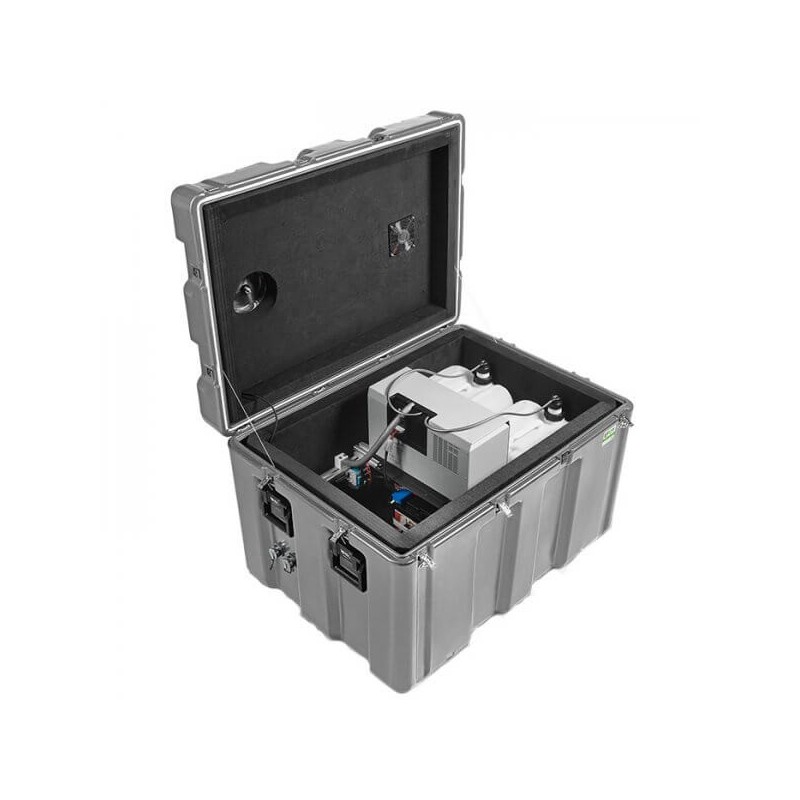

ProEnergyBox has been designed for use in all weather conditions, from -40 ° C to + 50 ° C. In ProEnergyBox, it is possible to integrate an EFOY Pro fuel cell, up to two batteries, a solar charge controller and up to two M28 fuel cartridges. This ensures a long battery life without user intervention.
Thanks to the effective temperature regulation, the lost heat of the EFOY fuel cell can be used to reduce the temperature of the energy solution and avoid the integrated electronics. In the evolution of high ambient temperatures, a thermal conduction system is provided, to protect the elements inside the heat box. ProEnergyBox offers space for specific installations. It is compatible for hybrid operation with solar energy and is therefore perfectly suitable for backup or extension for solar energy.

functions
Morningstar ProStar 25A MPPT solar charge controller integrated for Hybrid system operation.
Exhaust thermostatically controlled heat-treated steam exhaust tube and exhaust fan to regulate the internal temperature of the housing and prevent freezing or overheating.
Air supply ducts and waste heat resistant to intrusion of water or snow.
Pre-wired EFOY Pro electrical connection and mounting plate.
Slots, plugs and cables for external connection, including protection against water and dust.
Installation space for 2x batteries 100 Ah 12V maximum.
Installation space for up to 2 M28 fuel cartridges.
Solar charge controller.
Standard: 25 A MPPT; Optional: 45 A or 60 A MPPT.

Characteristics
Model: ProEnergyBox 4060P
Temperature difference: -40 ° F to +122 ° F / -40 ° C to +50 ° C
Protection: IP 43D
Rated voltage: 12 V or 24 V
Case: Gray, HDPE, carrying handles
Dimensions: 108.6 x 78.1 x 74.3 cm
Weight: 48.9 kg

Configuration possibilities
EFOY Pro compatible fuel cells: EFOY Pro 800 Duo / 2400 Duo
Number of fuel cartridges: max. 2 x M28
Compatible batteries: AGM, Gel, LiFePO4
Battery installation space: 338 x 538 x 216 mm
Solar charge controller: Standard 25 A MPPT; Optional 45 A or 60 A MPPT
