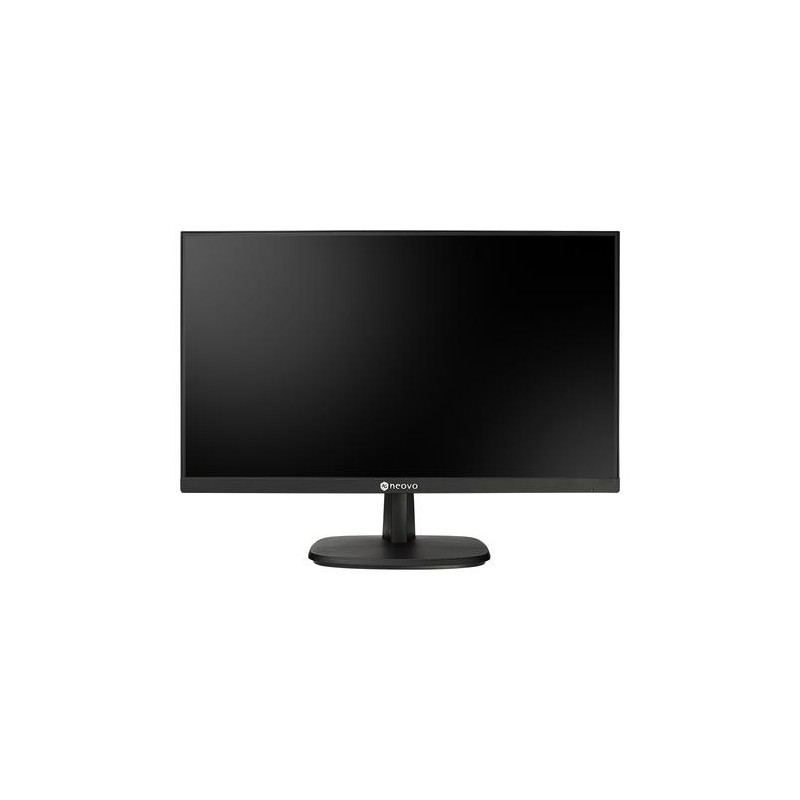

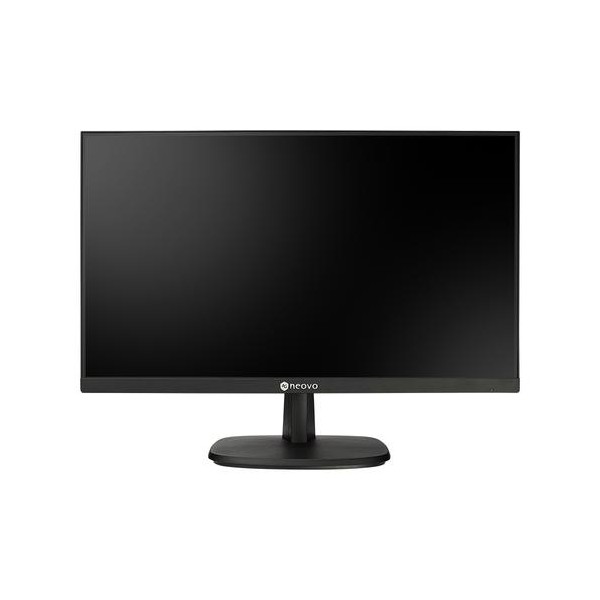

SC-2402 - Neovo display 24" CVBS HDMI VGA

The SC-2402 is a 24" security monitor with ultra-thin bezels on three sides, specifically developed for video surveillance applications. It is particularly suited for operators working in control rooms with multi-screen setups, providing 24/7 continuous operation.

Designed for surveillance, the SC-2402 features video enhancement functions that deliver sharp images, even in low-light conditions.

Additionally, the SC-2402 offers versatile installation options, making it ideal for both single-screen and multi-screen configurations.

With an excellent cost-to-performance ratio, it provides an optimized solution for enhancing operator productivity in today’s and tomorrow’s work environments, all while keeping costs controlled.

Ultra-Thin Bezel Monitors for Enhanced Productivity

Surveillance operators often prefer multi-monitor configurations to maximize their efficiency. The SC-2402, with its three-sided ultra-thin bezel design, creates a seamless workspace that minimizes visual interruptions between screens. This setup makes it easier to perform quick analyses and centrally manage video feeds from multiple sources, which is crucial when rapid decisions are required.

Easy Integration into Multi-Screen Setups

The SC-2402 is fully compatible with AG Neovo’s VESA 100 x 100 mm wall and desk mounts. Whether you're installing one, two, four, or more screens, AG Neovo provides comprehensive, ergonomic solutions for control room setups, maximizing operator efficiency.

Optimized Cost-Performance Ratio

Designed for extended use, the SC-2402 reduces maintenance needs, providing a better cost-performance ratio. This commercial-grade model is built for 24/7, year-round operation. Thanks to AG Neovo’s proprietary anti-image retention technology, static image remnants are eliminated, ensuring the display’s longevity and extending the lifespan of the LCD screen.

Perfect for Video Surveillance Applications

The pre-configured surveillance mode on the SC-2402 automatically enhances image clarity, even in low-light conditions. You can quickly adjust sharpness, saturation, contrast, and brightness without the need for constant fine-tuning, ensuring optimal performance right out of the box.

Optimized Gamma for Superior Image Quality

The SC-2402 includes enhanced gamma optimization, allowing precise visual adjustments to improve image quality. Easily tweak the balance of light, shadows, and colors to achieve sharper, more balanced visual renditions.

Extended Connectivity with HDMI and BNC Inputs

The SC-2402 supports both analog and digital video inputs, allowing seamless connection with various surveillance equipment via HDMI, VGA, and BNC ports. The BNC input enables direct camera connection to the monitor, eliminating the need for a digital recorder or converter to access live video feeds instantly.

Main Features:

Display

- Pixel Pitch: 0.275 mm
- Native Contrast: 20,000,000:1 (DCR)
- Viewing Angle (Left/Right/Up/Down): 178°/178°
- Color Display: 16.7M
- Surface Treatment: AntiGlare, 3H hard coating

Frequency

- Horizontal Frequency (H): 30 kHz - 85 kHz
- Vertical Frequency (V): 48 Hz - 75 Hz

Inputs

- HDMI 1.4 x 1
- VGA 15-Pin D-Sub x 1
- Composite BNC x 1

Outputs

- Composite BNC x 1

Audio

- Audio In: Stereo Audio Jack (3.5 mm)
- Internal Speakers: 2W x 2

Power Supply

- Internal Power Supply
- Power Requirements: AC 100-240V 50/60 Hz
- On Mode: 15W (On)
- Standby Mode: < 0.5W
- Off Mode: < 0.3W

Operating Conditions

- Temperature: 5°C - 35°C (41°F - 95°F)
- Humidity: 20% - 85% (non-condensing)

Storage Conditions

- Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 10% - 90% (non-condensing)

VESA Wall Mount

- VESA FPMPMI: YES (100 x 100 mm)

Dimensions

- Product with base (W x H x D): 540.1 x 408.3 x 226.5 mm (21.3" x 16.1" x 8.9")
- Product without base (W x H x D): 540.1 x 322.1 x 41.8 mm (21.3" x 12.7" x 1.7")

Weight

- Product with base: 3.4 kg (7.5 lb)
- Product without base: 3.0 kg (6.6 lb)

Accessories Included

- Audio Cable, Power Cable, Manual, VGA Cable

Optional Accessories

- Ceiling Mount (Landscape only) CMP-01 + WMK-03
- Wall Mount (Landscape only): PMK-01, WMA-01, WMK-01, WMK-03
- Desk Mount (Landscape only): DMC-01, ES-02
