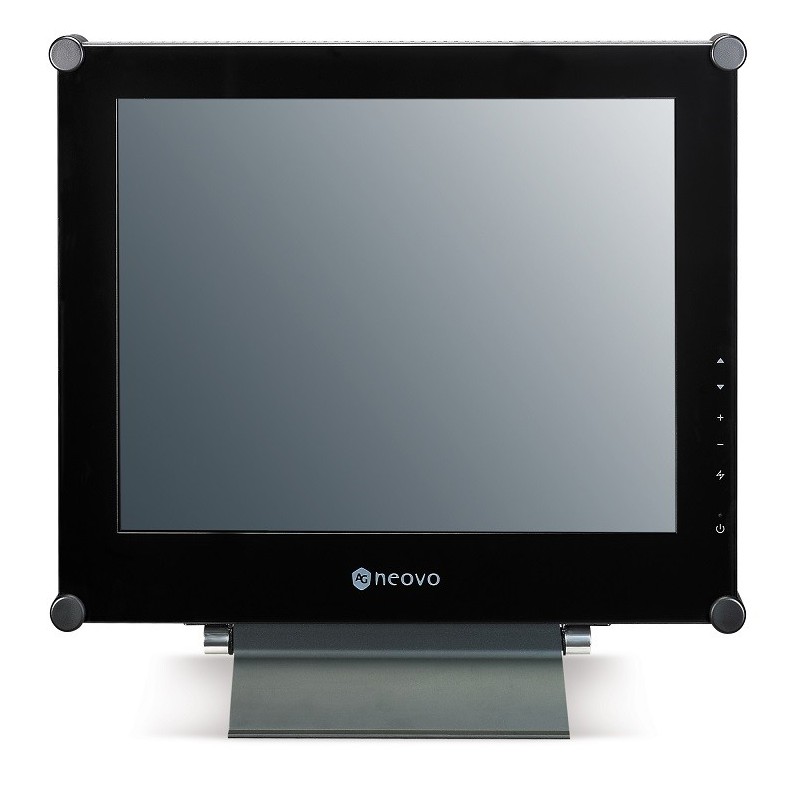

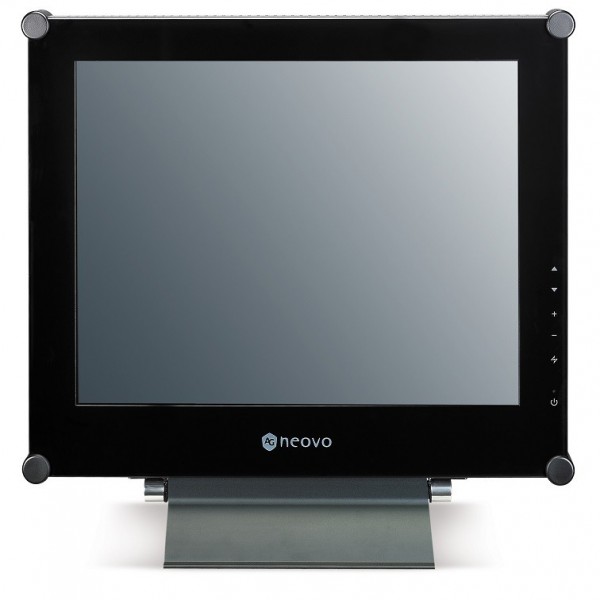

SX-15G - Monitor Neovo 15" 24/24 reinforced

The SX series is perfect for both legacy and modern surveillance applications, offering both analog and digital connectivity, as well as a Composite output for video loops. Built for reliable, round-the-clock operation, it incorporates AG Neovo’s Anti-Burn-in™ technology to prevent image retention, ensuring that users always see the current footage, not remnants of past images. Featuring NeoV™ optical glass and a durable metal casing, the monitor is designed to withstand accidental impacts and damage, making it resilient in the most challenging environments. With its exceptional versatility and compatibility, the SX series provides the ideal display solution for seamless transitions in video surveillance setups.

SX Series: Reliability at Its Core

The SX series has been developed to meet the demands of 24/7 continuous operation environments.

Thanks to AG Neovo's Anti-Burn-in™ technology, it eliminates the risk of image retention, ensuring stable and reliable performance even during critical, uninterrupted operations.

Its robust metal casing, combined with NeoV™ optical glass, provides enhanced protection against impacts while simplifying maintenance procedures.

Designed for the Specific Needs of Surveillance and Security

With its advanced technology, the SX series delivers exceptional resolution, improving images with enhanced clarity and finer details.

Specifically designed for surveillance centers, it includes a dedicated CCTV mode optimized to ensure excellent image readability, even when monitoring footage in low-light conditions, such as during nighttime surveillance.

Highly Versatile and Enhanced Compatibility

The SX series is compatible with a wide range of video sources, from older cameras to the latest HDMI and DisplayPort-equipped devices.

Additionally, its lockable composite input and composite loop-out make it easy to connect other devices without the need for an external splitter.

Main Features:

Display

- Pixel Pitch: 0.297 mm
- Native Contrast: 20,000,000:1 (DCR)
- Viewing Angle (Left/Right/Up/Down): 176°/176°
- Color Display: 16.2M



Frequency

- Horizontal Frequency (H): 24 kHz - 83 kHz
- Vertical Frequency (V): 50 Hz - 75 Hz

Inputs

- HDMI 1.4 x 1
- DP x 1
- DVI 24-Pin DVI-D
- VGA 15-Pin D-Sub x 1
- Composite BNC x 2
- S-VIDEO x 1

Outputs

- Composite BNC x 2

Audio

- Audio In: Stereo Audio Jack (3.5 mm) + RCA Stereo
- Internal Speakers: 2W x 2

Power Supply

- External power supply, provided 12VDC
- Consumption : 1.5A
- On Mode: 13W (On)
- Standby Mode: < 0.5W
- Off Mode: < 0.3W

Front Glass

Operating Conditions

- Temperature: 0°C - 40°C (32°F - 104°F)
- Humidity: 10% - 90% (non-condensing)

Storage Conditions

- Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 5% - 95% (non-condensing)

VESA Wall Mount

- VESA FPMPMI: YES (100 x 100 mm and 75 mm x 75 mm)

Dimensions

- Product with base (W x H x D): 380.0 x 359.0 x 155.0 mm (15.0" x 14.1" x 6.1")
- Product without base (W x H x D): 380.0 x 315.0 x 53.5 mm (15.0" x 12.4" x 2.1") )

Weight

- Product with base: 4.8 kg (10.6 lb)
- Product without base: 4.4kg(9.7 lb)

Accessories Included

- Audio Cable, Power Cable, Manual, VGA Cable, Power adaptor

Optional Accessories

- Ceiling Mount (Landscape only) CMP-01 + WMK-03
- Wall Mount (Landscape only): PMK-01, WMA-01, WMK-01, WMK-03
- Desk Mount (Landscape only): DMC-01, ES-02
