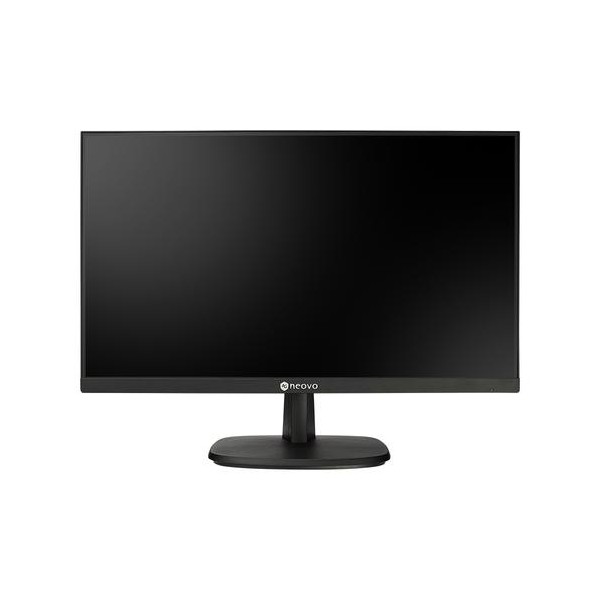

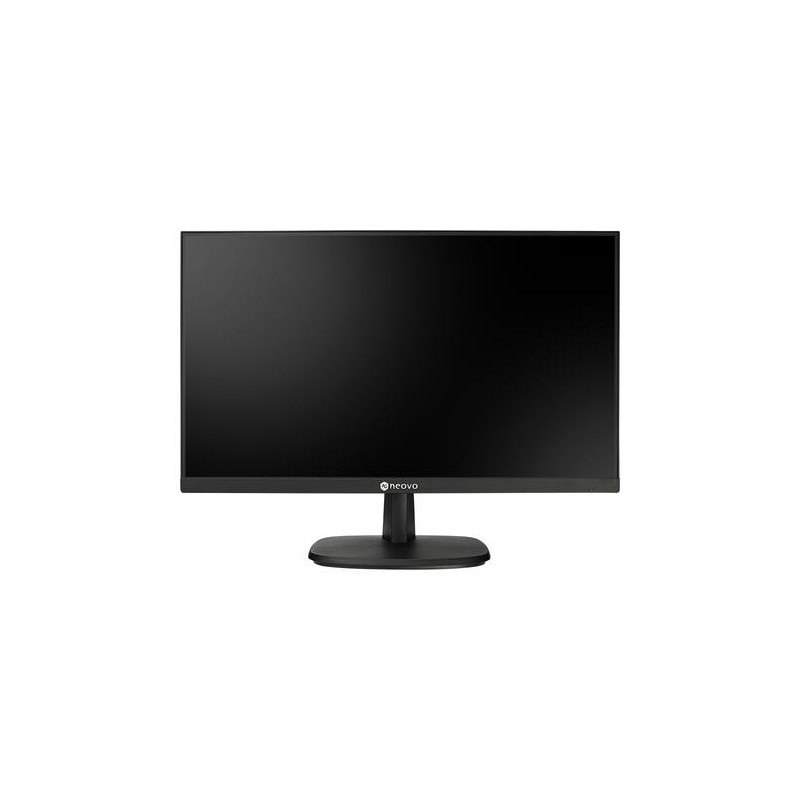

SC-2203 - Neovo display 22" CVBS HDMI VGA

Description

The SC-2203 is a 22-inch security monitor with ultra-slim bezels on three sides, designed specifically for video surveillance tasks. It is an ideal choice for operators working in control rooms with multi-screen configurations, ensuring continuous 24/7 operation.

Built for surveillance purposes, the SC-2203 incorporates video enhancement features that provide clear, high-quality images, even in low-light environments.

The monitor also offers flexible installation options, making it suitable for both single-monitor and multi-monitor setups.

With its excellent cost-to-performance ratio, the SC-2203 provides a practical solution for boosting operator efficiency in modern and future workspaces, all while maintaining budget control.

Ultra-Slim Bezel Design for Improved Productivity

In surveillance operations, multi-monitor setups are often preferred to enhance operational efficiency. The SC-2203’s three-sided ultra-thin bezel design creates a seamless and uninterrupted workspace, reducing visual distractions between monitors. This layout supports quick data analysis and centralizes video feed management, making it easier to act swiftly when decisions need to be made.

Seamless Integration with Multi-Screen Setups

The SC-2203 is compatible with AG Neovo’s VESA 100 x 100 mm mounting systems, including both wall and desk mounts. Whether you are setting up one, two, or more displays, AG Neovo provides a range of ergonomic mounting solutions designed to optimize control room configurations for maximum operator productivity.

Excellent Cost-Effectiveness

Tailored for extended usage, the SC-2203 minimizes maintenance requirements, delivering an outstanding cost-to-performance ratio. This commercial-grade model is built to operate continuously 24/7, throughout the year. AG Neovo’s proprietary anti-image retention technology also prevents static images from causing burn-in, ensuring a longer lifespan for the display and enhancing its overall durability.

Ideal for Video Surveillance

The SC-2203 features a pre-configured surveillance mode that automatically optimizes image clarity, even under low-light conditions. Users can quickly adjust sharpness, saturation, contrast, and brightness settings, without needing to constantly recalibrate, ensuring optimal performance right from the start.

Optimized Gamma for Superior Visuals

With advanced gamma adjustment, the SC-2203 enables precise control over the visual output, improving overall image quality. Adjustments to light, shadow, and color balance can be made easily, resulting in sharper and more balanced video displays.

Versatile Connectivity with HDMI and BNC

Supporting both analog and digital video inputs, the SC-2203 connects easily with various surveillance systems through HDMI, VGA, and BNC ports. The BNC input allows direct camera connections to the monitor, eliminating the need for a separate digital recorder or converter to access live video streams in real-time

Technical specifications

Display

- Pixel Pitch: 0.241 mm
- Native Contrast: 20,000,000:1 (DCR)
- Viewing Angle (Left/Right/Up/Down): 178°/178°
- Color Display: 1.07 Billion
- Surface Treatment: AntiGlare, 3H hard coating

Frequency

- Horizontal Frequency (H): 30 kHz - 85 kHz
- Vertical Frequency (V): 48 Hz - 75 Hz

Inputs

- HDMI 1.4 x 1
- VGA 15-Pin D-Sub x 1
- Composite BNC x 1

Outputs

- Composite BNC x 1

Audio

- Audio In: Stereo Audio Jack (3.5 mm)
- Internal Speakers: 2W x 2

Power Supply

- Internal Power Supply
- Power Requirements: AC 100-240V 50/60 Hz
- On Mode: 15W (On)
- Standby Mode: < 0.5W
- Off Mode: < 0.3W

Operating Conditions

- Temperature: 5°C - 35°C (41°F - 95°F)
- Humidity: 20% - 85% (non-condensing)

Storage Conditions

- Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 10% - 90% (non-condensing)

VESA Wall Mount

- VESA FPMPMI: YES (100 x 100 mm)

Dimensions

- Product with base (W x H x D): 491.8 x 373.8 x 167.4 mm (19.4" x 14.7" x 6.6")
- Product without base (W x H x D): 491.8 x 289.5 x 44.9 mm (19.4" x 11.4" x 1.8")

Weight

- Product with base: 2.6 kg (5.7 lb)
- Product without base: 2.3 kg (5.1 lb)

Accessories Included

- Audio Cable, Power Cable, Manual, VGA Cable

Optional Accessories

- Ceiling Mount (Landscape only) CMP-01 + WMK-03
- Wall Mount (Landscape only): PMK-01, WMA-01, WMK-01, WMK-03
- Desk Mount (Landscape only): DMC-01, ES-02
