SC-32E - Monitor Neovo 32 "24h / 24 Eco range

New product

Quotation

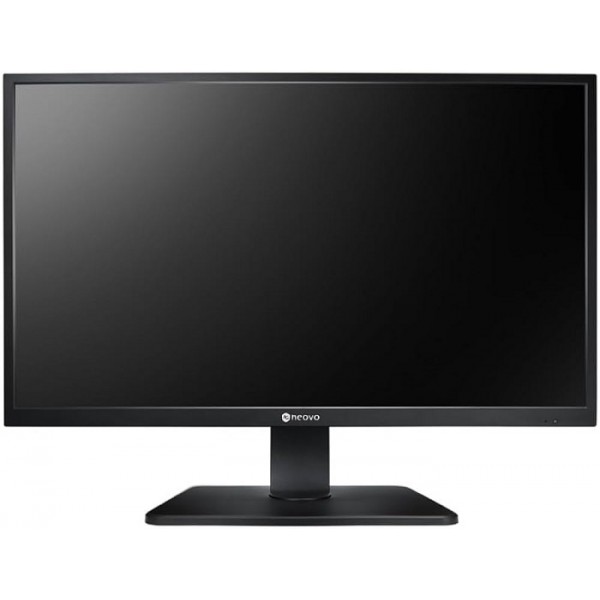

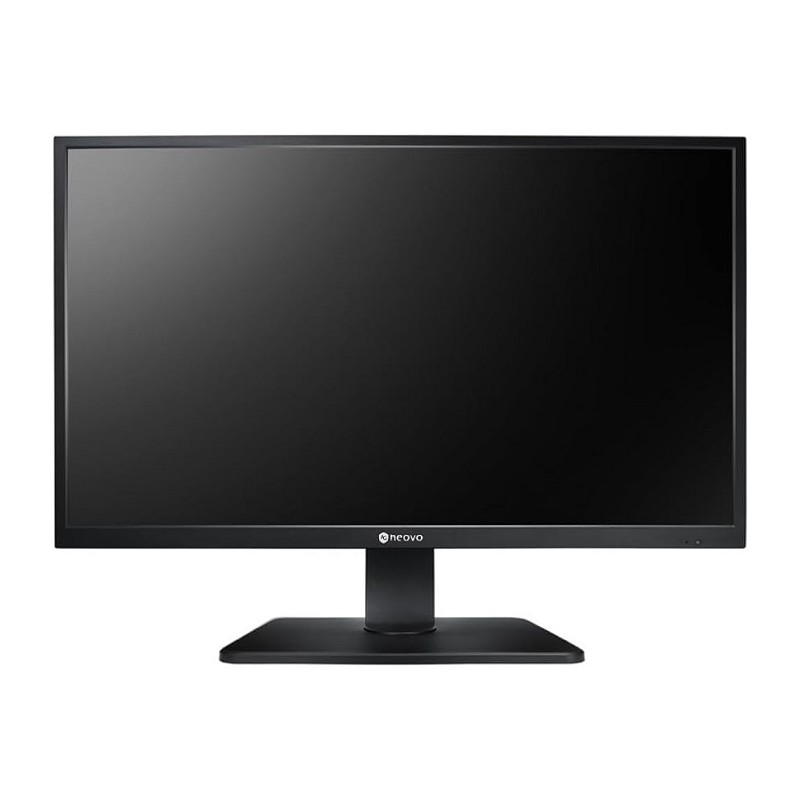

NEOVO SC32 LED Video Monitor 32 "
Economic range. Scheduled for 24/7 operation, format 16/9, BNC inputs - HDMI - VGA - Svideo. Desk stand provided. Wall mounting possible VESA fingerprint.

More details

The SC-32E displays are designed to deliver continuous performance 24/7, featuring integrated Anti-Burn-in™ technology that prevents image retention while ensuring uninterrupted operation in security and surveillance environments.

These monitors also come equipped with advanced image-enhancement features, such as gamma curve adjustment, black level tuning, a contrast boosting system, and a CCTV mode, enabling more detailed visuals even in low-light conditions, typical of surveillance settings.



Increased Reliability

Built for continuous use, the SC-32E ensures optimal reliability for 24/7 operation.

Thanks to AG Neovo's Anti-Burn-in™ technology, it effectively prevents image retention, ensuring operation without image ghosting, even in critical situations requiring uninterrupted monitoring.



Enhanced Image Clarity

The SC-32E monitors provide exceptional image quality with advanced features such as optimized gamma curve selection, black level adjustment, and an impressive dynamic contrast ratio of 20,000,000:1.

These capabilities allow for better detail in dark areas and the production of highly accurate images.

A pre-configured CCTV mode has been specifically designed for surveillance centers, enabling easy adjustments to sharpness, color temperature, and brightness to optimize image clarity, especially for nighttime surveillance in low-light conditions.



Adapts to Your Needs

To meet various needs, the AG Neovo SC-32E monitors offer flexible configurations that allow you to adjust the screen to specific surveillance requirements.

Available options include switches to disable the blue screen or the power LED, as well as adjustable aspect ratios such as 16:9, 4:3, 1:1, or a custom zoom mode.

These features enable you to calibrate the display according to the specific conditions of your control room, regardless of the input signal.





Main Features:

Display

- Pixel Pitch: 0.364 mm
- Native Contrast: 20,000,000:1 (DCR)
- Viewing Angle (Left/Right/Up/Down): 178°/178°
- Color Display: 16.7M
- Surface Treatment: AntiGlare, 3H hard coating



Frequency

- Horizontal Frequency (H): 30 kHz - 85 kHz
- Vertical Frequency (V): 48 Hz - 75 Hz



Inputs

- HDMI 1.4 x 1
- VGA 15-Pin D-Sub x 1
- Composite BNC x 1
- USB 2.0 x 1



Outputs

- Composite BNC x 1



Audio

- Audio In: Stereo Audio Jack (3.5 mm)
- Internal Speakers: 2W x 2



Power Supply

- Internal Power Supply
- Power Requirements: AC 100-240V 50/60 Hz
- On Mode: 26W (On)
- Standby Mode: < 0.5W
- Off Mode: < 0.3W



Operating Conditions

- Temperature: 5°C - 35°C (41°F - 95°F)
- Humidity: 20% - 85% (non-condensing)



Storage Conditions

- Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 10% - 90% (non-condensing)



VESA Wall Mount

- VESA FPMPMI: YES (100 x 100 mm)



Dimensions

- Product with base (W x H x D): 728.8 x 540.3 x 236.8 mm (28.7″ x 21.3″ x 9.3″)
- Product without base (W x H x D): 728.8 x 433.1 x 51.4 mm (28.7" x 17.1" x 2.0")



Weight

- Product with base: 8.1 kg (17.9 lb)
- Product without base: 5.6 kg (12.3 lb)



Certifications

- CE, FCC, LVD, WEEE, RoHS, REACH



Accessories Included

- Audio Cable, Power Cable, Manual, VGA Cable, remote controller (battery included)



Optional Accessories

- Ceiling Mount (Landscape only) CMP-01 + WMK-03
- Wall Mount (Landscape only): PMK-01, WMA-01, WMK-01, WMK-03
- Desk Mount (Landscape only): DMC-01, ES-02
