SX-17G - Monitor Neovo 17" 24/24 slab glass

New product

Quotation

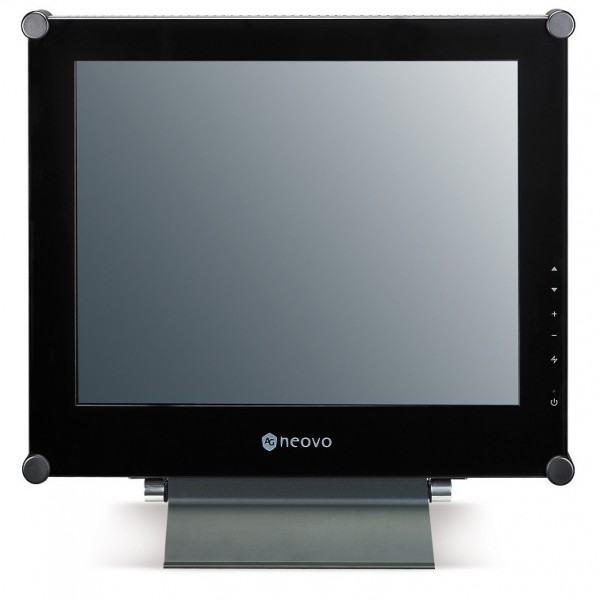

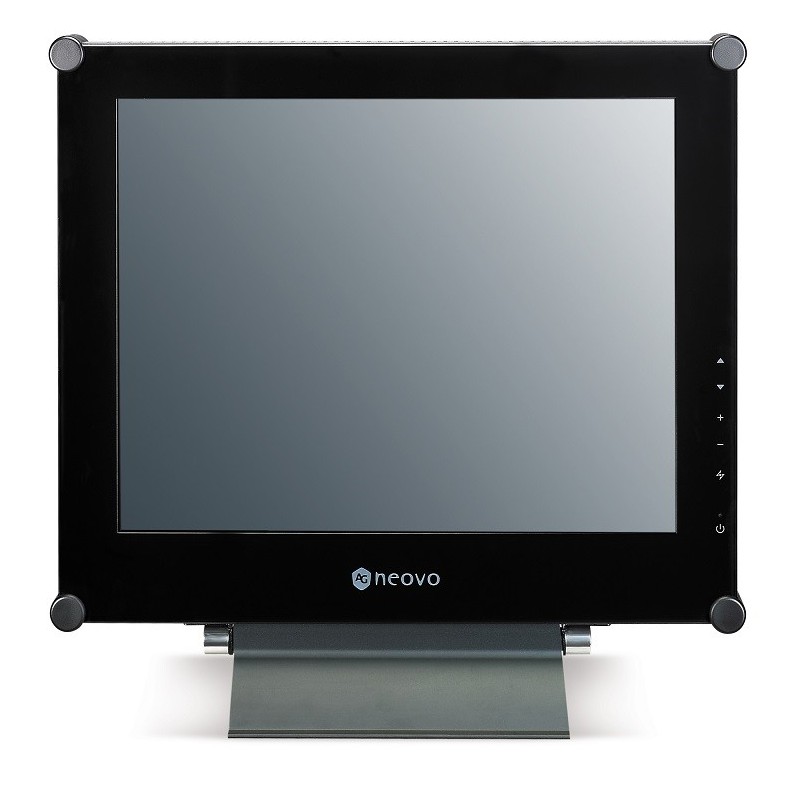

NEOVO SX17P LED Video Monitor 17 "
High quality - anti-reflective glass slab, metal frame
High brightness and strong contrast
Scheduled for 24/7 operation
4/3 format
Inputs 2 x BNC - HDMI - VGA - SVIDEO
Desk stand provided
Wall mounting possible VESA fingerprint

More details

The SX series is designed to meet the needs of both traditional and modern surveillance systems, offering a combination of analog and digital connectivity options, along with a composite output for video looping.

Engineered for reliable 24/7 operation, it features AG Neovo's Anti-Burn-in™ technology, which helps eliminate image retention, ensuring that operators always view current video feeds rather than lingering images from past footage.

The monitor's rugged construction, which includes NeoV™ optical glass and a sturdy metal frame, offers enhanced durability, making it ideal for demanding environments.

With its broad compatibility and flexibility, the SX series is the perfect solution for seamless integration into surveillance systems.



SX Series: Built for Dependability

The SX series is engineered for environments that require continuous, round-the-clock operation. With AG Neovo's Anti-Burn-in™ technology, it prevents image retention, providing reliable and uninterrupted performance, even in critical surveillance tasks.

The robust metal enclosure and NeoV™ optical glass offer superior protection against accidental impacts while making maintenance more straightforward.



Tailored for Surveillance and Security

Thanks to its advanced technology, the SX series delivers outstanding resolution, enhancing images with sharper clarity and finer details.

Specifically designed for security and surveillance centers, it includes a pre-configured CCTV mode that optimizes image clarity, especially when monitoring low-light footage during nighttime surveillance.



Exceptional Versatility and Compatibility

The SX series supports a wide variety of video sources, from legacy analog cameras to the latest HDMI and DisplayPort devices.

Its lockable composite input and composite loop-out features make it easy to connect multiple devices without needing an external splitter, providing flexible installation options.





Main Features:

Display

- Pixel Pitch: 0.264 mm
- Native Contrast: 20,000,000:1 (DCR)
- Viewing Angle (Left/Right/Up/Down): 170°/160°
- Color Display: 16.7M



Frequency

- Horizontal Frequency (H): 24 kHz - 83 kHz
- Vertical Frequency (V): 50 Hz - 75 Hz



Inputs

- HDMI 1.4 x 1
- DP x 1
- DVI 24-Pin DVI-D
- VGA 15-Pin D-Sub x 1
- Composite BNC x 2
- S-VIDEO x 1



Outputs

- Composite BNC x 2



Audio

- Audio In: Stereo Audio Jack (3.5 mm) + RCA Stereo
- Internal Speakers: 2W x 2



Power Supply

- External power supply, provided 12VDC
- Consumption : 1.58A
- On Mode: 13W (On)
- Standby Mode: < 0.5W
- Off Mode: < 0.3W



Front Glass

Thickness : 3.0 mm (0.12")
Reflection Rate : < 1%
Transmission Rate : > 97%
Hardness : > 9H



Operating Conditions

- Temperature: 0°C - 40°C (32°F - 104°F)
- Humidity: 10% - 90% (non-condensing)



Storage Conditions

- Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 5% - 95% (non-condensing)



VESA Wall Mount

- VESA FPMPMI: YES (100 x 100 mm and 75 mm x 75 mm)



Dimensions

- Product with base (W x H x D): 409.4 x 398.2 x 175.0 mm (16.1" x 15.7" x 6.9")
- Product without base (W x H x D): 506.0 x 506.0 x 225.0 mm (19.9" x 19.9" x 8.9")



Weight

- Product with base: 6.1 kg (13.4 lb)
- Product without base: 5.3 kg(11.7 lb)



Accessories Included

- Audio Cable, Power Cable, Manual, VGA Cable, Power adaptor



Optional Accessories

- Ceiling Mount (Landscape only) CMP-01 + WMK-03
- Wall Mount (Landscape only): PMK-01, WMA-01, WMK-01, WMK-03
- Desk Mount (Landscape only): DMC-01, ES-02
