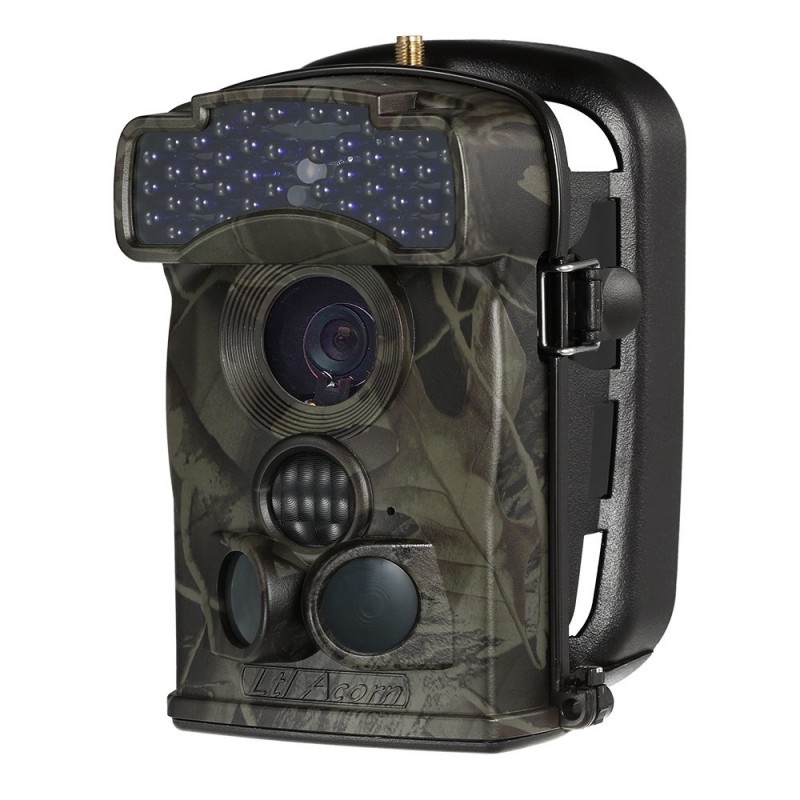

LTL-5310 WMG-4G Hunting / Observation Camera

New product


LTL-5310 WMG - Hunting / Observation camera. Viewing angle at 100 °. IR flash 20 meters. Remote control of the device and the night observation mode. Camera equipped with three sensitive motion sensors. Infrared lighting and CMOS matrix. Integrated GSM module allows remote control of the device. Wireless data transmission. Footage stored on SD cards.

More details

The LTL-5310WMG wildlife camera with GSM module and 100 degree viewing angle was designed for field observations. The long operating time, 3 motion sensors, the ability to remotely control the device and the night observation mode offer great opportunities for wildlife research and environmental monitoring. The Acorn LTL 5310WMG, Camera, camera is equipped with sensitive motion sensors, infrared lighting and a CMOS matrix which provides an excellent quality material. The integrated GSM module allows remote control of the device and wireless data transmission. The footage is stored on SD cards with a memory capacity of up to 32 GB.

Image Sensor   5 Mega Pixels Color CMOS
Max. Pixel Size  2560x1920
Lens    FOV=100°;Auto IR-Cut
IR Flash  65 Feet/20 Meters
LCD Screen  48x35.69mm(2.36");480(RGB)*234DOT;16.7M Color
Operation  Keypad 6 Keys
Memory  SD Card (8MB~16GB)
Picture Size  5MP/12MP/1.3MP =2560X1920/4000X3000/1280X960;
Video Size  640x480,320x240;30fps;1280x720;20fps
PIR Sensitivity High/Normal/Low
PIR Sensing Distance 65ft/20m(Below 77°F/25°C at the Normal Level)
Prep PIR Sensing Angle  Left and right light beams form an angle of 100°; Each lens covers 10°
Main PIR Sensing Angle  35°
Operation Mode  Day/Night
Trigger Time  0.6 Second(When using the 2G SD card)
Trigger Interval 0sec. - 60min;Programmable
Shooting Numbers 1~3
Video Length 1-60sec.;Programmable
Camera +Video First take Picture then Video
Playback Zoom  In 1~16 Times
Time Stamp  On /Off; Include serial no., temperature and moon phase
Timer  On /Off; Timer Set
Password  4-Digit Numbers
Device Serial No. 4 digits and 26 alphabets set by yourself
Periodic Shot Time Laps 1 Second ~ 24Hours
MMS Picture Size  VGA; OFF Programmable
MMS Numbers 1~99/Day: Not limit:Programmable
Mobile number 1 ~ 3
E-mail 0 ~ 1,Programmable
Low-Battery SMS Alert Send “Battery Low”
Time Lapse 1 Second ~ 24 Hours
Power Supply 4xAA; Expandable to 8xAA (With additional battery box)
External DC Power Supply Plug Size:4.0x1.76 ~ 12V (1 ~2A)
Stand-by Current 0.4mA
Stand-byTime 3~6 Months(4xAA~ 8xAA)
Auto Power Off Auto power off in 2 minutes while no keypad controlling
Power Consumption 150mA (+650Ma when IR LED lights up)
Low Battery Alarm 4.2~4.3V
Interface  TV out(NTSC); USB; SD Card Slot; 6V DC External
Mounting  Strap; Tripod Nail
Waterproof  IP54
Operation Temperature -22~+158°F/-30 ~+70°C
Operation Humidity 5% ~ 95%
Certificate  FCC & CE & RoHS
