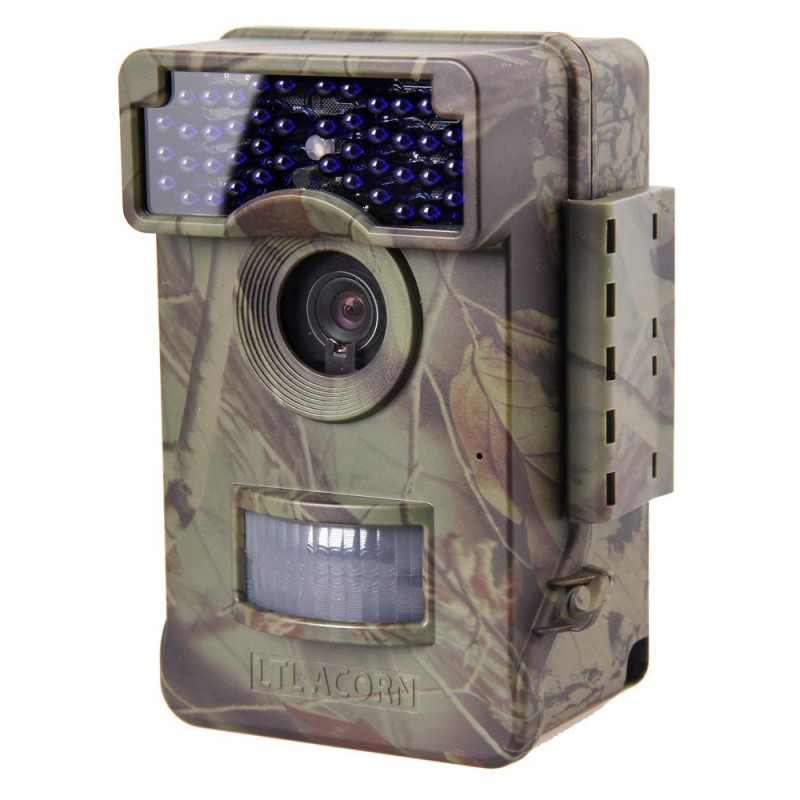

he Ltl-6511MG @ Ltl-6511WMG Advance is the third generation of surveillance cameras in the 6511 series.
Thanks to its highly sensitive PIR (Radial Infrared Radial) sensor, the camera detects the sudden change in ambient temperature caused by moving a game in a region of interest (ROI), triggered to take photos / videos.
Ltl-6511WMC and LTL-6511WMG with 100 degree field of view.
Infrared night vision LED Flash range 850 nm up to 25 m, low radiation 940 nm 20 m.
In "Cam + Video" mode, the camera takes pictures and videos at each triggering event.
The two unique horizontal PIR detection angles of LTL ACORN have a 100 ° angle, our camera is activated in advance and is ready for shooting. This process in a split second could be as short as 0.2 seconds.
The design of two horizontal Pyroelec.
5 megapixel CMOS color image sensor
Max. Pixel size 2560x1920
FOV of the lens = 100 °; Automatic IR-Cut
850NM IR Flash, 20M; 940NM, 15M
TFT display 48 x 35.69mm (2.36 "), 480 (RGB) * 234DOT, 16.7M colors
6-key control keypad
Image size 5MP / 12MP / 2MP = 1560X1920 / 4000X3000 / 1600X1200;
Size of the video 1440X1080; 15fps; 1280x720; 640X480; 30fps
PIR Sensitivity High / Normal / Low / Off
PIR detection distance 13 ~ 15 Metwers
100 ° PIR detection angle
Shooting Angel PIR 55 °
Mode of operation Day / Night
0.8Seconds tripping time
Trigger interval 0sec. - 60 minutes; programmable
Shooting Numbers 1 ~ 3
Duration of the video 1-60s .; programmable
Camera + video First take a picture then a video
Reading zoom between 1 and 16 times
Timestamp enabled / disabled; Include serial number, temperature and moon phase, date and time
Timer1 On / Off; programmable
Timer2 On / Off; programmable
Device serial number: 4 digits (0 ~ 9) and 26 alphabets (A ~ Z) defined by yourself
MMS VGA image size; Programmable OFF
MMS numbers 1 ~ 99 / day: No limit; programmable
Mobile number 1 ~ 3
E-mail 0 ~ 1, programmable
Sending SMS alert by low battery "Low battery"
Time Lapse On / Off; Programmable: 0 seconds - 23 hours 59 minutes and 59 seconds
Power supply 4 * AA alkaline batteries in the camera; 4 * AA alkaline batteries in the camera (or 8 * AA alkaline batteries, or 2 18650 lithium battery cells) in the battery case (batteries should be learned from one side without being empty in the middle) .
External DC Power Plug Size: 4.0x1.76 ~ 12V (1 ~ 2A)
Standby current 0.4mA
Waiting time 3 ~ 6 months (4xAA 12xAA
Auto power off Auto power off in 3 minutes without keyboard control
Power consumption 180mA (+ 570Ma with 850nm IR lights, +670 with 940nm IR lights)
Low battery alarm 4.2 ~ 4.3V
TV output interface (PAL, NTSC); USB; SD card slot; 6V external DC
Mounting strap; Nail Tripod
Operating temperature -22 ~ + 158 ° F / -30 ~ + 70 ° C
Operating humidity 5% ~ 95%
FCC & CE & RoHS Certificate.
