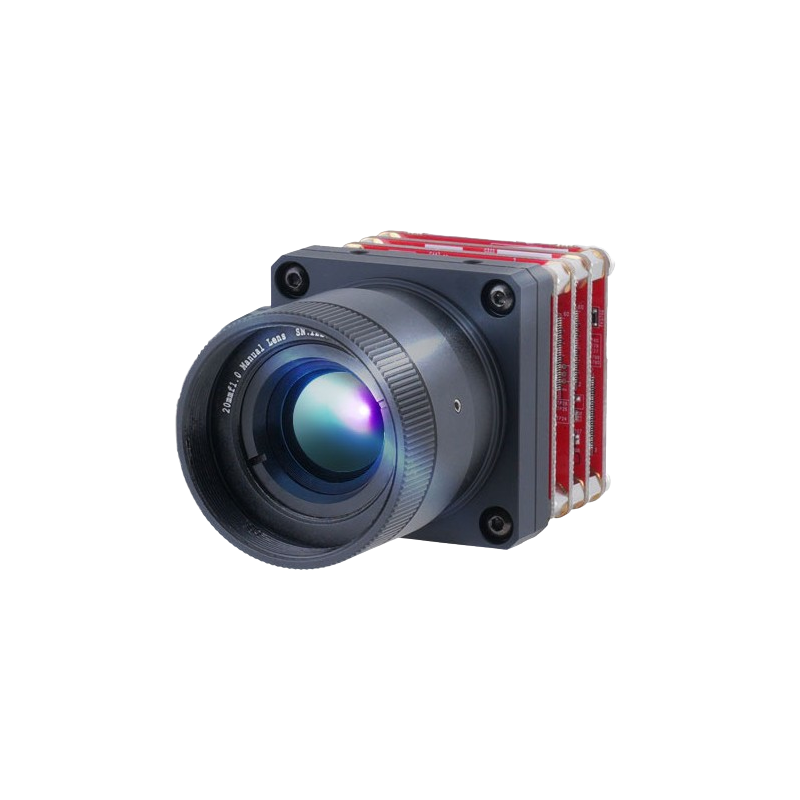

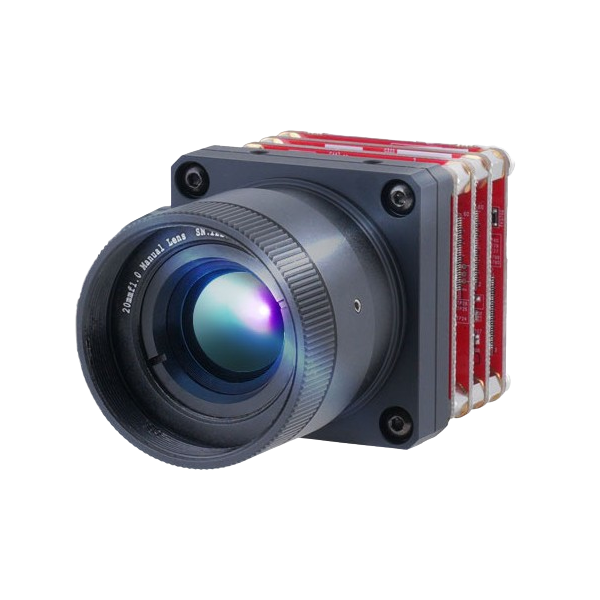

Thermal Camera | Analog and BT656 | KLU38-C & KLU64-C

Mini Thermal Video Module for Process & Industrial Applications

Two Available Resolutions

The KTNC KLU camera range is available in 384×288 and 640×480 resolutions.

Thermal Camera Lenses

Thanks to their C-mount interface, we support you in defining a product 100% tailored to your application requirements.

To meet specific operational constraints, Allwan offers a wide range of thermal lenses:

• Fixed lenses – focal lengths on demand

• Fixed focus, manual or motorized focus

• Athermalized lenses available on request

Thermal Imaging Adjustments

Our KLU38-C and KLU64-C cameras provide multiple image adjustment options via the OSD menu:

• AGC

• Level & Span

• NUC

• Mirror / Flip

• Image filtering

• 10-color palette modes

Technical Specifications

Resolution:

• KLU38-C: 384×288

• KLU64-C: 640×480

Sensor: Uncooled microbolometer

NETD: < 50 mK @ f/1.0, 30 Hz, 300 K

Pixel Pitch: 17 µm

Spectral Range: 8–14 µm

Frame Rate: 30 Hz

Image Adjustments:

Analog Output: AGC, Level & Span, NUC, Mirror, Flip, Invert, Image Filter via On-Screen Menu

Digital / LVDS Output: AGC, Level & Span, NUC, Mirror, Flip, Invert, Image Filter

Functions:

• Hot / Cold tracker

• Center indicator

• Communication protocol

Communication Interface: RS-485 using proprietary KTNC protocol

Initialization Time: < 5 seconds

Operating Temperature: −30 °C to +60 °C

Storage Temperature: −40 °C to +70 °C
