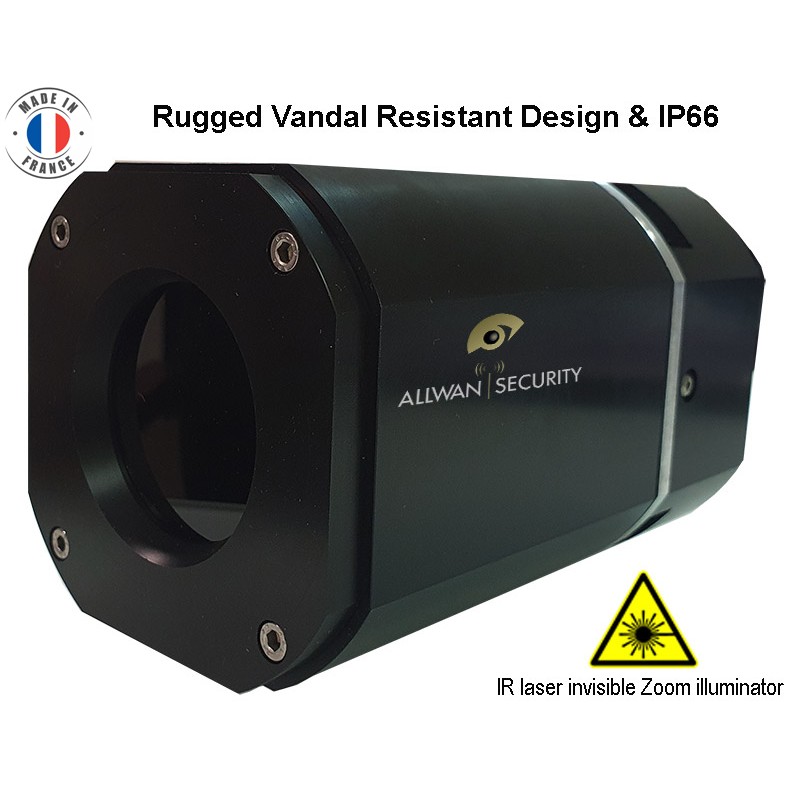

Long range infrared illuminator 940nm 1000m
High output illuminator
Class III Laser
Wavelength 940nm ±5nm invisible
Far Angle 0.8°; Lighting Distance ≥1000m; Spot Diameter<14m;
Near Angle 30°; Lighting Distance ≥80m
Lifetime 50000 hours
Spotless uniform beam intensity
Focus and power adjustable
High yield. 6W optical power output
Optional portable power supply
1/4" 20UNC Photo Pitch Mount
10cm radial Picatinny mount.
Piloting via the Pelco-D protocol via presets
RS485 communications
Black color
Power supply 9~20V DC
Dimensions: 210 x 95 x 95mm
Consumption < 32Wh
Operating temperature -40~+80°C
Thermoregulated.
Waterproof IP67
Military grade Testing: shock, drop, extreme temperature
Power and zoom adjustment via the joystick, a remote control or from a 4G HK-Case video transmission case.
Detachable Joystick handle or optional wired remote control
Use with a day/night CCTV camera or a defiltered camera.
