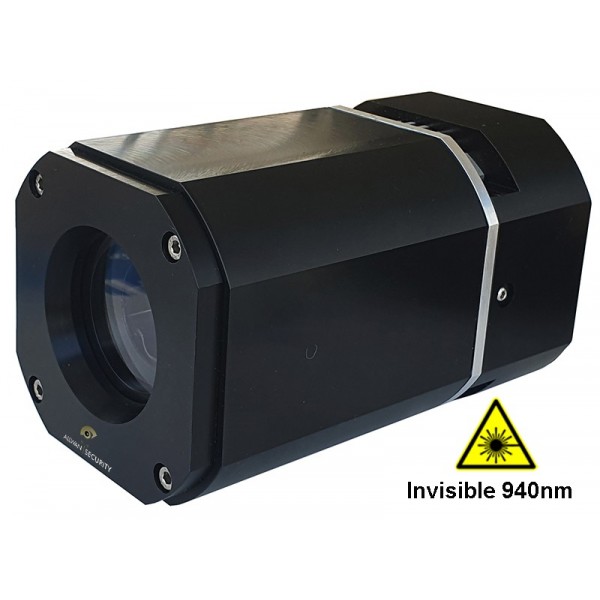

ELIOS 940 nm Long range motorized Laser IP66 complies with MIL-STD-810G Standard - Made by ALLWAN SECURITY
Characteristics:
940 +/- 10 nm wavelength (covert)
Angle of vision 1.7 to 70 °
Motorized lens
Day/ night sensor
9600 baud communication speed
MTBF: 50000 hours
Pelco-D RS485 interface
Operating temperature -10 ° to 70 °
Internal positioning memory
Photo 1/4 "20 UNC mount
DC 12V power supply
Consumption 1.25A @ 12V DC
Dimensions 112 X92 X 97 mm
Waterproof IP66
Weight 1.15 Kg
2-year warranty
Optional:
Pelco 2 button remote control
