ANPR Mobile - Moving plate reading camera

New product

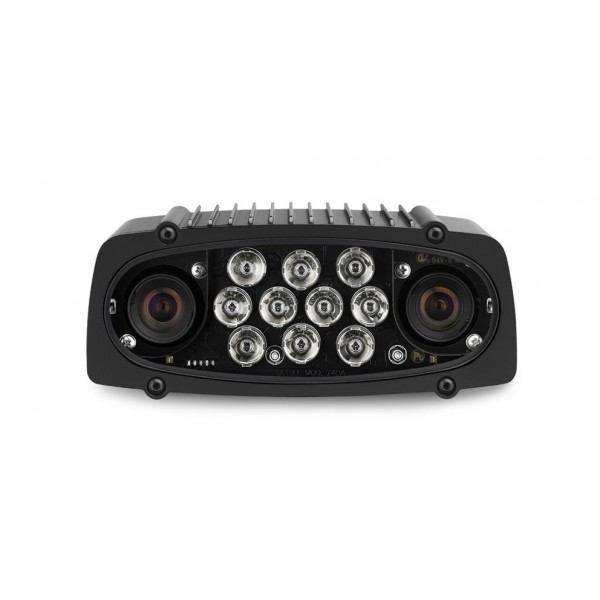

ANPR Mobile - Camera megapixel color and monochrome sensors, infrared light.
Installed on specialized operational service cars. Support for surveillance and road protection. Scans up to one hundred license plates / second. At the front and the back, whatever the lighting conditions, it remains efficient for reading moving plates.

More details

NPR Mobile is a state-of-the-art All On Board system designed to read moving license plates. It offers help to police forces to carry out checks.
It is equipped with megapixel sensors, capable of digitizing more than one hundred license plates per second, front and rear, in all lighting conditions.
It is part of ANPR devices (automatic license plate reader)
A compact solution, such as: sensor, infrared illuminator and processor with integrated OCR (optical character recognition) for automatic reading of license plates.

The system does not require the installation of onboard processing units, nor a physical connection between the cameras and the computer / tablet. In fact, the license plate analysis is done directly from the cameras on the roof, hood or trunk of the car and the data transmission is done in Wi-Fi mode.
In this way, it is possible to speed up the installation, making ANPR Mobile easily transportable from one car to another, with consequent cost reduction.
ANPR is equipped with sophisticated software that can capture greyscale and color images, with the best automatic selection of acquisition parameters with multiple auto exposure.
The control console works on PCs, tablets, smartphones (based on Android); allows you to receive data from multiple devices and display them as images, text, and create white / black playlists.

We offer two ANPR Mobile versions
Short distance, for lateral reading, speed up to 50 km / h
Long distance, for forward reading.

Police application
Prevention of crime

Software features
License Plate Recognition
OCR ANPR engine on board
Enter up to 100 frames per second

Web Server Installation and Configuration by Embedded Web Server
Configuring and monitoring TCP / IP server over TCP / IP
Date and time synchronization via SNTP protocol or GPS
Software update via the web interface

Data transmission
FTP FTP Client in FTP server mode for remote data transmission; two IP addresses
TCP / IP Tattile Open protocol TCP / IP; two IP addresses
H.264 / MPEG4 H.264 or MPEG4 color video streaming

Operating mode
Free Run Continuous treatment with automatic plate detection

Technical characteristics
Camera ANPR
Integrated license plate analysis (Ocr on board)
All in one: color and monochrome sensors, infrared light
Real-time processing: up to 60 frames per second
Color video streaming: H.264 & MPEG4
Wi-Fi data transmission from the device to the PC / tablet
Monochrome CMOS sensor 1920x1200 (trimmed to 1280x1024 for short range version)
1920x1080 color CMOS sensor for contextual camera (cropped at 1280x1024 for the short-range version)
6 high power LED lighting, 850 nm infrared (short range version)
10 high-power LEDs, infrared at 850 nm (long-range version)
Lens mount S, Many focal lengths available.
Linux operating system
Connectors Circular waterproof connector
Fast Ethernet 10/100 and WiFi 802.11 b / g / n network
SD memory card up to 16 GB
Gps on board
Waterproof case
Configuration and configuration of the web server.

Environment, Size, Power
Operating and storage temperature From -30 ° to + 55 ° C
Operating and storage humidity from 10% to 90% non-condensing
Dimensions 178 x 141 x 76 mm (L x W x H)
Weight 1,650 kg
IP66 waterproof protection
Supply voltage 12 Vdc
Consumption 15 W
