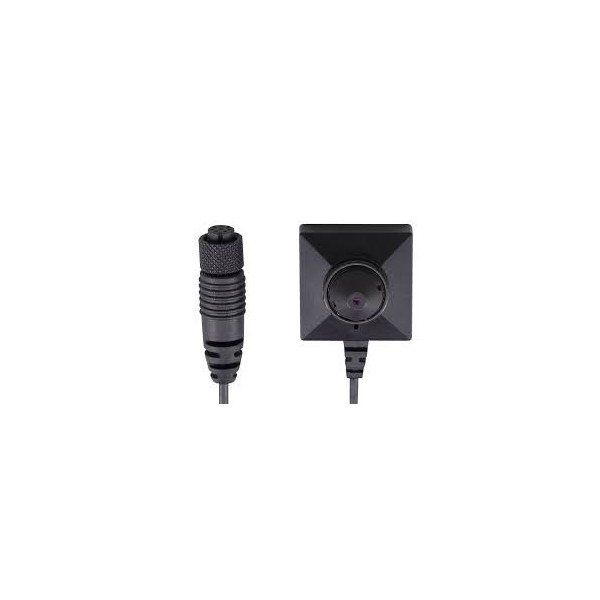

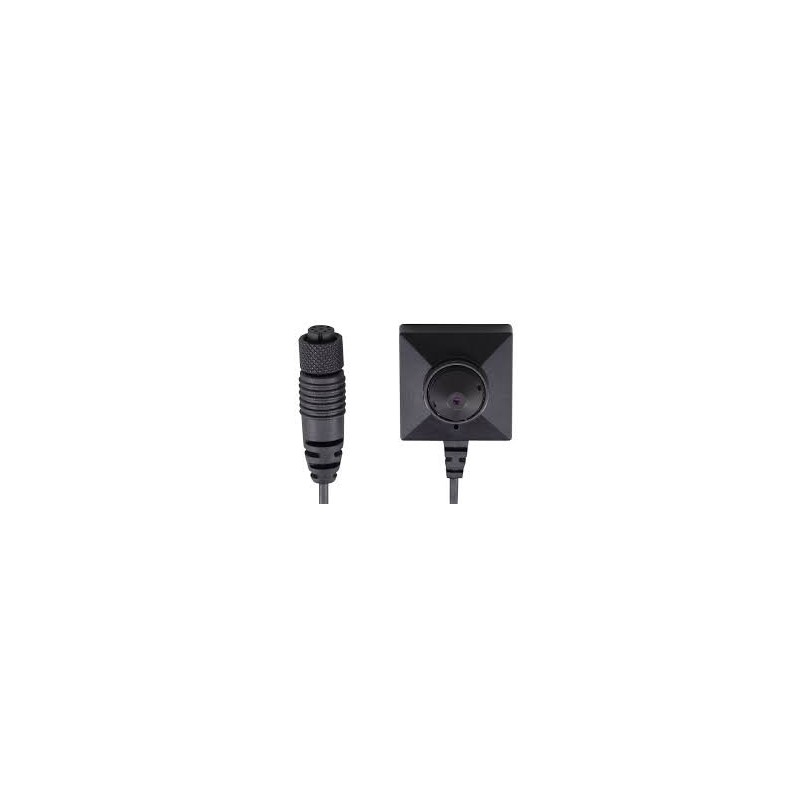

BU-18 Neo Mini Camera Button-Lens CMOS

New product


Full HD video camera. Hidden camera with CMOS button 2.2 MP. New lockable socket for secure connexion. Invisible invisible microphone.

More details

Camera - Full HD Video Sensor 2 Mega Pixel
BU-18Neo is only compatible with the PV-500 Neo and PV-500 Neo Pro models

1080p video resolution
2.8um pixel size (H) * 2.8um (V)
Digital Image Resolution (H) 1920x (V) 1080
CMOS camera module:
SONY CMOS Progressive 1/2-Inch Built-in Image Sensor 0.1 Lux Illumination
Objective F / N ° F2.0
Diameter of the lens 4.3 mm
Angle of view 78.2 °
Depth of field 50 cm ~
Electronic shutter 1/8 ~ 1/30 000
I2C video output data
Power Supply voltage DC 3.3 V ± 5%
Current, 220 mA supply
Operating temperature -10 ~ 60 Operating humidity 20 ~ 90%
Storage temperature -30 ~ 80
Dimension 25x25x17 mm
Weight 18g
