ProCube 2060A - Power Supply / Off-Grid / Mobile / Fuel Cartridges

New product

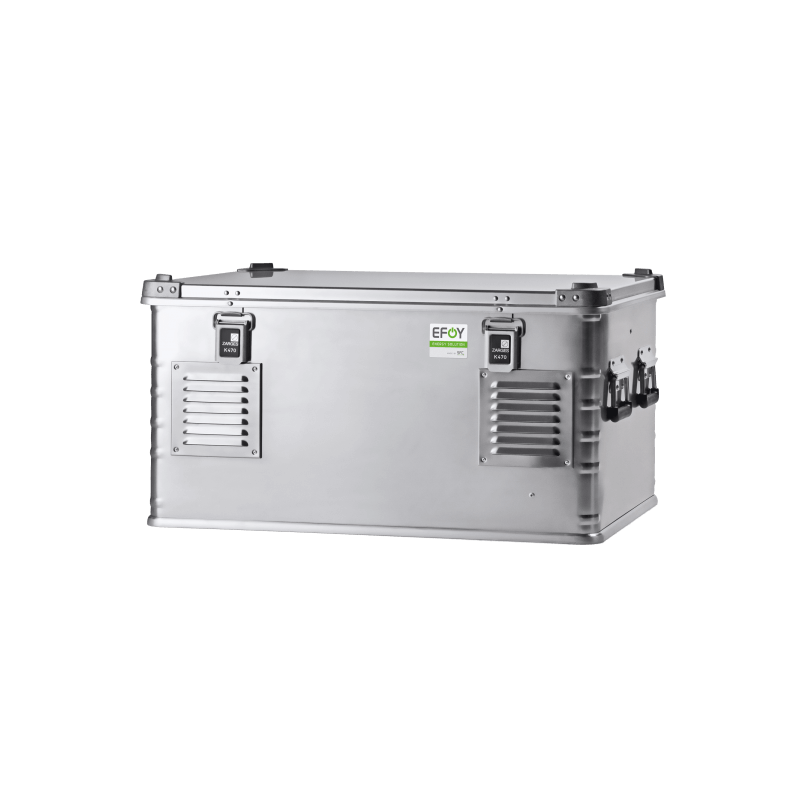

ProCube 2060A - Autonomous Power Supply
Solar Charge Controller for Hybrid System
Rated voltage: 12 V DC and 24 V DC. Temperature range: -20 °C to +50 °C/-4 °F to 122 °F. Aluminum housing with carrying handles. IP protection 33.

More details

ProCube 2060A is an integral, mobile solution for the maintenance-free, off-grid power supply.
 The box for outdoor use is preconfigured and can be customized according to customer requirements
ProCube 2060A can be used temporarily, on a construction site, for example, or durably in hard-to-reach places. The complete energy solution is ideal for outdoor use or discrete applications. In hybrid mode, ProCube can be used as an example of backup or expansion for solar systems.

Active ventilation at temperatures above +35 ° C
Air supply and lost heat pipe
Solar charge controller for solar hybrid system with deep discharge protection of the battery
exhaust pipe
Electrical connection Fuel cell
Cable glands for external connection (Skintop STR-M M25)
Installation space for batteries
Installation space for up to 2x M28 fuel cartridges

Model: ProCube 2060A
Temperature range: -20 ° C to +50 ° C / -4 ° F to 122 ° F
Rated voltage: 12 V DC and 24 V DC
Case: aluminum with carrying handles
Protection: IP 33
Dimensions: 937 x 787 x 480 mm / 36.9 x 31.0 x 18.9 in
Weight: 17,5 kg

Configuration possibilities
Compatible fuel cells: Pro 800 Duo / 2400 Duo
Compatible fuel cartridges EFOY: M10, max. 2x M28 (M28 adapter required)
Compatible batteries: Lead-Gel, AGM, LiFePO4
Battery Installation Space: 460 x 370 x 230 mm / 18.1 x 14.6 x 9.1 in (Suitable for 2x 130 Ah)
Solar charge controller (charge current / module max.): Standard 20 A / 20 A Optional: 30 A / 30 - 40 A.
