ProEnergyCase - Power Supply / Wireless / Fuel Cell

New product


ProEnergyCase 2020P
Mobile energy solution, off-grid
Installation space for 2 batteries and 2 M10 max fuel cartridges
Gap Temperature -20 ° C to +50 ° C -4 ° F to 122 ° F
Solar charge controller (solar hybrid system)
IP33 protection case

More details

Traditional energy sources are often unreliable or offer only short periods of autonomy. Solar systems can not guarantee a reliable power supply throughout the year, the batteries have a very limited autonomy and the generators produce harmful exhaust gases. EFOY Pro fuel cells are the ideal power generator to meet all requirements for stationary and mobile applications.

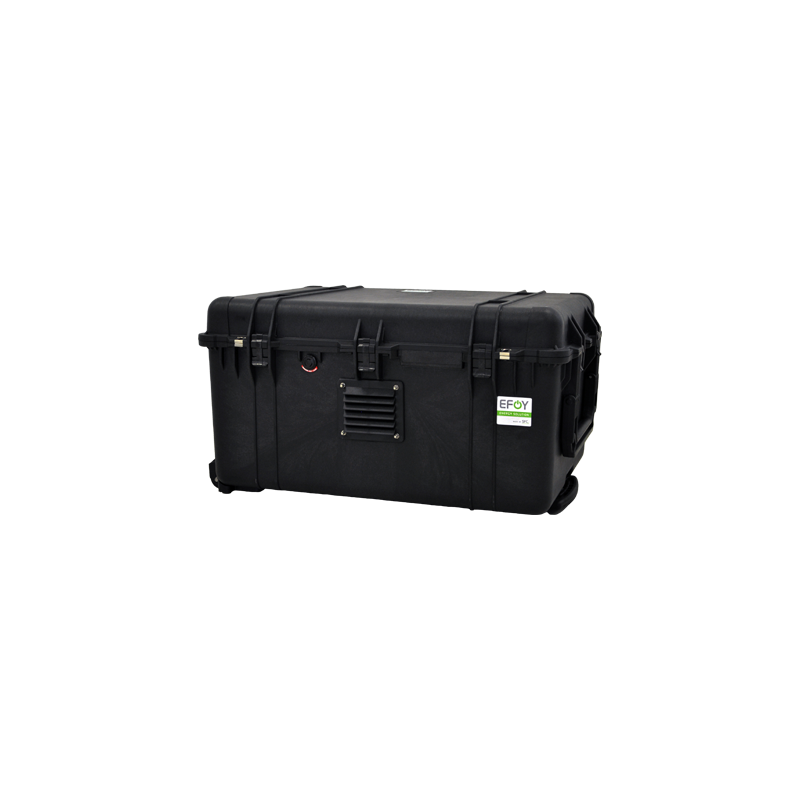

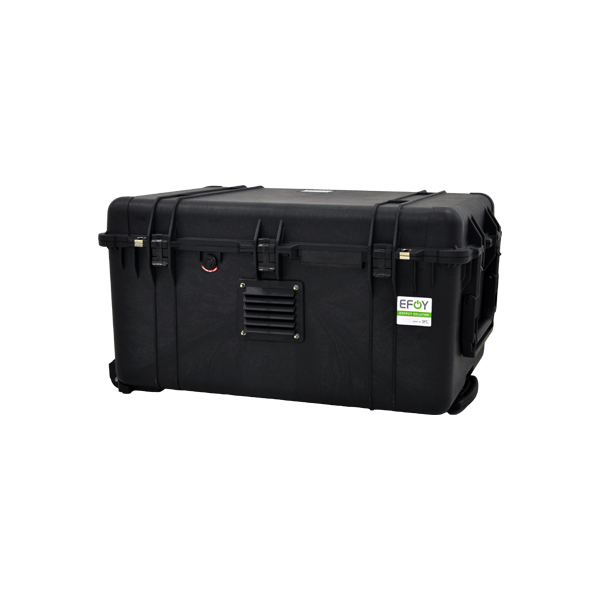

ProEnergyCase is a complete, portable and maintenance-free solution for a wireless power supply. With a rugged housing and quick commissioning, the ProEnergyCase can be used anytime, anywhere. In this ProEnergyCase cabinet You can integrate an EFOY Pro fuel cell, up to two batteries and two M10 fuel cartridges. Thanks to the integrated solar charge controller, ProEnergyCase is ideal for hybrid operation with solar systems. It is the guarantee of a long autonomy without any intervention of the user. ProEnergyCase can be easily transported in a car. Commissioning and transport can be carried out by one person only. The wheels under the ProEnergyCase make it very mobile.

Active ventilation at temperatures above +35 ° C
Air supply and waste heat duct with protection of deep discharge of the battery
Exhaust pipe
EFOY Pro mounting plate
Electrical connection EFOY Pro fuel cell
Cable glands for external connection (Skintop STR-M M25
Installation space for batteries
Installation space for up to 2 M10 fuel cartridges

Model: ProEnergyCase 2020P
Temperature range: -20 ° C to +50 ° C / -4 ° F to 122 ° F
Rated voltage: 12 V DC and 24 V DC
Safe: Pelicase 1630, including handlebars and transport wheels
Protection: IP 33
Dimensions: 795 x 615 x 444 mm
Weight (empty): 18 kg

Compatible fuel cells: EFOY Pro 800 Duo / 2400 Duo
Compatible fuel cartridges: max. 2x M10
Compatible batteries: Lead-Gel, AGM, LiFePO4
Battery installation space: (1x 130 Ah): 410 x 176 x 227 mm; (2x 60 Ah): each 229 x 138 x 227 mm
Solar Charge Controller 1 (Max Load / Module Current): Standard: 20 A / 20 A; Optional: 30 A / 30 A
