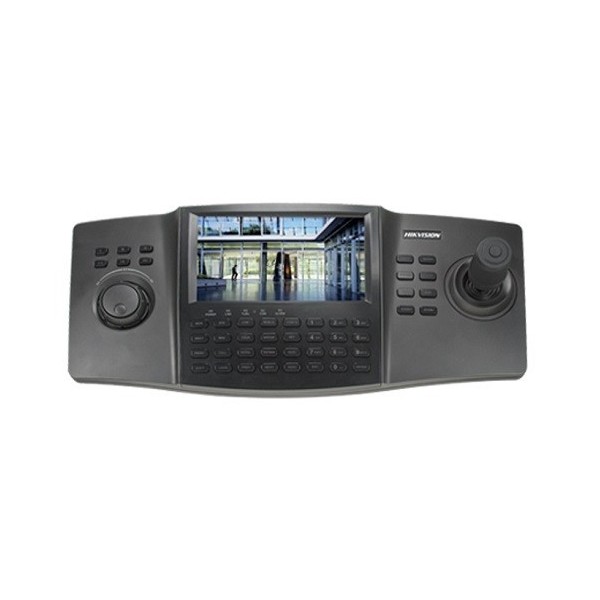

Network keyboard for PTZ DS-1100KI Joystick / Control panel

New product

Quotation

The DS-1100KI network keyboard can be used to control a network camera / dome, PC, DVR etc. Decoded video display on a screen, matrix control and the price supported by 1 video viewing channel, 1080P resolution. 7 "touch screen with 4-axis joystick.

More details

Description
7 inch TFT touch screen at 800 × 480 resolution
4 axis joystick
Live display and video playback on screen up to 1080P resolution;
Compatible with DVR / DVS, matrix, network / dome camera, PC-DVR, etc.
Macro command operation
Display of decoded video on monitor or video screen
Shortcut keys for dome control, definition, and preset call.
Shortcut keys for playback operation
Shortcut keys for input group and output group
Shortcut keys for wiper and light control operation.
1-channel video decoding for live viewing
Video capture and recording to local U-flash disk
Supports 3 operators, and each user is authorized to use 1280 devices.
WEB server configuration support
Support for configuration by the keyboard configuration tool.
MVC system configuration and control
Support for analog matrix control with ZT-1.0, ZT-2.0, EXTRON or CREATOR protocol.
Control up to 255 analog domes via RS-485 connection
Accessible by platform software.

characterstics
Model: DS-1100KI
Control mode: IP
TFT LCD panel: 7 ”TFT LCD monitor with touch screen
Resolution: 800 × 480
Joystick: 4-axis joystick
Audio input: 1-way connector, 3.5 mm (2.0 Vp-p, 1 kΩ)
Audio output: 1-way connector, 3.5 mm (linear, 560 Ω)
Network interface: 1 Ethernet interface 10M / 100M / 1000M
RS-232 interface: 1, RS-232 interface
RS-485 interface: 1, RS-485 interface
USB interface: 1, USB2.0 (for data storage and device upgrade)
Current source: 12V DC
Power consumption: ≤ 15W
Operating temperature: -10 ° C ~ 55 ° C (14 ° F ~ 131 ° F)
Working humidity: 10% ~ 90%
Dimensions (W × D × H) 435 × 193 × 110 mm; 17.13 ”× 7.60” × 4.33 ”
Weight: 2 kg (4.41 lb)
