Monocular thermal portable observation DS-2TS03-25UM / W

New product

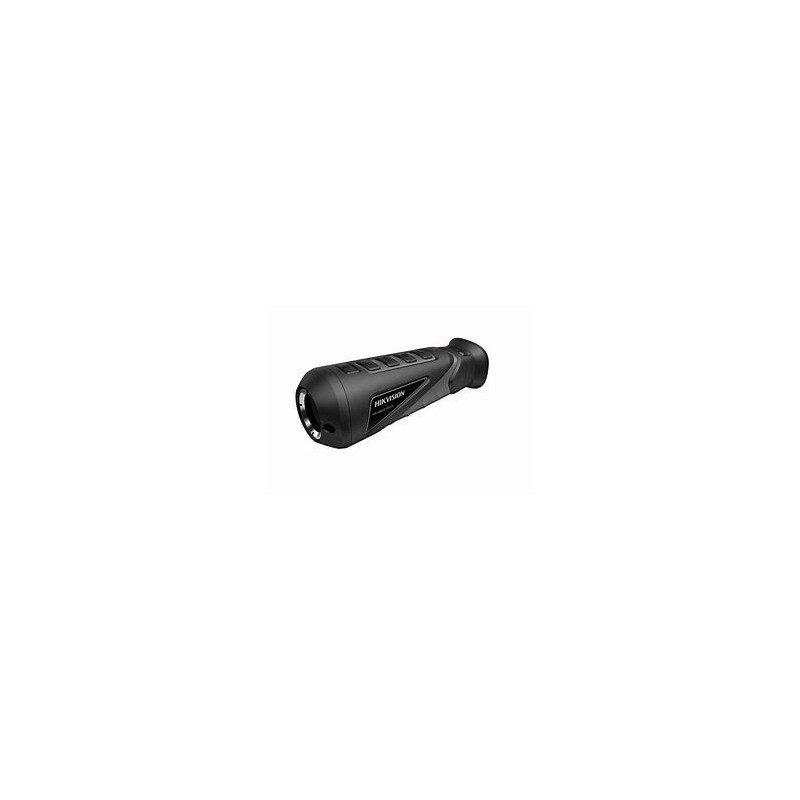

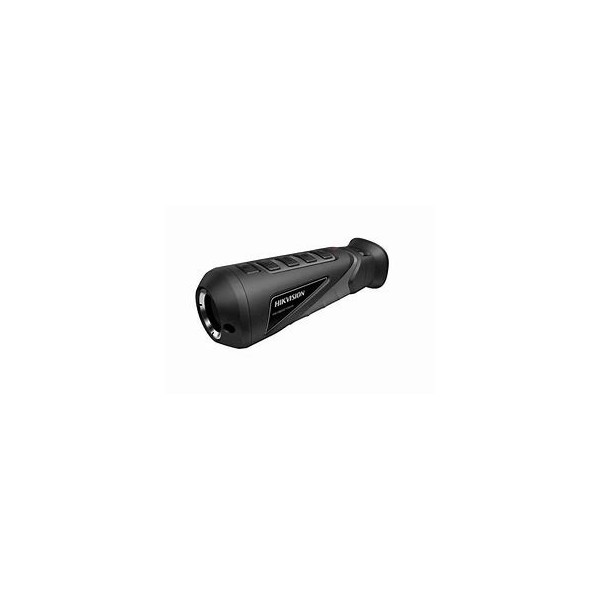

Hikvision DS-2TS03 portable thermal observation monocular. Equipped with a 384×288 infrared detector. OLED display 1024×768. Supports observation, hot spot tracking, distance measurement, Wi-Fi hotspot, etc...
Built-in high sensitivity thermal detector for clear vision even in total darkness.

More details

Distance Measurement: The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark: The device detects and marks the hot spot of highest temperature.
Wi-Fi Hot Spot: Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
GPS Function: The device can be located with GPS system.
Storage: Built-in memory module supports video recording/snapshot capturing.
Digital Zoom: Device supports 2× digital zoom.
LED light: LED light supplement makes the device a torch in the wild field.

DS-2TS03-25UM / W Monocular Thermal Observation
Thermal Module:
Image sensor Uncooled Focal Plane Arrays
Max. Resolution 384 × 288
Response waveband 8μm to 14μm
NETD < 50mk (@25°C,F#=1.0)
Lens (focal length) 25mm
MRAD 0.68
Field of View 14.88° × 11.19°
F number 1.0
Image Display:
Monitor 0.39-inch, OLED, 1024 × 768
Black hot White hot Red hot Support
Hot TrackWIFI Support
Storage Built-in memory module (16GB)
Digital Zoom 2×
LED Light Supplement Support
Capture Snapshot Support
Record Video Support on-board video / image recording
GPS Support
Power Supply:
Battery Type Lithium Battery
Battery Operating Time Up to five hours continuous running (with GPS function and Wi-Fi hot spot function off)
Battery Capacity Display Support General:
Power 5V DC/2A, 2W
Working Temperature  -30 °C to 55 °C (-22 °F to 131 °F)
Protection level IP67
Drop Test Height 2 m (6.56 feet)
Dimension (L x W x H) 185 mm × 74 mm × 66 mm (7.28 ″ × 2.91 ″ × 2.60 ″)
Weight 460 g (0.20 lb)
