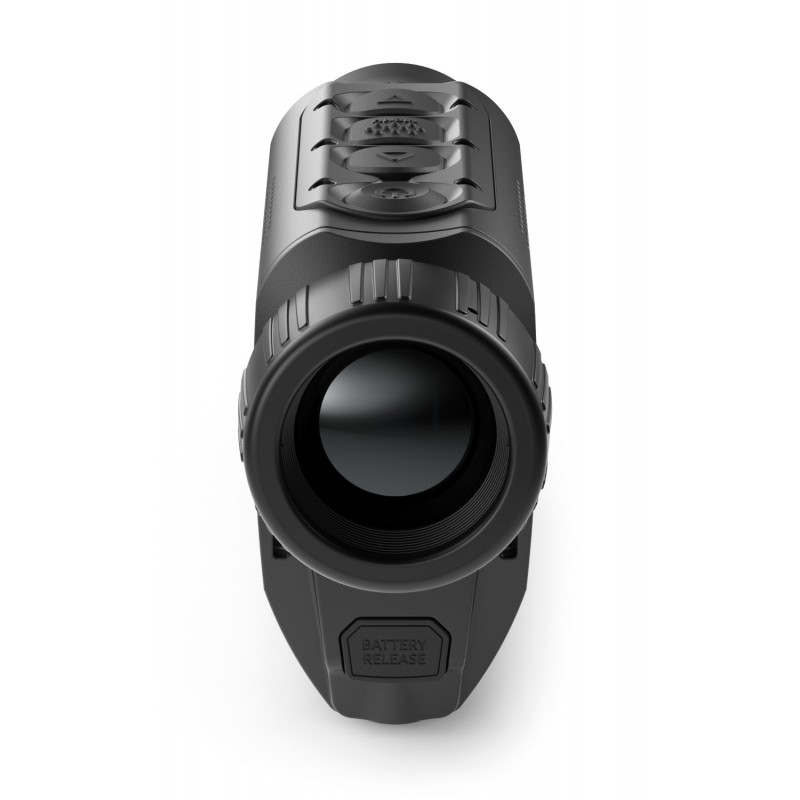

AXION KEY XM30 - Monocular Thermal Imaging Camera

New product


AXION KEY XM30. Monocular thermal imaging digital zoom for optimal  dentification. Long range of detection even in the dark. AMOLED HD micro display Waterproof IPX7. Instant start with a new electronic configuration. Ideal for tracking and detection.

More details

Small pocket size
Designed to fit perfectly in a standard size hand or pocket, the Axion provides comfortable handling and handling, as well as easy transportation.

High optical magnification
The Axion offers the highest magnification in the category of compact thermal cameras. Considerable optical magnification that can be increased with digital zoom to allow optimal identification of the objects observed.

Long range detection
The powerful objective lens combined with a 12 μm professional thermal imaging sensor offers exceptional detection capabilities. A standard 1.8m subject can be detected at a distance of 1700m in the most complete darkness.

AMOLED HD micro display
The AMOLED micro-display has high contrast in HD resolution delivers crisp images and vivid colors. The display guarantees excellent image quality and flawless performance, even in freezing weather.

IPX7 waterproofness rating
The waterproof IPX7 rating protects against heavy rain, snow or other precipitation. The Axion is designed to work perfectly even after immersion in 0.9m of water for up to 30 minutes.

Picture in Picture function
Upon activation, the Image in Picture feature displays a second small image with magnification at the top of the screen. This small image makes it possible to enlarge a target, while preserving the rest of the visible field of vision.

Color pallet
The 8-color palette enhances visualization in a variety of conditions. While the classic "Heat in White" mode is exceptionally versatile, the "Heat in Black" mode is often preferred for detecting wild animals at night.
The red monochrome helps reduce or prevent the backlight coming out of the eyepiece.
Sepia often improves long-range viewing while "Heat in Red", "Rainbow" and "Ultramarine" improve the temperature differences of various object attributes. Purple helps identify objects faster.

Mini B-Pack Feed System
Miniature feeders used in Axion models provide sufficient running time and can be replaced quickly. Mini B-Pack batteries can be charged quickly with the included charger or in the device connected to the USB port.

2 μm thermal imaging sensor
The new 12 μm pixel pixel thermal imaging sensor provides higher optical magnification and viewing distance, while making the camera more compact.

Instant start
Thanks to the revolutionary new electronic configuration, the device can be started almost instantly. A quick start saves energy and extends the operating time. The device can be kept in a pocket and activated quickly at the right time.

Sturdy magnesium alloy housing
The lightweight magnesium alloy case provides structural rigidity and high robustness, with minimal space and weight.

Diameter: 30 mm
Magnification: 2.5x - 10x
Digital zoom: 4X
Detection distance: 1200 m
Refresh rate: 50 Hz
Screen type: LCOS
Resolution: 320 x 240
Screen Resolution: 960 x 720
Power supply: B-pack APS3 (Li-ion) *
Autonomy (h): + 4
Operating temperature: -10 ° C to + 40 ° C
Waterproof: Yes - IPX7
Color: Black
Dimensions: 143 x 41 x 69 mm
Weight: 250g
