LYNX800
New product
LYNX800: 40x Optical Zoom Surveillance Camera.
High-precision observations over 1.5 km. 20-800 mm focal length + 1.25x digital zoom.
Advanced optical stabilization and EIS+OIS digital stabilization
License plate recognition over 1 km.
With its 800 mm motorized zoom, this camera can be used for border or maritime surveillance, as well as for police operations.
The SX800, developed with the company’s unique optical technology and cutting-edge image processing technology, features a high-performance built-in FUJINON zoom lens, capable of 40x optical zoom to offer a focal length range extending to 800mm, the world’s longest telephoto coverage.It is an epoch-making surveillance camera that features advanced image stabilization performance, fast and accurate autofocus with the AF speed as fast as 0.3 of a second, and outstanding heat haze / fog reduction function, making it possible to instantaneously capture clear footage of a distant subject.
LYNX800 Stabilized IP67 Long-Range Surveillance System
The 40x zoom (20-800mm) allows you to observe objects even a few kilometers away. Since stability and heat flicker play an important role at this great distance, the system offers several other important features. The integrated optical image stabilizer guarantees a blur-free image, even at great distances and in windy conditions. Thanks to its high light sensitivity, it is possible to capture color images with little noise, even in the dark. The LYNX800 series is ideally suited for many police tasks. It allows for effective surveillance and security at borders, forests, airports, ports, and other public places.
40x optical zoom
The SX800 is equipped with a 40x optical zoom lens that covers a broad range of focal lengths from 20mm on the wide angle end to 800mm on the telephoto end. It is complemented with 1.25x digital zoom to achieve long-range surveillance equivalent to 1000m in focal length.
20mm to 800mm
High-performance image stabilization
New image stabilization system
The SX800 combines optical image stabilization (OIS) and electronic image stabilization (EIS) to accurately compensate for camera shake, typically caused by gusts and footing vibrations at the site of camera installation. The system is particularly effective when shooting in the ultra-telephoto range, which is susceptible to even the slightest of shakes.
Without image stabilization With image stabilization
High-performance EIS
In the EIS mode, the SX800 uses a sensor large enough for its lens’s effective diameter to secure full HD resolution (1920 x 1080), thereby delivering footage of premium quality. The combined use with OIS also improves the durability of the image stabilization system substantially.
Full HD（1920×1080）
Recording area
General sensor SX800's sensor
Use of new devices
The SX800 sports high-precision gyro sensors to accurately detect minute vibrations that could not be detected previously. The use of newly-developed high-thrust linear motor delivers an advanced level of accuracy and tracking performance.
High-speed AF system
On-sensor phase detection AF
The on-sensor phase detection AF uses phase detection pixels across the sensor to instantaneously measure distance according to the displacement of incident lights. The SX800 also offers “contrast AF,” which detects areas of high contrast in images at high accuracy, and automatically switches to the optimum AF setting.
- 1. Micro lens
- 2. Color filter
- 3. Phase detection filter
- 4. Phase detection pixels
- 5. Photo diode
Rear Focus mechanism
The use of the Rear Focus mechanism has significantly reduced the weight of the focusing lens group. This has also dramatically increased the focus drive speed to enable “continuous AF.” Users can choose between “Continuous AF,” “Quick AF” and “Manual Focus” according to the conditions where the camera is used.
Image processing technology
Low light conditions
The use of the highly sensitive sensor and the effect of advanced noise reduction mean the SX800 can shoot clear footage with minimal noise even in low light conditions.
ISO 400 ISO 204800
Fog reduction
The SX800 uses a unique imaging technology to bring vivid clarity to hazy images caused by light diffusion with airborne mist droplets and dust.
Fog reduction OFF Fog reduction ON
Heat Haze reduction
The SX800 uses a unique image processing technology to reduce the shimmering effect of heat haze, caused by large difference in atmospheric temperatures, to make the entire images easier to see.
Simplified setup
Cameras with built-in lens
Conventional surveillance systems require the adjustment of optical axis and flange focal length when mounting a lens on a camera. The SX800, which carries a built-in lens, is shipped with such settings optimally adjusted to bring out maximum performance. The design also eliminates the need for complicated wiring, thereby significantly reducing man-hours at the time of installation.
18 other products in the same category
ALLWAN SECURITY
LR2000IR Ultra Long Range laser infrared...
24/7 Day/Night Surveillance The LR2000IR is designed by Allwan Security specifically for critical infrastructure and perimeter protection. The sensor payload enables the LR2000IR to provide images in virtually any environment from heavy fog to complete darkness.
Long range tactical PTZ Ultra Low Light 800...
Condor: Ultra Long Range Tactical PTZ ULL Camera for law enforcement & army. Interoperability for border and maritime surveillance. High Resolution 60x Optical Zoom, Full HD1080p resolution Ultra Low Light Color 0.00015 lux, B/W 0.0001 Lux Very long focal length 800 to 1600mm 360° endless pan rotation, Day & 1 . Hybrid IPC & analog. waterproof...
ALLWAN SECURITY
Tactital Long range PTZ camera Laser IR...
Long Range PTZ Camera day Night IR Zoom 40X optical Objectif 7 to 280 mmUltra HD 2MP 1920 x 1080p3D DNR; Low bitrate, digital WDRProjecteur laser invisible 940 nm 500mStockage 128 Go cryptéTransmission 4G LTELow Power consumption <6WDurci étanche IP67Compact Ø 188 x 273.4 mm
LOKI-SWIR PTZ Rugged HD 1280 SWIR infrared...
Key Features and BenefitsThe best performing HD VIS-SWIR PTZ camera in the World!• 1280 x 1024, 5μm pitch SWIR technologyEnables highest resolution imaging from 1μm to 1.7μm• Enables highest SWIR detection limit• On-board Automated Gain Control (AGC)Enables clear video in all light conditions• Enables highest quality photos• Pelco-D commandsProvides full...
FALCON2M40X FALCON PTZ rugged covert camera...
PTZ Camera – Rugged & Sealed IP67 Hybrid Ethernet & Analogue D1 /Pelco-D Very High Sensitivity sensor (Ultra Low Light) Exceptional image quality, even in dark IVS intelligent Video Software environments with little or no lighting. Full HD/1080P (1920x1080) 2MP Resolution 360° Continuous Rotation Flip & Mirror Functions No initialisation of...
Fujinon
SX800 - Camera de surveillance longue...
Long-range surveillance40x optical zoomLicensed by TOKYO TOWERThe SX800 is equipped with a 40x optical zoom lens that covers a broad range of focal lengths from 20mm on the wide angle end to 800mm on the telephoto end. It is complemented with 1.25x digital zoom to achieve long-range surveillance equivalent to 1000mm in focal length.
SX1600 long range multi-purpose camera Fujinon

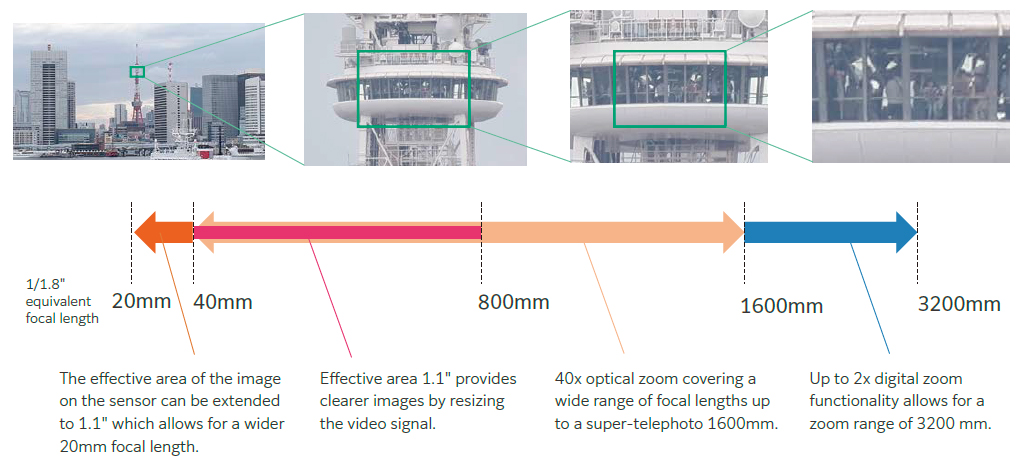

The SX1600 is a long-range camera system featuring a 40x-zoom FUJINON lens that covers a focal length range from the wide-angle 40mm to the world’s longest 1600mm telephoto. It is equipped with a newly developed image stabilization system as well as fast and accurate Autofocus to capture a distant subject clearly and instantaneously.FUJINON lens...
