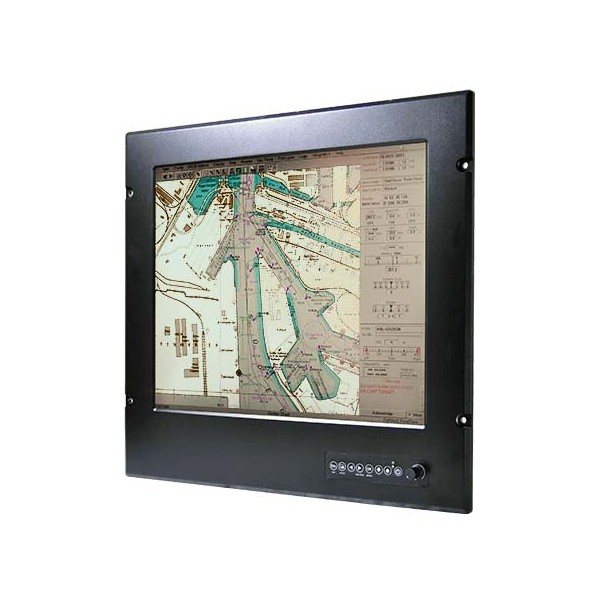

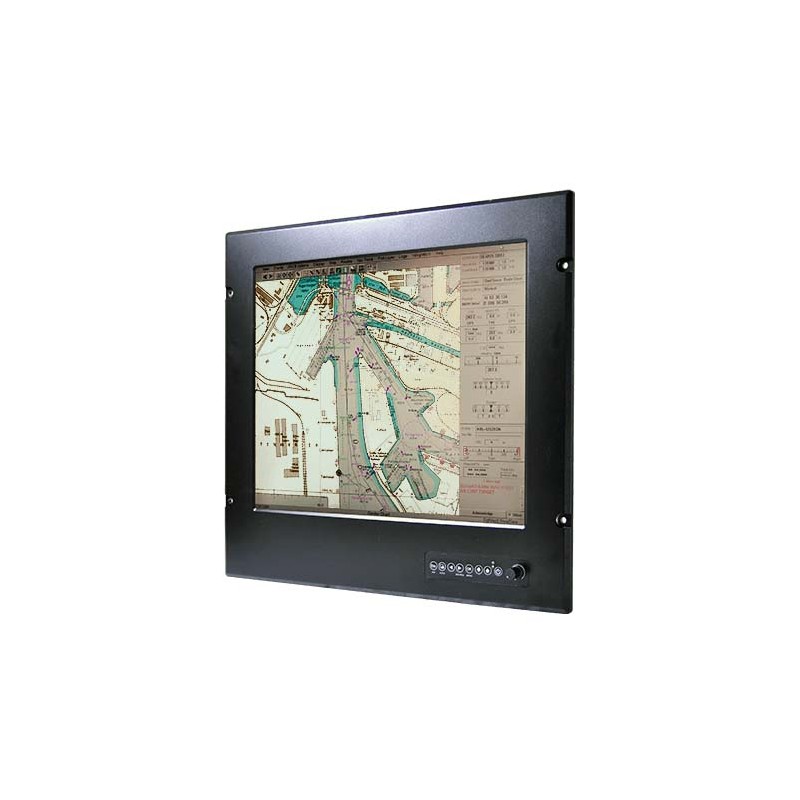

60945-DISP15 Ship's Bridge Monitor 15"
New product
15″ Wheelhouse Display DNV / IEC 60945 / IACS-E10 Certified
- Available in resistive touchscreen or non-touch glass surface versions
- Standard brightness of 500 nits – optional 1000 nits available
- Designed for marine applications
- Waterproof front panel with IP66 rating
- Isolated 24 V DC power supply for reliable onboard integration
- Compatible with VGA, DVI, and AV video inputs
- In compliance and certified with IEC 60945, DNVGL, and IACS E10 standards
- Perfect for ship bridges and wheelhouses in service
Maritime Monitor 15″ 60945-DISP15 – Compliant with IEC 60945 Standards
Description
The 60945-DISP15, a 15-inch marine display, is designed for naval applications demanding durability, reliability, and compliance with international standards. In compliance and certified with IEC 60945 (4th edition), DNVGL-CG-0339, and IACS-E10, this monitor integrates seamlessly into navigation stations, ECDIS systems, onboard radars, maritime surveillance devices, and embedded automation systems.
High-Performance Display for Marine Use
Featuring a 4:3 aspect ratio and a resolution of 1024 × 768 pixels, this screen delivers sharp, clear visualization of critical data. Its standard brightness is 500 nits, with an optional upgrade to 1000 nits, ensuring excellent visibility even under direct sunlight or on exposed bridge locations.
Robust Build Tailored for Marine Environments
The front panel is IP66 rated, protecting against water spray, dust, and harsh maritime conditions. Its fanless aluminum chassis prevents internal dust accumulation, minimizing maintenance needs. The resistive touchscreen allows precise operation even when wearing gloves or in humid, vibrating environments.
Extensive Connectivity and Advanced Features
Compatible with multiple video inputs (VGA, DVI-D, composite, S-Video), the 60945-DISP15 offers flexible integration options including a Picture-in-Picture (PIP) function to display two sources simultaneously. A front-mounted potentiometer allows smooth brightness adjustment from 0 to 100%, ideal for nighttime operation or ECDIS configurations.
Power Supply Optimized for Embedded Systems
This monitor operates natively at 24 V DC but supports a wide input range from 9 to 36 V DC, ensuring reliable integration across various marine electrical systems, even with voltage fluctuations.
Typical Applications
Maritime navigation stations
Ship control consoles
Marine radars and electronic charting systems
Offshore control room displays
Certified IEC 60945 environments
Technical Specifications
| Item | Specification |
|---|---|
| Model | 60945-DISP15 |
| Screen Size | 15″ – 304.10 × 228.10 mm |
| Aspect Ratio / Resolution | 4:3 – 1024 × 768 pixels |
| Brightness | 500 nits (optional 1000 nits) |
| Contrast Ratio | 2500:1 |
| Colors | 16.7 million |
| Viewing Angles | H: 88°/88° – V: 88°/88° |
| Touch Technology | Resistive (supports glove operation) |
| Screen Options | Resistive touch film / Non-touch AR anti-glare glass |
| Protection Rating | IP66 (front), IP54 (rear) |
| Chassis | Metal with reinforced aluminum front – fanless |
| Mounting | Panel mount or external VESA bracket |
| Operating Temperature | –15 °C to +55 °C |
| Humidity | 5%–95% RH (non-condensing) |
| Shock Resistance | 15 G (11 ms) |
| Vibration Resistance | 0.7 g – DNVGL-CG-0339 Class A compliant |
| Video Inputs | 1× VGA, 1× DVI‑D, 1× Composite (RCA), 1× S‑Video |
| User Controls | Front on/off button, front OSD, 0–100% brightness knob |
| Additional Ports | 1× RS‑232 for remote control, 1× RS‑232/USB for touchscreen |
| Power Input | Isolated 24 V DC (input range: 9–36 V DC) |
| Power Consumption | 35 W (typical) |
| PIP Display | Picture-in-Picture supported |
| Status LED | Power indicator |
| Included Accessories | DVI‑D cable, VGA cable, RS‑232 for touch, RS‑232 for remote, S‑Video, composite, user manual |
| Certifications | CE, FCC, DNV-CG-0339, IEC60945 4th, IACS E10 |
