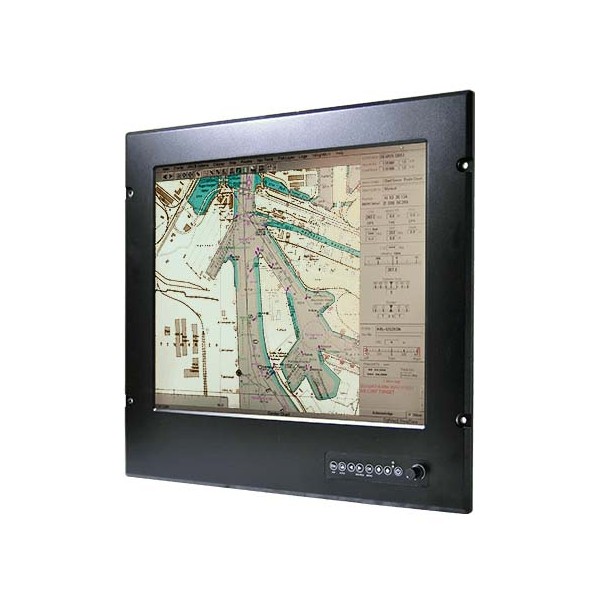

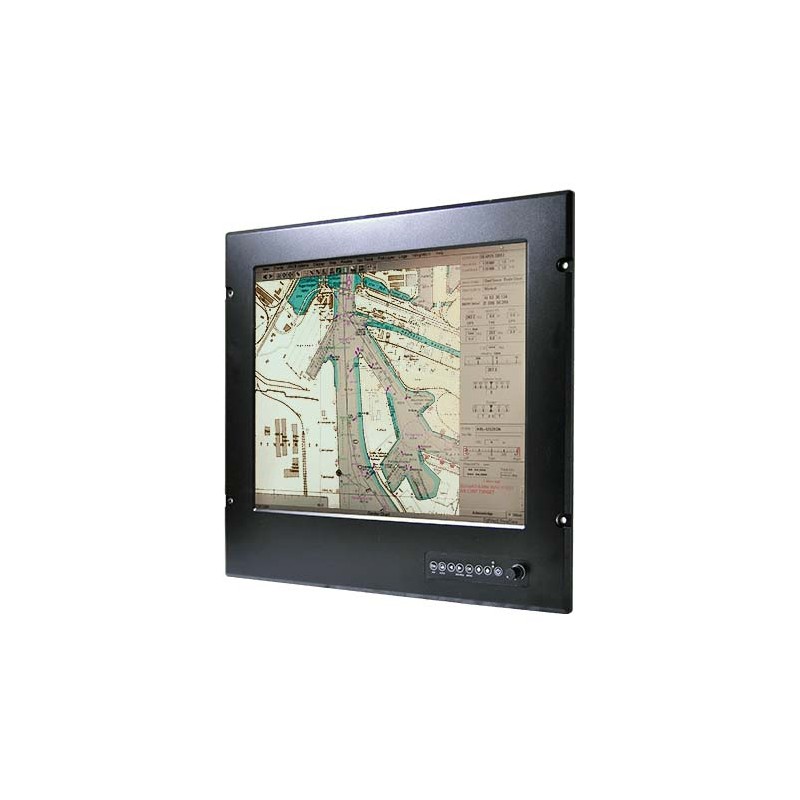

60945-DISP21 Marine Vessel Monitor 21"
New product
21″ Marine Display for Ship Bridge Integration
Designed for navigation consoles and piloting stations, this 21" monitor is designed to be in compliance with IEC 60945, DNVGL, and IACS E10 standards.
It supports VGA, DVI, and AV inputs, with a 24 VDC isolated power supply for secure onboard integration.
The IP66-rated front resists moisture, dust, and sea spray, ensuring durability in harsh marine conditions.
Available with a resistive touchscreen or protective glass, it delivers 1000 nits brightness for clear viewing in daylight.
21" Marine Monitor for Embedded Navigation Consoles
Rugged Design for Harsh Marine Environments
The 60945-DISP21 features a durable aluminum chassis without active ventilation to prevent dust ingress and reduce maintenance needs. Its IP66-rated waterproof front panel protects against water splashes, humidity, and salty marine atmospheres. A resistive touchscreen option is available, suitable for use with gloves or in vibration-heavy conditions.
High-Brightness Display for Clear Visibility
This 21-inch LCD offers a crisp 1600 x 1200 resolution with a 4:3 aspect ratio. Its powerful backlight reaches up to 1000 nits, ensuring excellent readability even in bright sunlight—ideal for navigation stations demanding accurate and reliable data display.
Extensive Video Compatibility and Advanced Features
Supports various video inputs including VGA, DVI-D, S-Video, and composite. Equipped with Picture-in-Picture (PIP) to display two sources simultaneously. Brightness is smoothly adjustable from 0 to 100% via a front-mounted control, perfect for adapting to night mode or ECDIS operation.
Power Supply Optimized for Marine Systems
Operates on native 24 V DC power, with an input range of 9 to 36 V DC, ensuring easy integration into a wide range of marine electrical systems, even with voltage fluctuations.
Compliance with International Maritime Standards
IEC 60945 (4th edition), DNVGL-CG-0339, and IACS-E10 standards compliant, making it a reliable solution for critical maritime applications.
Recommended Applications
- Integrated navigation consoles
- Ship piloting and control rooms
- Radar and electronic chart displays
- Embedded automation systems
- Offshore monitoring centers
Technical Specifications
| Item | Specification |
|---|---|
| Model | 60945-DISP21 |
| Screen Size | 21.3″ – 432 × 324 mm |
| Aspect Ratio / Resolution | 4:3 – 1600 × 1200 pixels |
| Brightness | 1000 nits |
| Contrast Ratio | 1000:1 |
| Colors | 16.8 million |
| Viewing Angles | H: 89°/89° – V: 89°/89° |
| Touch Technology | Resistive (supports glove operation) |
| Screen Options | Resistive touch film / Non-touch AR anti-glare glass |
| Protection Rating | IP66 (front), IP54 (rear) |
| Chassis | Metal with reinforced aluminum front – fanless |
| Mounting | Panel mount or external VESA bracket |
| Operating Temperature | –15 °C to +55 °C |
| Humidity | 5%–95% RH (non-condensing) |
| Shock Resistance | 15 G (11 ms) |
| Vibration Resistance | 0.7 g – DNVGL-CG-0339 Class A compliant |
| Video Inputs | 1× VGA, 1× DVI‑D, 1× Composite (RCA), 1× S‑Video |
| User Controls | Front on/off button, front OSD, 0–100% brightness knob |
| Additional Ports | 1× RS‑232 for remote control, 1× RS‑232/USB for touchscreen |
| Power Input | Isolated 24 V DC (input range: 9–36 V DC) |
| Power Consumption | 50 W (typical) |
| PIP Display | Picture-in-Picture supported |
| Status LED | Power indicator |
| Included Accessories | DVI‑D cable, VGA cable, RS‑232 for touch, RS‑232 for remote, S‑Video, composite, user manual |
| Certifications | CE, FCC |
