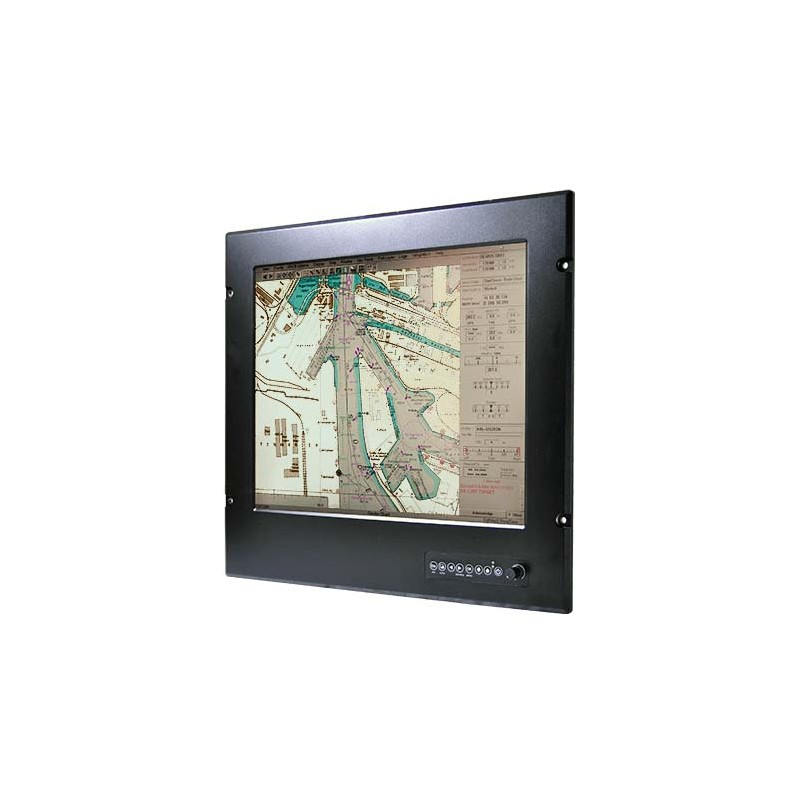

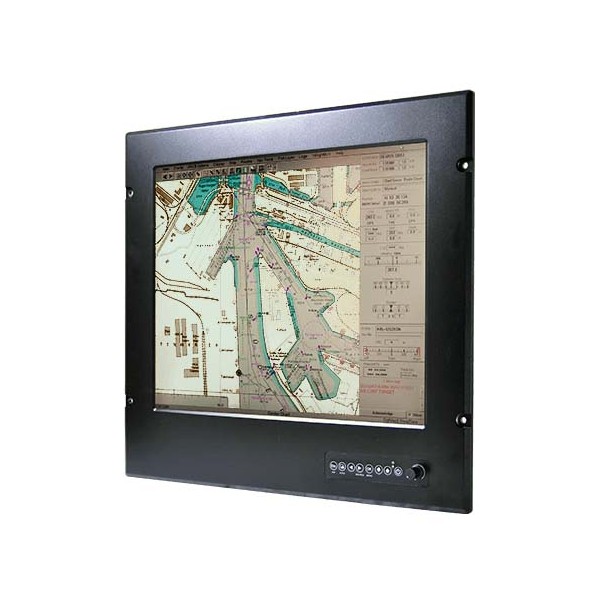

60945-DISP19 Vessel Navigation Monitor 19"
New product
19″ Marine Display Designed for Demanding Onboard Applications
Engineered and certified to meet the stringent standards of DNV, IEC-60945, and IACS-E10, this 19-inch display is built for critical maritime environments.
Available with a resistive touchscreen or a non-touch protective glass front panel, it offers flexible integration options depending on operational needs.
Specifically developed for the maritime industry, this monitor is optimized for the technical challenges of seafaring environments.
The front panel complies with IP66 protection standards, offering excellent resistance to water ingress, humidity, and dust.
Compliant and certified with IEC 60945, DNVGL, and IACS E10 standards.
Perfect for ship bridges, helm stations, and control rooms across a wide range of marine vessels.
19″ Embedded Marine Display for Integration into Navigation Consoles
Overview
The 60945-DISP19 model is a professional-grade 19-inch monitor specifically engineered for the demanding needs of the maritime industry. Built to be both durable and dependable, it complies with leading international standards, including IEC 60945 (4th edition), DNVGL-CG-0339, and IACS-E10 - Certificates on demand. This display is ideally suited for embedded control stations, ECDIS setups, onboard radar systems, supervisory interfaces, and automation systems at sea.
Optimized Display Performance for Marine Applications
Featuring a 4:3 aspect ratio and a resolution of 1280 × 1024 pixels, the screen ensures precise and accurate visualization of critical data. Its LCD panel delivers a standard brightness of 400 nits, ensuring good readability even under high ambient lighting conditions.
Ruggedized Design for Harsh Environments
The front panel is IP66-rated, offering reliable protection against moisture, water spray, and airborne particles. The monitor is enclosed in a fanless, sealed aluminum chassis that prevents internal dust accumulation and reduces maintenance needs. The optional resistive touchscreen enables responsive control—even when wearing gloves or operating in humid, vibration-prone conditions.
Versatile Video Interfaces and Advanced Display Features
The 60945-DISP19 supports a broad range of video input formats, including VGA, DVI-D, composite, and S-Video. It also includes a Picture-in-Picture (PIP) function, allowing operators to view two video sources at once. A front-mounted dimmer knob provides smooth brightness adjustment from 0% to 100%, enhancing usability for night operations or in ECDIS-compliant settings.
Power Supply Engineered for Marine Systems
This monitor operates natively at 24 V DC and supports a wide input range from 9 to 36 V DC, making it easy to integrate into various shipboard power systems—even in the presence of voltage fluctuations.
Recommended Use Cases
Bridge-mounted navigation consoles
Vessel control and steering workstations
Radar display and electronic chart systems
Offshore platform monitoring stations
All environments requiring IEC 60945 certification
Technical Specifications
| Item | Specification |
|---|---|
| Model | 60945-DISP19 |
| Screen Size | 19″ – 376.32 × 301.60 mm |
| Aspect Ratio / Resolution | 4:3 – 1280 × 1024 pixels |
| Brightness | 400 nits |
| Contrast Ratio | 1000:1 |
| Colors | 16.7 million |
| Viewing Angles | H: 85°/85° – V: 80°/80° |
| Touch Technology | Resistive (supports glove operation) |
| Screen Options | Resistive touch film / Non-touch AR anti-glare glass |
| Protection Rating | IP66 (front), IP54 (rear) |
| Chassis | Metal with reinforced aluminum front – fanless |
| Mounting | Panel mount or external VESA bracket |
| Operating Temperature | –15 °C to +55 °C |
| Humidity | 5%–95% RH (non-condensing) |
| Shock Resistance | 15 G (11 ms) |
| Vibration Resistance | 0.7 g – DNVGL-CG-0339 Class A compliant |
| Video Inputs | 1× VGA, 1× DVI‑D, 1× Composite (RCA), 1× S‑Video |
| User Controls | Front on/off button, front OSD, 0–100% brightness knob |
| Additional Ports | 1× RS‑232 for remote control, 1× RS‑232/USB for touchscreen |
| Power Input | Isolated 24 V DC (input range: 9–36 V DC) |
| Power Consumption | 45 W (typical) |
| PIP Display | Picture-in-Picture supported |
| Status LED | Power indicator |
| Included Accessories | DVI‑D cable, VGA cable, RS‑232 for touch, RS‑232 for remote, S‑Video, composite, user manual |
| Certifications | CE, FCC, DNV-CG-0339, IEC60945 4th, IACS E10 |
