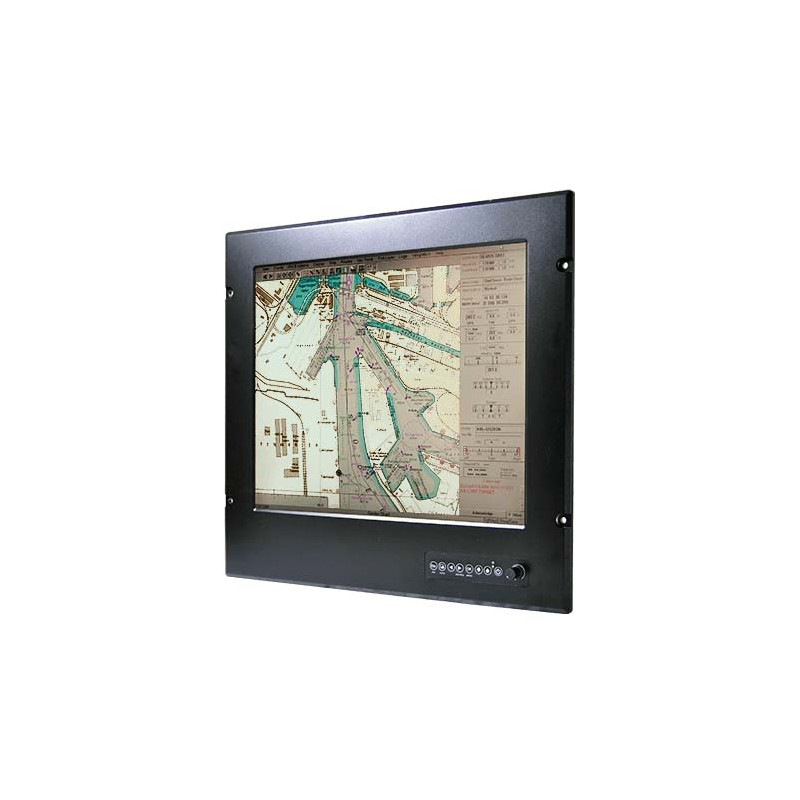

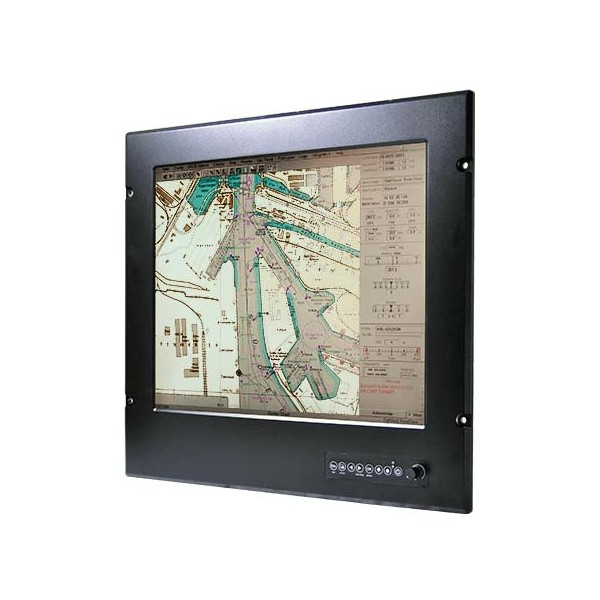

60945-DISP12 Navigation bridge display 12"
New product
12″ Flush-Mount Display for Bridge Use
- ALLWAN 12″ Naval Monitor – Model 60945-DISP12
- Available with resistive touchscreen or non-touch glass surface
- Brightness: 500 nits – 1000 nits option available
- Designed for demanding maritime environments
- Front panel sealed to IP66 standard
- Isolated 24 VDC power input ensures safe onboard integration
- Supports VGA, DVI, and AV video signals
- Compliant with IEC 60945, DNVGL, and IACS E10 international standards (not certified)
Ideally suited for ship bridges and helm stations
12″ Marine Monitor 60945-DISP12 – IEC 60945 Compliant
Description
The 60945-DISP12 model is a ALLWAN 12-inch marine display , designed for naval applications where reliability, durability, and compliance with international standards are essential: IEC 60945 (4th edition), DNVGL-CG-0339, and IACS-E10, this monitor integrates seamlessly into navigation stations, ECDIS systems, onboard radars, marine monitoring devices, and embedded automation systems.
Optimized Display for Marine Environments
Featuring a 4:3 aspect ratio and 1024 × 768 resolution, the screen ensures crisp visualization of critical data. Its high-brightness panel delivers 500 nits by default, with an optional upgrade to 1000 nits for enhanced readability in direct sunlight or on exposed ship bridges.
Marine-Grade Durability
The IP66-rated front panel resists water jets, dust, and harsh maritime conditions. The fanless aluminum chassis minimizes internal dust accumulation and lowers maintenance requirements. A resistive touchscreen ensures precise operation even when using gloves or in humid and vibrating environments.
Extended Connectivity and Advanced Features
Compatible with standard video inputs including VGA, DVI-D, composite, and S-Video, the 60945-DISP12 offers flexible integration. It supports Picture-in-Picture (PIP) functionality, enabling the simultaneous display of two video sources. A front panel dimmer knob allows full brightness adjustment from 0 to 100%, essential for night-time operation and ECDIS compliance.
Power Supply Designed for Onboard Systems
The monitor operates on an isolated 24V DC input, with a wide input voltage range of 9 to 36V DC, making it easy to integrate into all types of onboard electrical systems, even those with variable power levels.
Typical Applications
Marine navigation systems
Ship control consoles
Marine radar and electronic chart systems
Offshore control room displays
Installations requiring IEC 60945 certified equipment
Technical Specifications
| Item | Specification |
|---|---|
| Model | 60945-DISP12 |
| Screen Size | 12.1″ – 245.76 × 184.32 mm |
| Aspect Ratio / Resolution | 4:3 – 1024 × 768 pixels |
| Brightness | 500 nits (optional 1000 nits) |
| Contrast Ratio | 1000:1 |
| Colors | 16.2 million |
| Viewing Angles | H: 89°/89° – V: 89°/89° |
| Touch Technology | Resistive (supports glove operation) |
| Screen Options | Resistive touch film / Non-touch AR anti-glare glass |
| Protection Rating | IP66 (front), IP54 (rear) |
| Chassis | Metal with reinforced aluminum front – fanless |
| Mounting | Panel mount or external VESA bracket |
| Operating Temperature | –15 °C to +55 °C |
| Humidity | 5%–95% RH (non-condensing) |
| Shock Resistance | 15 G (11 ms) |
| Vibration Resistance | 0.7 g – DNVGL-CG-0339 Class A compliant |
| Video Inputs | 1× VGA, 1× DVI‑D, 1× Composite (RCA), 1× S‑Video |
| User Controls | Front on/off button, front OSD, 0–100% brightness knob |
| Additional Ports | 1× RS‑232 for remote control, 1× RS‑232/USB for touchscreen |
| Power Input | Isolated 24 V DC (input range: 9–36 V DC) |
| Power Consumption | 35 W (typical) |
| PIP Display | Picture-in-Picture supported |
| Status LED | Power indicator |
| Included Accessories | DVI‑D cable, VGA cable, RS‑232 for touch, RS‑232 for remote, S‑Video, composite, user manual |
| Certifications | CE, FCC |
