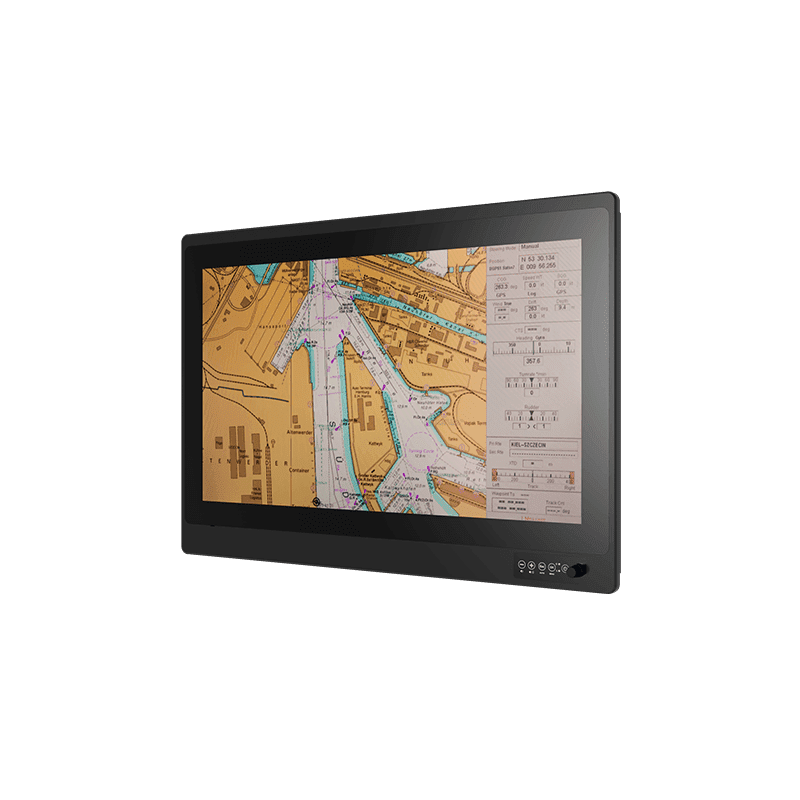

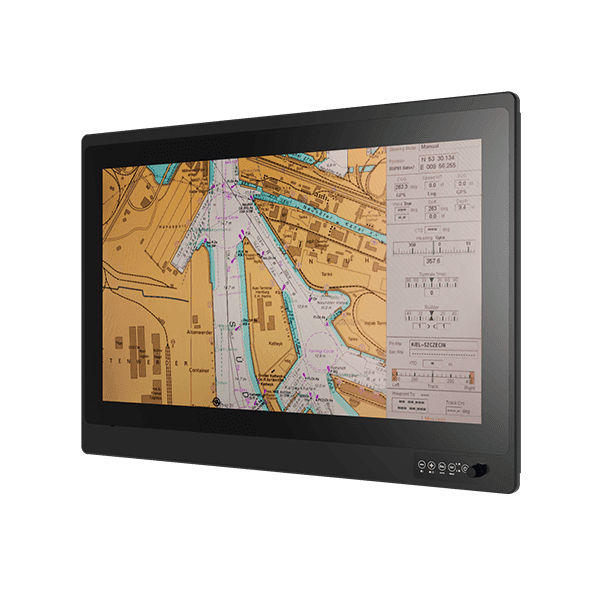

60945-DISP24 Marine Vessel Display unit 24" Full-HD
New product
24″ Marine Display Unit - Vessels
- In compliance and certified according to major maritime standards: IEC 60945, DNVGL, and IACS E10
- Available in two configurations: with projected capacitive multitouch panel for direct interaction, or with a protective non-touch glass front, depending on specific application requirements
- Native brightness of 300 cd/m²
- Built to withstand vibrations, temperature fluctuations, and ambient humidity
- IP66-rated front panel, offering protection against dust and water splashes
- 24 VDC power input for onboard electrical integration
- VGA, DVI, and AV video inputs ensure compatibility with a wide range of existing systems and devices
- Ideal for navigation bridges, pilothouses, and marine control centers, where reliability, durability, and compliance with industry standards are critical
Marine Monitor Full-HD 24" for Onboard Bridge Systems
High-Performance Display for Maritime Navigation
The 60945-DISP24 monitor features a 24-inch TFT LCD panel with an ultra-high-definition 1920x1080 resolution, delivering outstanding image clarity. Its 300-nit brightness ensures good visibility, while a high contrast ratio of 5000:1 and wide viewing angles of 89° in all directions provide optimal readability in demanding environments.
Engineered for the Maritime Environment
This display is specifically built for harsh marine conditions. The robust housing, made of anodized aluminum and steel, is fanless to minimize dust ingress and reduce maintenance needs. The front panel is IP66-rated, offering full protection against water splashes, humidity, and salt fog. The projected capacitive touchscreen ensures responsive and comfortable use, even in operational settings.
Multi-Source Video Inputs and IEC-60945 Compliance Features
The 60945-DISP24 supports a wide range of video inputs: VGA, DVI-D, composite and S-Video. A front rotary knob enables precise and smooth adjustment of screen brightness from 0 to 100%, making it ideal for night navigation where brightness control is critical.
Power System for Naval Integration
Designed for electrical systems found onboard ships, the monitor operates with an isolated 24 VDC input, and supports a voltage range from 9 to 36 VDC, ensuring safe and stable integration into marine power systems.
International Maritime Standards
The 60945-DISP24 is compliant and certified with IEC 60945 (4th edition) and meets the DNVGL-CG-0339 and IACS-E10 requirements. This makes it a reliable and compliant solution for demanding marine operations and mission-critical applications.
Applications
Integration into maritime navigation consoles
Bridge and onboard control stations
Display of radar and electronic chart systems
Graphical interfaces for onboard automation systems
Use in offshore control and monitoring centers
Technical Specifications
| Feature | Specification |
|---|---|
| Model | 60945-DISP24 |
| Screen Size | 24″ – 531.36 × 298.90 mm |
| Aspect Ratio / Resolution | 16:9 – 1920 × 1080 pixels FullHD |
| Brightness | 300 nits |
| Contrast Ratio | 5000:1 |
| Color Depth | 16.7M colors |
| Viewing Angles | H: 89° / 89°, V: 89° / 89° |
| Touch Technology | Projected Capacitive |
| Glass / Screen Options | Capacitive touchscreen glass AR anti-glare glass (non-touch) |
| Front Protection | IP66 (front), IP54 (rear) |
| Enclosure | Metal housing with reinforced aluminum front – fanless design |
| Mounting | Panel mount or external mount via VESA pattern |
| Operating Temp. | –15 °C to +55 °C |
| Humidity | 5%–95% (non-condensing) |
| Shock Resistance | 15 G (11 ms pulse) |
| Vibration Resistance | 0.7 g compliant with DNVGL-CG-0339 Class A |
| Video Inputs | 1× VGA, 1× DVI-D, 1 x Composite, 1 x S-Video |
| User Controls | Front power button, front OSD controls, 0–100% brightness knob |
| Additional Ports | 1× RS-232 (remote control), 1× USB (touchscreen) |
| Power Input | Isolated 24 VDC (input range: 9–36 VDC) |
| Power Consumption | 50 W typical |
| Status Indicators | Power status LED |
| Included Accessories | 12× mounting clips 230VAC/12VDC power supply Cables: VGA, DVI, S-Video, Composite, RS232, USB |
| Certifications | CE, FCC, DNV-CG-0339, IEC60945 4th, IACS E10 |
