ECHO10 ECHO20 Covert Pan Tilt Zoom 10X 30X Platform
New product

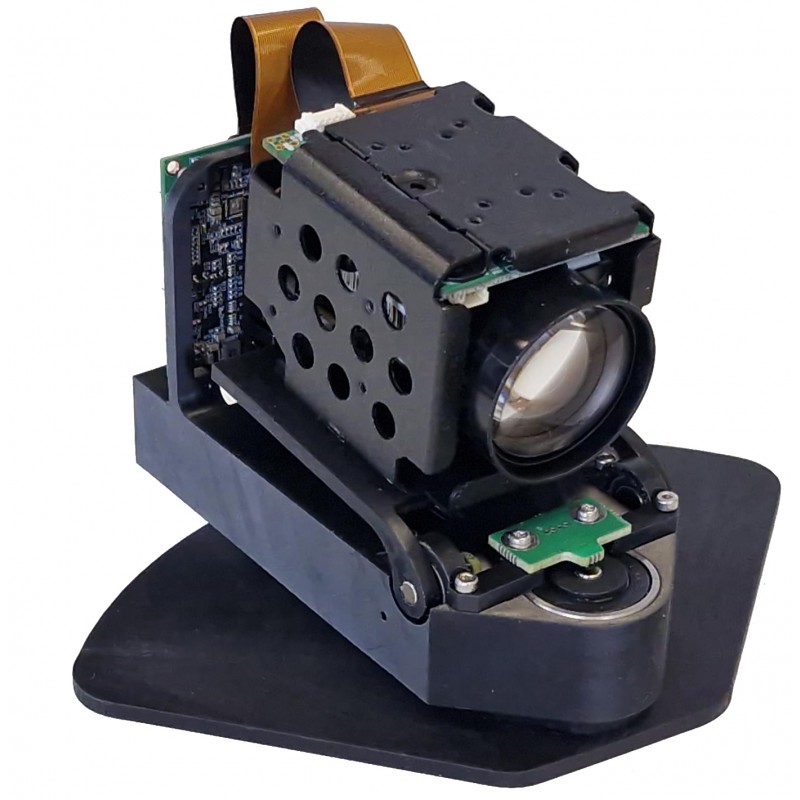

ECHO Covert Pan Tilt Zoom Platform, Front pivot camera ONVIF
The ECHO Covert Pan Tilt Zoom camera is a small size PT unit for integrations
This compact platform is declined with 2 versions od modules cameras 10X & 30X optical.
Easy to integrate with existing systems.
ECHO Covert Pan Tilt Zoom Platform | ||
MODEL | ECHO10 | ECHO30 |
Sensor | 1/3” SONY CMOS IMX291 | ½.8” SONY CMOS |
Resolution | 1920x1080p | |
Frame rate | 30 | 60 |
Zoom | 10X Optical | 30X Optical |
Lens | 5.1-51mm | 5.2mm ~ 156mm |
Maximum aperture ratio | F1.6~1.8F | F1.3~ F4.8 |
Angle of view | Horizontal 54.0°(W)~4.9°(T), Vertical 31.0°(W)~4.0(T)° | Horizontal 58.1°(wide) ~ 1.94°(tele) |
Min illumination BW | 0.01 Lux | 0.00015620 |
Image stabilization | Digital | Digital EIS |
WDR | 120dB | |
Image rotation | Horizontal (Mirror), Vertical (Flip) | |
Video analytics | Motion detection, object detection, face detection, intrusion detection, line counting, directional detection, defocus detection, object blurring | |
Streaming | Primary: H.264 / H.265 Secondary x 2: H.264 / H.265 / MJPEG | |
Presets | 5 | |
Interface | Ethernet 10/100 base-T (RJ-45) | |
Pan Angle | 90° | |
Tilt Angle | 25° | |
Ethernet connector | RJ45 + Jack Alim 5.1 | |
Alimentation | 12V DC | |
Consumption | 5W | 9W Max |
Working temperature | -10~50°C | |
Warranty | 2 Years | |
Made | Made in France | |
NDAA | Compliant | |
