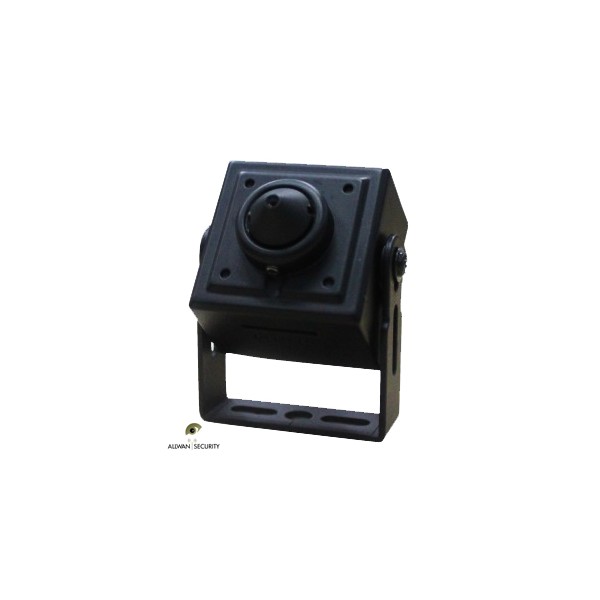

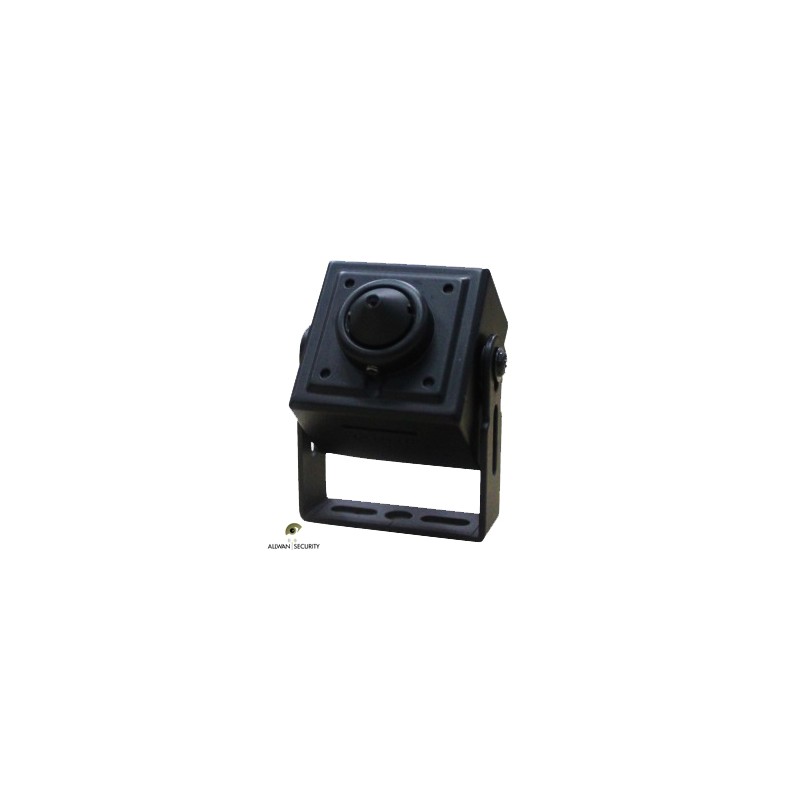

PCHD6062 Mini caméra pinhole 2MP 0.005 Lux Micro-SD
New product
● 1/2.8" SONY EXMOR Progressive Scan CMOS SENSOR
● 2.0 Megapixel, 30fps@1920*1080
● 3.7mm Pinhole lens, 0.005lux, 140dB TWDR
● Support ONVIF Profile S, FTP, RTSP, UPnP etc.
● Support Dual-Stream, Mobile Surveillance, Heartbeat Mechanism, 3D-DNR, Defogging, D-WDR, Lens Correction, Corridor Monitoring etc.
● Audio I/O, Dual Alarm In, Single Alarm Out, SD card slot, RS485、RJ45, CVBS, DC 12V
| Hardware | ||
| SOC | Hi3516D | |
| Image Sensor | 1/2.8" SONY EXMOR Progressive Scan CMOS SENSOR | |
| Effective Pixels | 1920(H)×1080(V) | |
| Interface | ||
| Optical lens | Interfaces | Pinhole |
| Iris | Fixed Iris | |
| Focal Length | 3.7mm(Pinhole) | |
| Audio Talkback | 1ch MIC external access, 3.5mm AV interface | |
| Audio Output | 1ch speaker output, 3.5mm AV interface | |
| Network Port | Lan | 10/100M BASE-TX, RJ-45 connector |
| RS485 | 1*RS485 interface | |
| Alarm I/O | 2ch alarm input, 1ch alarm output | |
| Micro SD | Support up to 32G | |
| Audio&Video encoding | ||
| Video Compression | H.265/H.264/MJPEG | |
| H.265 encoding: Main Profile | ||
| H.264 encoding: High Profile/Main Profile/Baseline | ||
| Resolution | Main Stream | 1920*1080/1280*720; 1~30fps(adjustable) |
| Sub Stream | 704*576/640*480/640*352/320*240; 1~30fps(adjustable) | |
| Video Bitrate | 30Kbps～16Mbps, Supports CBR/VBR | |
| OSD Settings | Text overlay supported like title, time, date, week, bitrate and etc. | |
| OSD location is adjustable | ||
| Privacy Mask | 4 configurable regions | |
| Image Orientation | Image Flip and Mirror | |
| Auto Image Control Functions | Auto Exposure Control (AEC); Auto White Blance (AWB); Auto Gain Control(AGC) | |
| Image Controls | Saturation, Brightness, Contrast, Hue, Sharpness, Gamma, D-WDR | |
| Others | Anti Fogging/Anti Trembling/IR Detection/IRIS/ | |
| Audio Compression | G.711A/G.711U/G.726 | |
| Two Way Audio | Support | |
| Data transmission and storage | ||
| Data storage | Video and Image | |
| Recording | Auto recording and manual recording (motion & sensor alarm recording, scheduled recording) | |
| Alarm output | FTP, E-mail | |
| Network protocols | TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP | |
| Wireless protocols(-W) | ------------------------------------------------- | |
| ONVIF Protocols | PROFILE S | |
| Remote View | PC | IE 6.0 above, Firefox, Google etc. |
| Mobile Phone | ------------------------------------------------- | |
| User Access | Maximum 5 users | |
| General Parameters | ||
| Environmental Casing | Aluminum Alloy Housing, Indoor Applicable | |
| Installation | Ceiling Mounted & Wall Mounted | |
| Operating Temperature | -10 °C ~ 50 °C | |
| Operating Humidity | 0% -85% RH | |
| Power | DC12V ±10% | |
| POE | ------------------------------------------------- | |
| Power Consumption | <3.5W | |
| Dimension | L43mm*W31mm*H29mm | |
| Weight | 175g | |
