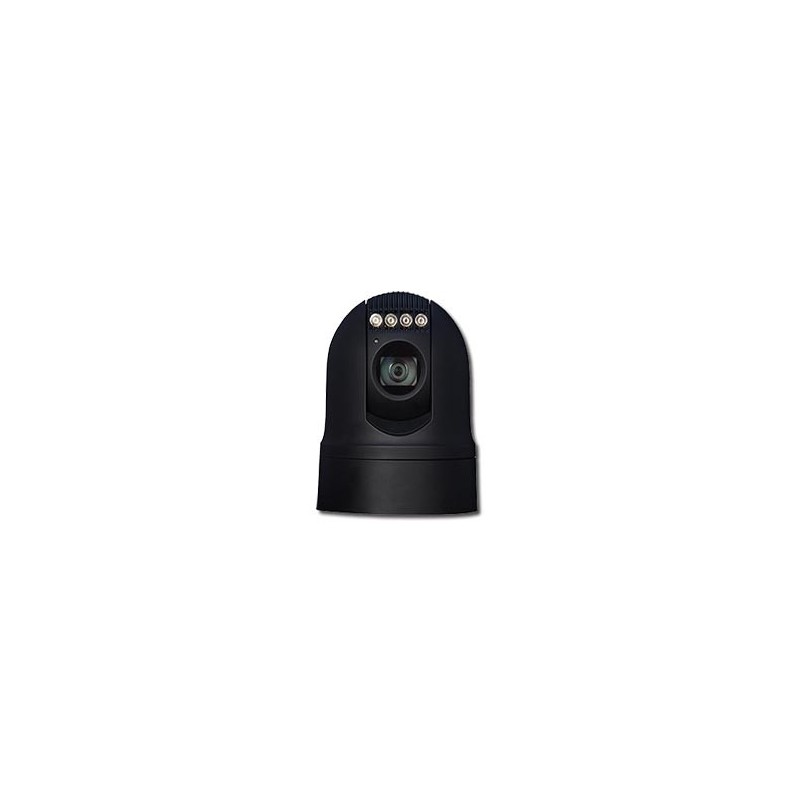

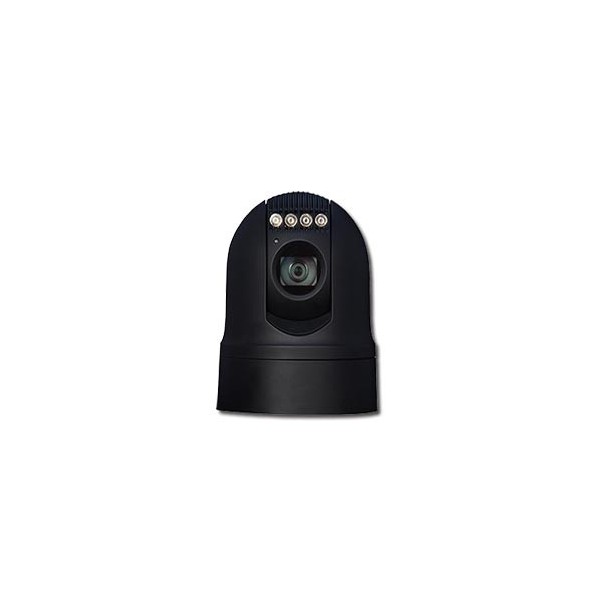

VH36 - Rugged analog CVBS PTZ camera with leds
New product
Motorized PTZ dome camera 360 ° enlesss rotation with built-in white or IR led illuminator
Lightning range 60m, with bluit-in image stabilizer
Description
VH36WL: White LEDs
VH36IR: IR LEDs 850nm
This camera is specially designed for factory and industrial environments. It can rotate horizontally 360° continuously without a stop and vertically from -15° to +90°. It is equipped with a high-resolution day/night zoom module with a 36x optical zoom and 12x digital zoom.
You can choose between white or infrared lighting (to be specified at the time of ordering) to uniformly illuminate the surveillance area. In case of vibrations, the electronic image stabilizer can be activated, and the image quality is further improved with the optional anti-vibration mount.
Technical specifications
White or InfraRed leds illuminator
360° endless rotation
Ultra precise positioning
Optical zoom 36X
Day/Night High resolution 550 L TV 0.01 Lux
Flip and Mirror
Pelco-D RS-485 interface
Anti-corrosion IP66 waterproof housing
Magnetic base for vehicle mounting
Very robust with integrated electronic image stabilization (DIS) and WDR
Thermal imaging sensor also available
| Camera type | PTZ motorized |
| Material | ABS |
| Resolution | 720x576 |
| Ingress Protection | IP64 |
| Ingress Protection | IP66 |
| Ingress Protection | IP65 |
| Cable length | 2m |
| Built-in illuminator | White Leds |
| Built-in illuminator | IR Leds |
| Video Signal | Analogue CVBS |
| Power Supply | 12/24VDC |
