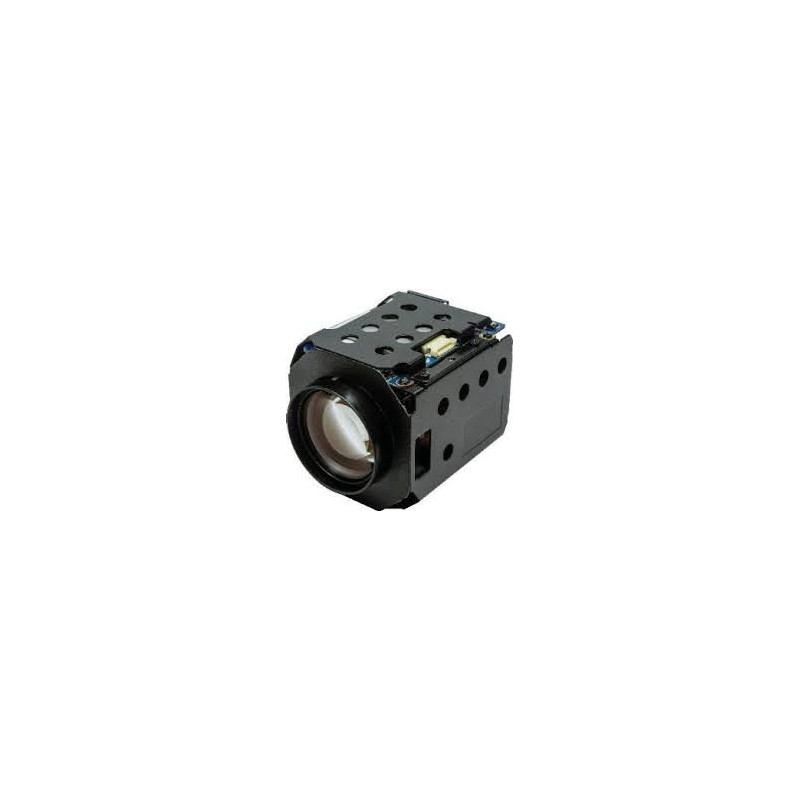

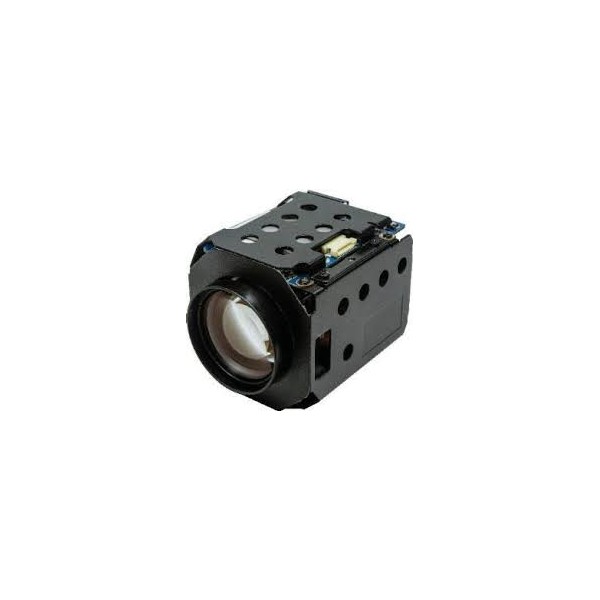

AL-SM8410 Module camera Zoom IP10X 4 Megapixels Low Light
New product
Image Sensor 1/2.8” 2.13MP Sony STARVIS
• 1080p / 720p 60/ 50/ 30/ 25fps
• Auto Focus Zoom
• 10x Optical Zoom, 32x Digital Zoom
• 5 Zoom Presets
• Real Time True WDR
• Digital Noise Reduction
• Extended SDI
▪ Transmissions to 500m (1650 ft)
▪ Full HD digital format using
standard cabling - coax, cat5/6
▪ Latency <1 fps.
▪ Power & control over same cable
• LVDS, EX-SDI
• CVBS analog video output
Technical Specifications :
Image Sensor 1/2.8” SONY STARVIS sensor IMX462LQR-C
Video Resolution 1920 (H) x 1080 (V) 2.07MP
Scan Mode Progressive
Sync. System Internal
Resolution Digital 1080p, 720p (60/ 50/ 30/ 25 fps)
Analog* >700 TVL (NTSC/PAL)
Min.
Illumination
1/30s Color: 0.003 lux, B&W: 0.0004 lux
DSS 1/8s Color: 0.00075 lux, B&W: 0.0001 lux
Video Output HD: LVDS / EX-SDI
Analog SD: CVBS (without WDR)
Signal to Noise Ratio 50dB (AGC off)
Communication Visca / Pelco-D / Pelco-P
Power Supply 9VDC to 15VDC
Current Consumption 400mA
Parameter Contols :
Focus Auto/ Trigger/ Manual
Distance Presets 0.1m/ 1.0m/ 3.0m/ 5.0m/ 10.0m
Zoom Optical 10x
Digital Off/ up to 32x
Presets 5
Exposure Auto/ Iris Priority/ Shutter Priority /Manual
Gain Control (AGC) Off/ On
Shutter Speed Auto 1/30 (NTSC), 1/25 (PAL)-1/30,000 sec.
Iris 0 ~ 20 steps
Digital Slow Shutter Off / x2 / x4 (x8 60 or 50 fps mode only)
Brightness 0 ~ 20 steps
WDR / BLC Off/ WDR/ BLC
Day & Night (Passive) Auto/Day (color)/ Night (B/W)/ External Input
White Balance Auto/ Push to Set/ Manual/ Indoor/ Outdoor
HLC Off/ On/ Night Only
DNR Auto/ Off/ Low/ Middle/ High
Mirror/Flip Off/ H (mirror)/ V (flip)/ H&V
Edge Enhancement 0 ~ 10 steps
Adaptive Contrast Enhancer Off/ Low/ Middle/ High
Defog Off/ On (Auto/ Manual)
Privacy Mask Off/ 24 Positions
Motion Detection Off/ 3 Positions
Pixel Detection Off/ On
Environmental:
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature -20°C ~ 60°C (04°F ~ 140°F)
Mechanical:
Dimensions WxHxD 43mm x 44mm x 62.4mm (1.69” x 1.73” x 2.46”)
Weight 112g (3.95oz)
Lens:
Lens Type 10x Day/Night (passive) Zoom Lens
Zoom Ratio Optical 10x, Digital 32x
Focal Length f = 5.1mm ~ 51mm
Aperture Ratio F1.6 (Wide) ~ F1.8 (Tele)
Field of View
(DxHxV)
Wide 64° 57° 34°
Tele 7.1° 6.2° 3.5
