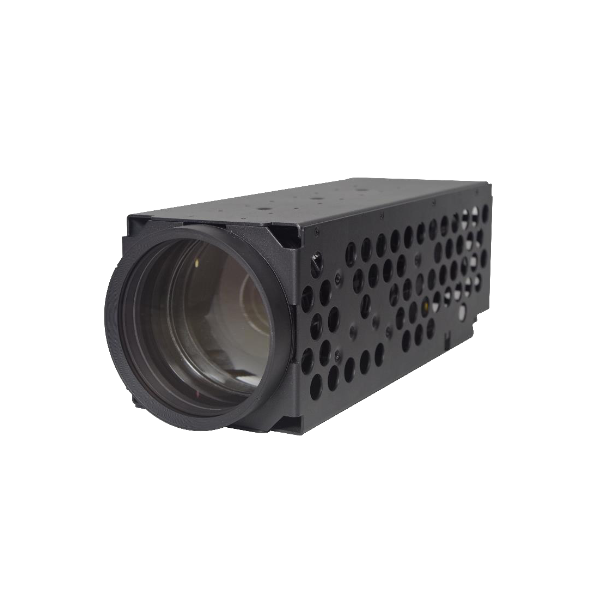

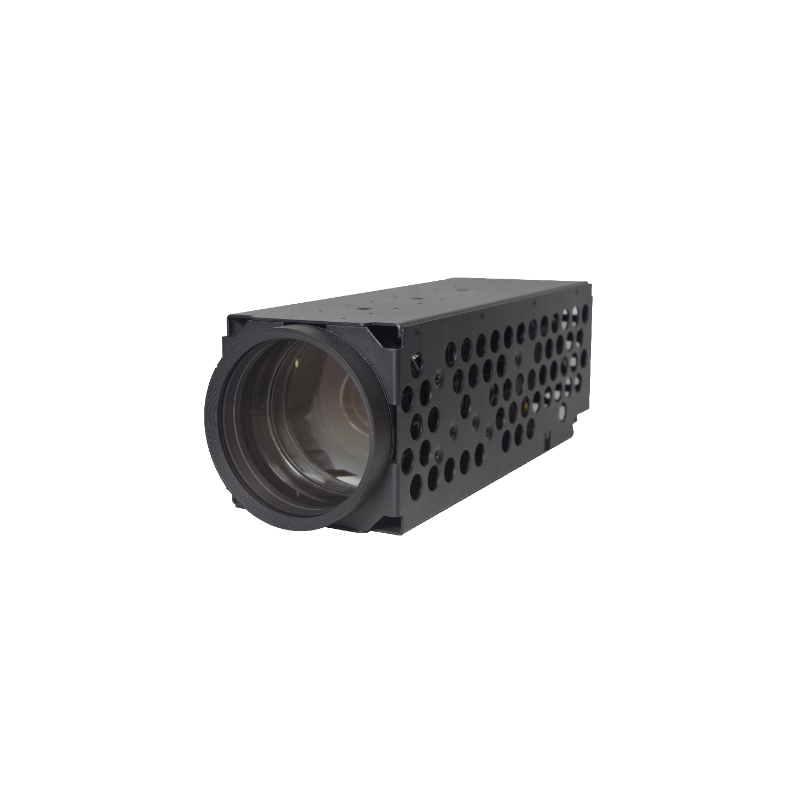

IMX990-17512 HD Module camera motorisé NIR SWIR SONY IMX990 30X
New product
- 1/2” (1/4”) Sony InGaAs Global Shutter SWIR image sensor IMX990(IMX991)
- Powerful 30x optical zoom (17~512mm)
- Max. 1.3MP (1280x1024) Resolution
- Support ICR switch for Wideband and Narrowband
- Support EIS, Electronic Defog, Heat Haze reduce function
- Support 8x digital zoom
- Support network and LVDS dual output
- Support LVDS digital video output synchronously, could convert to HD-SDI output.
Module camera VIS SWIR optical zoom motorized 30x
Image SensorIMX990 1/2" SONY InGaAs GlobalShutter SWIR
Pixels 1.34MP
Taille Pixels 5µm
Response wavelength 1000~1700nm
Focal 17~512mm
Aperture F2.8~F5.5
Protocols Onvif, HTTP, HTTPS, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP
Video Bit Rate 32kbps~16Mbps
LVDS Video 25/30/50/60fps@2MP (1920×1080)
Shutter Speed 1/1~1/30000s
Storage TF card (256 GB), FTP, NAS
Operating Conditions -30~+60°C/20%~80%RH
Alimentation 12V DC
Power Consumption Avg: 6W; Max: 11W
Dimensions 109x109x320mm
