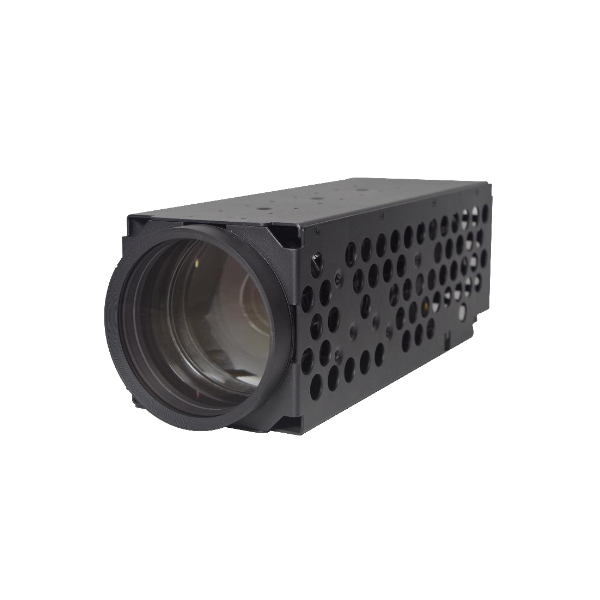

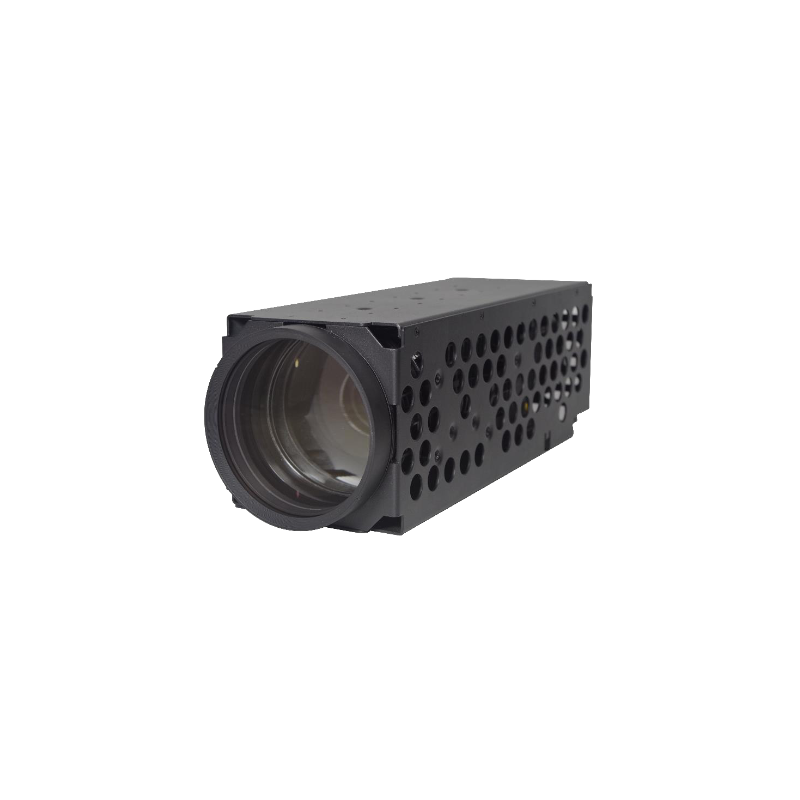

Module caméra VIS SWIR 20X optical
Image SensorIMX990 1/2" SONY InGaAs GlobalShutter SWIR
Pixels 1.34MP
Taille Pixels 5µm
Response wavelength 1000~1700nm
Focal 17~340mm
Aperture F2.8~F5.5
Protocols Onvif, HTTP, HTTPS, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP
Video Bit Rate 32kbps~16Mbps
LVDS Video 25/30/50/60fps@2MP (1920×1080)
Shutter Speed 1/1~1/30000s
Storage TF card (256 GB), FTP, NAS
Operating Conditions -30~+60°C/20%~80%RH
Alimentation 12V DC
Power Consumption Avg: 6W; Max: 11W
Dimensions 109x109x320mm
