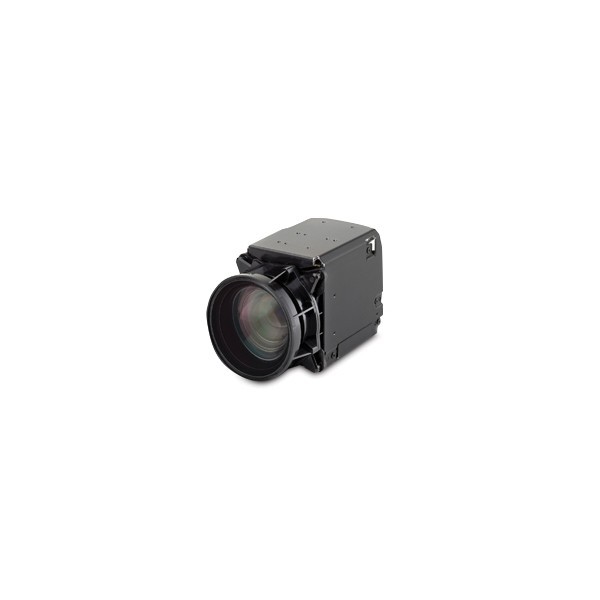

Sony FCB-ER8300 - 4K camera block
New product
Sony FCB-ER8300 - 4K camera block
Video format: 4K, 1080p, 720p, 480p
Optical zoom (objective): 12x
Digital zoom: 12x
Super Resolution Zoom: 20x
Field of view: horizontal at 70.7 degrees
Visca control protocol
Sony's 4K technology has created the world's first 4K autofocus zoom camera block for the industrial market.
The FCB-ER8300 offers true 4K resolution at 30 fps and includes a 20x zoom capability with Sony's advanced zoom technology.
Powered by a single image processor, the FCB-ER8300 can focus on the smallest details, while the 70-degree HFOV allows for greater situational awareness over large areas. Perfect for security, surveillance and other industrial applications. Compact form factor and low power consumption allow easy integration into Pan, Tilt and Zoom camera systems
Characteristics
Sensor: CMOS Exmor R type 1 / 2,3
Resolution: 8.93 MP
Video format: 4K, 1080p, 720p, 480p
Optical zoom (objective): 12x
Digital zoom: 12x
Super Resolution Zoom: 20x
Video Output: HDMI 1.4b
WDR
FOV: Large 65 ° C
Advanced image stabilization
Noise reduction
Visca control protocol
Dimensions (WxHxD): 60 x 60 x 105mm
weight = 385g
Further information
4K resolution at 30fps
Real 4K resolution (3840 x 2160 pixels) at 30 frames per second. The FCB-ER8300 can give you 4 times the resolution of a Full HD camera solution.
Field of view: Horizontal at 70.7 degrees at the wide end.
The FCB-ER8300 provides a better understanding of the situation and a coverage area.
4K resolution is maintained up to 20x zoom. Once the optical zoom range is reached, the super-resolution zoom is implemented to ensure that the 4K zoom resolution is maintained at 20x. Unlike digital zoom, this does not reduce the number of pixels in the image, which degrades the resolution.
Low power consumption: (3.7 w with active zoom / focus).
